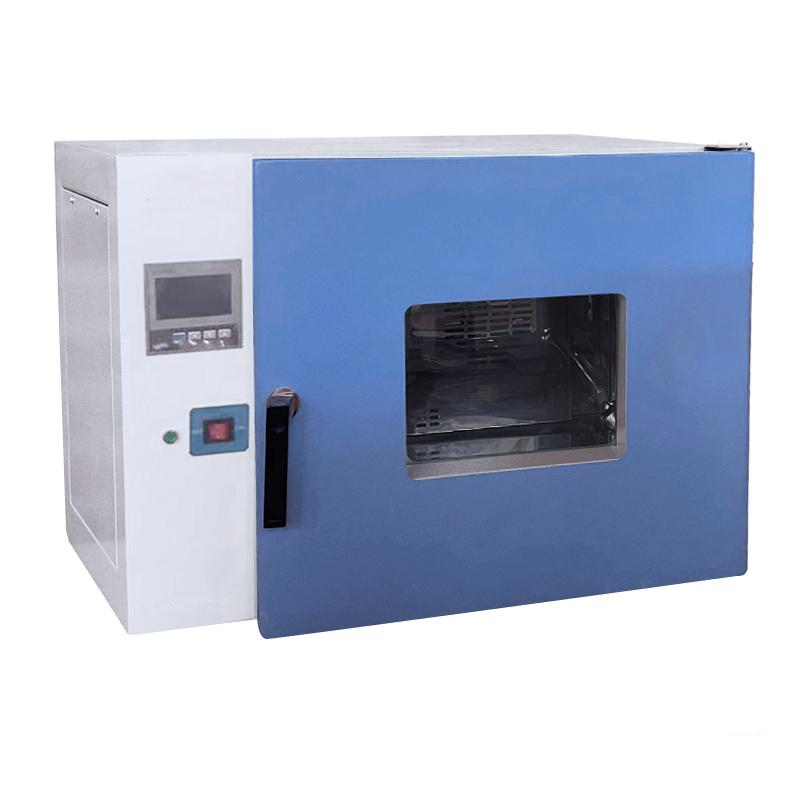

BOZHEN DHG-9205A Desktop Forced Air Drying Oven
Temperature range RT + 10~300 ℃, Temperature Fluctuation +/- 0.5 ℃, Temperature resolution 0.1 ℃, Interior size 600 × 550 × 600mm, shelf (standard) 2pcs, Timer Range 1~ 9999min.
BoZhen-
YIHENG DZF-6500 Vertical Vacuum Oven (microcomputer with timing)
$ 7677.00 -
Kenton XCT-0AS Blast high temperature Drying Oven
$ 1003.00 -
YIHENG BPZ-6210-2 Vacuum Oven
$ 7592.00 -
YIHENG BPZ-6213LCB Vacuum Oven imported Vacuumpump
$ 6727.00 -
BENTING CBHL-45B electric thermostatic Drying Oven 300 ℃/42L
Login
Overview of use
Products produced using professional CNC processing equipment are used for drying, baking, wax melting, and sterilization by industrial and mining enterprises, laboratories, scientific research units, etc.
Features
1. The inside of the box is made of brushed stainless steel argon arc welding, and the outside of the box is made of high-quality steel plates, with beautiful and novel appearance.
2. Adopt a microcomputer temperature controller with temperature control protection and digital display, with timing function, accurate and reliable temperature control (intelligent LCD program temperature controller optional)
3. The hot air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct. The temperature inside the workroom is uniform.
4. Independent temperature limit alarm, automatic interruption when the temperature exceeds the limit, ensuring the safety of the experiment without accidents (optional).
5. It has an RS485 interface that can be connected to the Recorder and computer, and can record changes in temperature and humidity parameters (optional).
Series selection
model | DHG-9025A | DHG-9055A | DHG-9125A | DHG-9205A |
input power | 1050W | 1050W | 1740W | 2100W |
Voltage | 220V 50HZ | |||
Temperature control range | RT+20~300℃ | |||
temperature resolution fluctuation | 0.1℃/0.5℃ | |||
Working temperature | 5~40℃ | |||
Inner tank size (mm) | 300*300*270 | 420*35*350 | 550*350*550 | 600*550*600 |
Overall dimensions (mm) | 585*480*450 | 705*530*530 | 835*530*730 | 885*730*780 |
Partition | 2 pieces | 2 pieces | 2 pieces | 2 pieces |
studio materials | Stainless steel | |||
Timing range | 1ï½9999min | |||
model | DHG-9035A | DHG-9075A | DHG-9145A | DHG-9245A |
input power | 1050W | 1500W | 2000W | 2500W |
Voltage | 220V 50HZ | |||
Temperature control range | RT+20~300℃ | |||
temperature resolution fluctuation | 0.1℃/±0.5℃ | |||
Working temperature | 5~40℃ | |||
Inner tank size (mm) | 340*325*325 | 450*400*450 | 550*450*550 | 600*500*750 |
Overall dimensions (mm) | 625*510*505 | 735*585*630 | 835*635*730 | 885*680*930 |
Partition | 2 pieces | 2 pieces | 2 pieces | 2 pieces |
studio materials | Stainless steel | |||
Timing range | 1ï½9999min | |||
BoZhen DHG-9205A Desktop Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Interior size | 600*550*600mm |
| Shelf (std.) | 2pcs |
| Timer | 1~9999min |
| Power | 220V 50HZ |
| Input Power | 2100W |
| Environmental temperature | RT+5~40℃ |
| Dimensions | 885*730*780mm |
BoZhen DHG-9205A Desktop Forced Air Drying Oven Packing list
Machine X1, Shelf X2, Operation Manual X1, Warranty Card X1, Certificate of Conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
