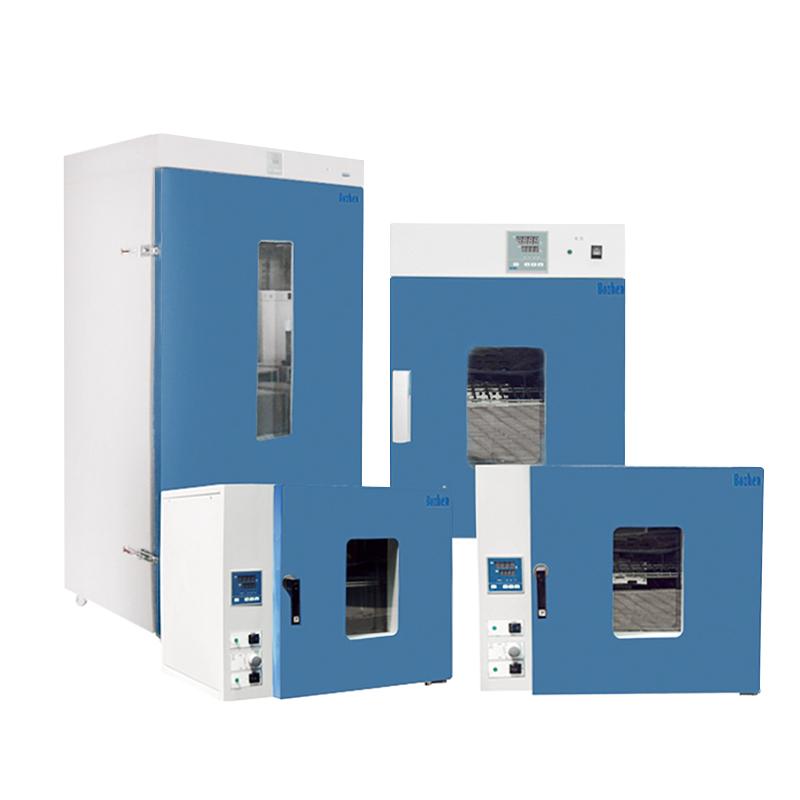

BOZHEN DHG-9240A vertical Forced Air Drying Oven
Temperature range RT + 10~250 ℃, Temperature Fluctuation +/- 0.5 ℃, Temperature resolution 0.1 ℃, Interior size 500 × 600 × 750mm, shelf (standard) 2pcs, Timer Range 1~ 9999min.
BoZhen-
BOZHEN DZF-6021 Vacuum Oven 250 ℃/cold rolled sheet
$ 406.00 -
BENTING CBHL-30B electric thermostatic Drying Oven 300 ℃/30L oven
Login -
HENGLI KZ-50 LCD Vacuum Oven pointer display, manual control
$ 1423.00 -
BENTING CBHL-125B electric thermostatic Drying Oven 300 ℃/125L
Login -
YIHENG BPZ-6123LC Vacuum Oven
$ 4289.00
Overview
The products produced by professional numerical control processing equipment are used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.
Features
1. The inside of the box is made of brushed stainless steel argon arc welding, and the outside of the box is made of high-quality steel plate, which is beautiful and novel.
2. Adopt a microcomputer temperature controller with temperature control protection and digital display, with timing function, accurate and reliable temperature control (intelligent LCD program temperature controller is optional)
3. The hot air circulation system is composed of a fan that can operate continuously at high temperature and a suitable air duct. The temperature in the working room is uniform.
4. Independent temperature limit alarm, automatically interrupted when the temperature exceeds the limit, to ensure the safety of the experiment without accidents (optional).
5. With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature and humidity parameters (optional).
Series
model | DHG-9030A | DHG-9070A | DHG-9140A | DHG-9240A |
Voltage | 220V 50HZ | |||
Control range | RT+10~250℃ | |||
temperature resolution | ±0.1℃ | |||
temperature fluctuation | ±0.5℃ | |||
Working temperature | 5~40℃ | |||
input power | 750W | 1050W | 1500W | 2100W |
Inner tank size (mm) | 340*320*320 | 400*350*500 | 450*550*550 | 500*600*750 |
Dimensions (mm) | 490*500*625 | 545*530*805 | 595*730*855 | 645*780*1055 |
Carrier (standard) | 2 blocks | |||
Timer Range | 1~9999min | |||
model | DHG-9420A | DHG-9620A | DHG-9640A | DHG-9920A |
Voltage | 380V 50HZ | |||
Control range | RT+10~250℃ | |||
temperature resolution | ±0.1℃ | |||
temperature fluctuation | ±0.5℃ | |||
Working temperature | 5~40℃ | |||
input power | 4000W | 4500W | 4500W | 6000W |
Inner tank size (mm) | 600*550*1300 | 800*600*1300 | 800*800*1000 | 1000*600*1600 |
Dimensions (mm) | 745*730*1670 | 945*780*1670 | 945*1000*1370 | 1145*780*1970 |
Carrier (standard) | 3 pieces | 4 pieces | 4 pieces | 4 pieces |
Timer Range | 1~9999min | |||
BoZhen DHG-9240A Vertical Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Interior size | 500*600*750mm |
| Shelf (std.) | 2pcs |
| Timer | 1~9999min |
| Power | 220V 50HZ |
| Input Power | 2100W |
| Environmental temperature | RT+5~40℃ |
| Dimensions | 645*780*1055mm |
BoZhen DHG-9240A Vertical Forced Air Drying Oven Packing list
Machine X1, Shelf X2, Operation Manual X1, Warranty Card X1, Certificate of Conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
