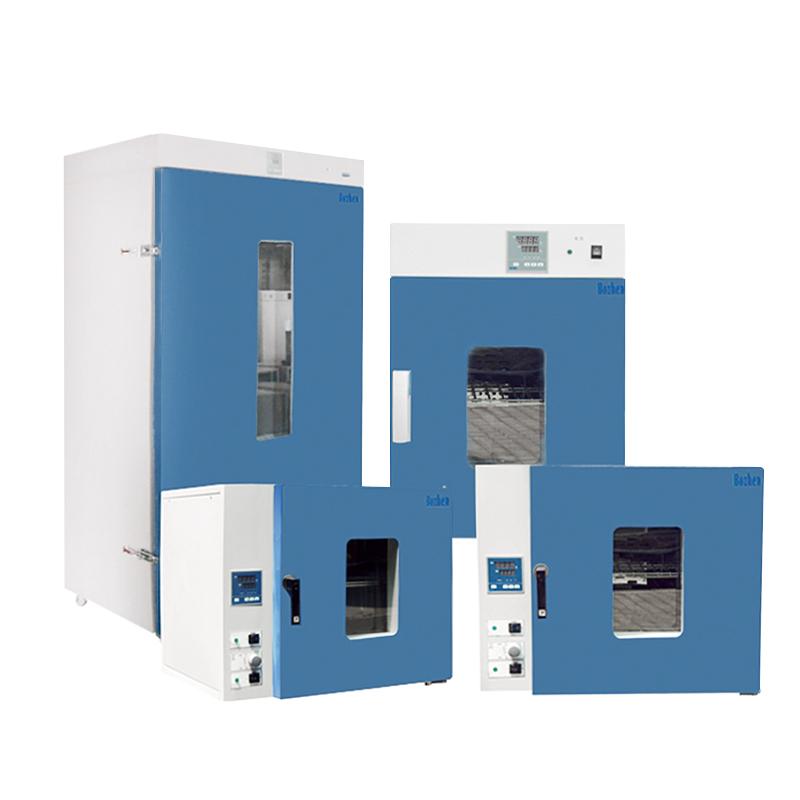

BOZHEN DHG-9620A vertical Forced Air Drying Oven
Temperature range RT + 10~250 ℃, Temperature Fluctuation +/- 0.5 ℃, Temperature resolution 0.1 ℃, Interior size 800 × 600 × 1300mm, shelf (standard) 4pcs, Timer Range 1~ 9999min.
BoZhen-
BOZHEN DHG-9245A Desktop Forced Air Drying Oven
$ 764.00 -
SANFA DHG-9101-1 Electric thermostatic Drying Oven 70L oven
$ 388.00 -
Kenton DZF-6050S constant temperature vacuum Drying Oven, stainless steel liner
$ 834.00 -
YIHENG BPZ-6213B Vacuum oven stainless steel vacuum chamber
$ 5967.00 -
Kenton 101-1 Dial-Type electric Forced Air Drying Oven, galvanized tank inner tank 300 ℃/70L
$ 271.00
Overview of use
Products produced using professional CNC processing equipment are used for drying, baking, wax melting, and sterilization by industrial and mining enterprises, laboratories, scientific research units, etc.
Features
1. The inside of the box is made of brushed stainless steel argon arc welding, and the outside of the box is made of high-quality steel plates, with beautiful and novel appearance.
2. Adopt a microcomputer temperature controller with temperature control protection and digital display, with timing function, accurate and reliable temperature control (intelligent LCD program temperature controller optional)
3. The hot air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct. The temperature inside the workroom is uniform.
4. Independent temperature limit alarm, automatic interruption when the temperature exceeds the limit, ensuring the safety of the experiment without accidents (optional).
5. It has an RS485 interface that can be connected to the Recorder and computer, and can record changes in temperature and humidity parameters (optional).
Series selection
model | DHG-9030A | DHG-9070A | DHG-9140A | DHG-9240A |
Voltage | 220V 50HZ | |||
Control range | RT+10ï½250℃ | |||
Temperature resolution | ±0.1℃ | |||
temperature fluctuation | ±0.5℃ | |||
Working temperature | 5~40℃ | |||
input power | 750W | 1050W | 1500W | 2100W |
Inner tank size (mm) | 340*320*320 | 400*350*500 | 450*550*550 | 500*600*750 |
Overall dimensions (mm) | 490*500*625 | 545*530*805 | 595*730*855 | 645*780*1055 |
Cargo carrier (standard) | 2 pieces | |||
Timing range | 1ï½9999min | |||
model | DHG-9420A | DHG-9620A | DHG-9640A | DHG-9920A |
Voltage | 380V 50HZ | |||
Control range | RT+10ï½250℃ | |||
Temperature resolution | ±0.1℃ | |||
temperature fluctuation | ±0.5℃ | |||
Working temperature | 5~40℃ | |||
input power | 4000W | 4500W | 4500W | 6000W |
Inner tank size (mm) | 600*550*1300 | 800*600*1300 | 800*800*1000 | 1000*600*1600 |
Overall dimensions (mm) | 745*730*1670 | 945*780*1670 | 945*1000*1370 | 1145*780*1970 |
Cargo carrier (standard) | 3 pieces | 4 pieces | 4 pieces | 4 pieces |
Timing range | 1ï½9999min | |||
BoZhen DHG-9620A Vertical Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Interior size | 800*600*1300mm |
| Shelf (std.) | 4pcs |
| Timer | 1~9999min |
| Power | 380V 50HZ |
| Input Power | 4500W |
| Environmental temperature | RT+5~40℃ |
| Dimensions | 945*780*1670mm |
BoZhen DHG-9620A Vertical Forced Air Drying Oven Packing list
Machine X1, Shelf X4, Operation Manual X1, Warranty Card X1, Certificate of Conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
