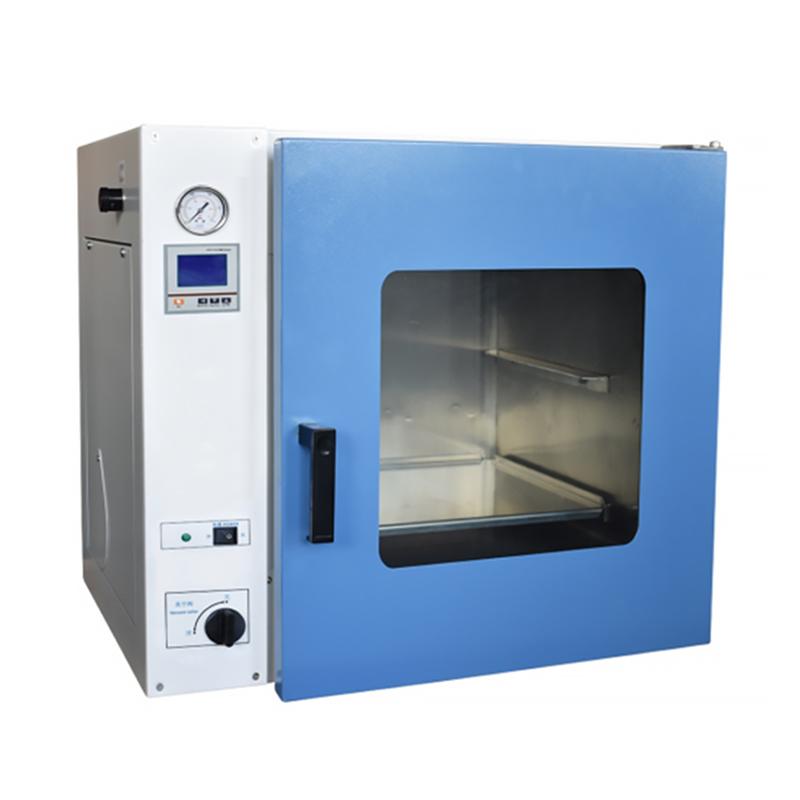

BOZHEN DZF-6052 Vacuum Oven 250 ℃ stainless steel
Temperature range from RT + 10 to 250 ℃ Temperature Fluctuation is only +/- 1 ℃ with high resolution temperature control up to 0.1 ℃. Interior size is 415 * 370 * 345mm with two shelves. Power supply Voltage is 220V 50HZ, working ambient temperature range is RT + 5 to 40 ℃. Dimension is 720 * 520 * 525mm, studio is made of stainless steel, vacuum is 133Pa, suitable for laboratory applications requiring precise temperature control and stable Operating Environment.
BoZhen-
SANFA GRX-30 Hot Air Sterilization Oven (Dry Heat Sterilizer) 35L
$ 462.00 -
MODERNER ZGX-6210 Vacuum Oven temperature control RT + 10~250 ℃
Login -
BOZHEN DGG-9146A vertical Forced Air Drying Oven electric blast oven 136L/300 ℃
$ 647.00 -
HUITAI HTG-9140A vertical blower drying oven imported blower, volume 136L
$ 671.00 -
MODERNER GFX-9030A Forced Air Drying Oven 30L
Login
Overview of use
The vacuum Drying Oven is specially designed for drying heat-sensitive, easily decomposed and easily oxidized substances. It can be filled with inert gas inside, especially some items with complex components, which can also be quickly dried. It is suitable for industrial and mining enterprises, medical schools, and scientific research units in vacuum Dry heat treatment, etc. are carried out under the conditions.
Features
1. Cuboid Studio. The effective volume utilization rate is high, and the microcomputer temperature controller makes the control accurate and reliable.
2.. The tempered, bullet-proof double-layer glass door can be used to observe objects in the studio at a glance, and can be filled with inert gas inside.
3. The tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal ensures high vacuum in the box.
4..The studio is made of fine brushed stainless steel plates to ensure the product is durable.
Series selection
model | DZF-6020 | DZF-6050 | DZF-6090 | DZF-6210 | DZF-6250 |
Voltage | 220V 50HZ | 380V 50HZ | |||
input power | 500W | 1400W | 2400W | 3600W | 4000W |
Control range normal temperature | Rt10~250℃ | ||||
Temperature resolution | 0.1℃ | ||||
Volatility | ±1℃ | ||||
reach vacuum | 133Pa | ||||
Working temperature | +5~40℃ | ||||
Studio size (mm) | 300*300*275 | 415*370*345 | 450*450*450 | 560*640*600 | 700*600*600 |
Overall dimensions (mm) | 585*450*455 | 700*520*525 | 595*600*1245 | 705*790*1395 | 985*750*890 |
shelf | 1 piece | 2 pieces | 2 pieces | 3 pieces | 3 pieces |
studio materials | Stainless steel | ||||
model | DZF-6021 | DZF-6051 | DZF-6052 |
Voltage | 220V 50HZ | ||
input power | 500W | 1400W | normal temperature |
Control range normal temperature | Rt10~250℃ | ||
Temperature resolution | 0.1℃ | ||
Volatility | ±1℃ | ||
reach vacuum | 133Pa | ||
Working temperature | +5~40℃ | ||
Studio size (mm) | 300*300*275 | 415*370*345 | 415*370*345 |
Overall dimensions (mm) | 585*450*455 | 710*560*550 | 720*520*525 |
shelf | 1 piece | 2 pieces | 2 pieces |
studio materials | cold rolled plate | Stainless steel | |
BoZhen DZF-6052 Vacuum OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Interior size | 415*370*345mm |
| Shelf (std.) | 2pcs |
| Power | 220V 50HZ |
| Environmental temperature | RT+5~40℃ |
| Dimensions | 720*520*525mm |
| vacuum | 133Pa |
| Chamber material | stainless steel |
BoZhen DZF-6052 Vacuum Oven Packing list
Host X1, Shelf X2, Operation Manual X1, Warranty Card X1, Certificate of Conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
