QND-1 Tu 1 Viscosity Cup Overview
Yonglida QND-1 Tu 1 Viscosity Cup is a Tu 1 viscometer with a round Water Bath cover, a volume of 50ml, and a bracket. It is made of aluminum. QND-1 Tu 1 Viscosity Cup is designed according to GB/T1723 standard and is used to measure the conditional viscosity value of paint and other related products. The inner diameter of the hole is Φ5.6±0.2mm.
QND-1 Tu 1 Viscosity Cup Measurement Outflow Time and Kinematic Viscosity Conversion
If you need to convert the outflow time (S) into kinematic viscosity centistokes (mm 2 /s), you can refer to the following formula:
t=0.053v+1.0
t——Outflow time (s); v——Kinematic viscosity ( mm 2 /s )

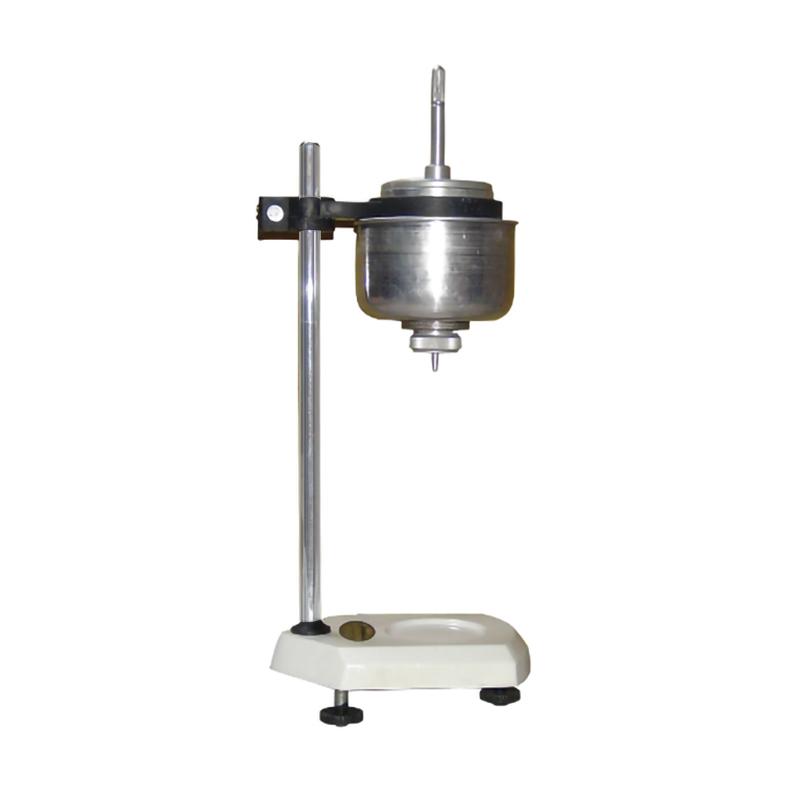

QND-1 Tu 1 Viscosity Cup display
YongLiDa QND-1 ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Flow hole diameter | 5.6mm |
| Flow hole diameter error | ±0.2mm |
| Capacity | 50ml |
| Cup body material | aluminum |
| Applicable standard | GB/T 1723 |
| Inner cone angle | 101°±30 |
| Certificate | without |
| leak | 14±0.02mm |
| Cylinder bottom line to notch height | 46±0.2mm |
YongLiDa QND-1 Viscometer Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
