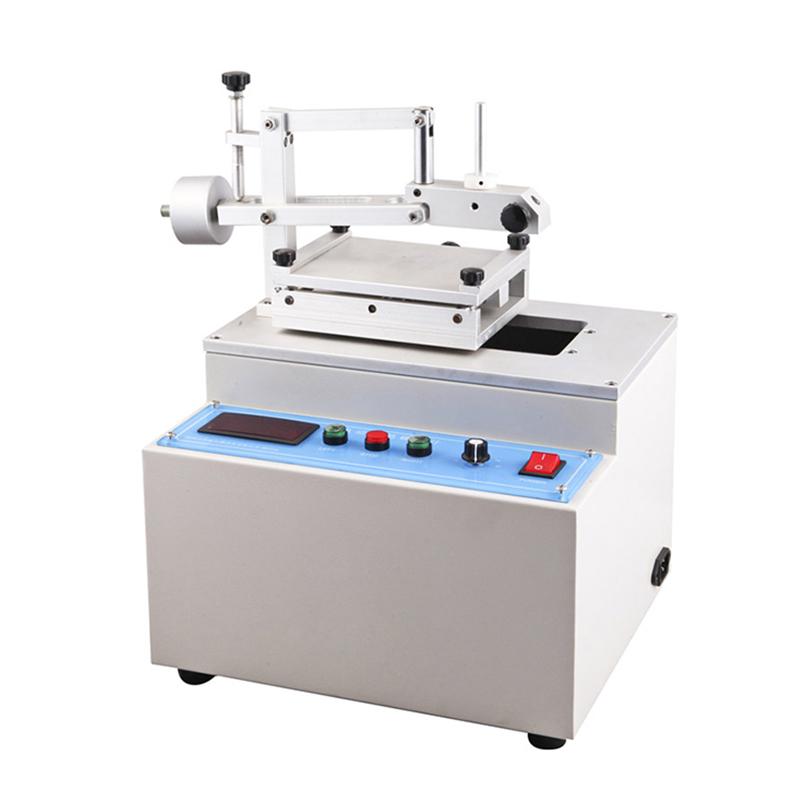

XM-DHD Pencil Hardness Tester

Xiangmin XM-DHD electric Pencil Hardness Tester load adjustable, 500g, 750g, 1000g, standard pencil Mitsubishi pencil 14 6H-6B, test angle 45 degrees, test platform traverse speed 0-200mm/min, adjustable, travel distance 45mm, platform about 120mm, can fix the sample.

Brand

SKU: NB027655

xiangmin

Model

XM-DHD

Get Quote

xiangmin

Information

Datasheet Catalog

What else did others buy

Pushen QHQ Pencil Hardness Tester

$ 381.00
YONGLIDA QHQ-A 750g Portable Pencil Hardness Tester meets GB/T6739 standard

$ 141.00
JINGKELIAN QHQ-A Portable pencil method Determination of Hardness Gauge Paint film Hardness test

$ 156.00
MODERNER PPH-500 Pencil Hardness Tester Weight 500g

Login
YONGLIDA QHQ-A 1000g Portable Pencil Hardness Tester

$ 141.00

Genuinegoods

xiangmin XM-DHD Pencil Hardness TesterOverview
Specifications
Comments
FAQs

XM-DHD

Pencil Hardness Tester

Introduction

This machine is specially used for all kinds of finished product spraying hardness test, such as: mobile phone shell, MP3/MP4 shell, laptop shell and other types of home appliance digital product shell spraying hardness test.

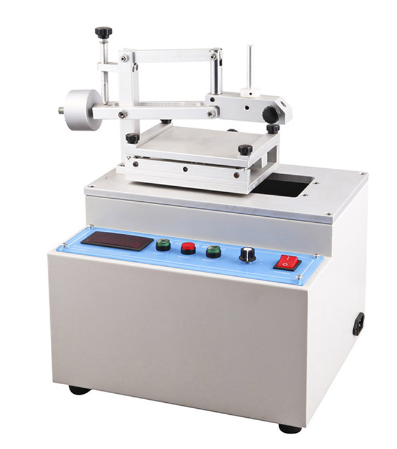

Xiangmin Instrument XM-DHD Electric Pencil Hardness Tester Details Figure 1

xiangmin XM-DHD Pencil Hardness TesterSpecifications

LIST	VALUE
load	500/750/1000g
Standard pencil	14 Mitsubishi pencils (6B-6H)
test angle	45°
Test platform traverse speed	0~200mm/min, adjustable
travel distance	45mm
Platform size	Approx. 120mm, can hold the sample
Power Supply	220V/50Hz

xiangmin XM-DHD Pencil Hardness Tester Packing list

whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
