Xiangmin XM-P04 horizontal insertion force testing machine, touch screen/with conduction/preset
Xiangmin XM-P04 horizontal insertion force testing machine frequency range 0~999999, transmission mode swirl/spin eccentric wheel, Display mode Chinese LED real-time display, insertion force range 0~20kg, minimum insertion force solution clarity 0.01kg, stroke adjustment example 0~60MM, Test speed 5~ 60 times (digital display).
xiangmin
XM-P04
-
RONGHUA 1810-B quartz double pure water distillation, laboratory prepative secondary distillation
$ 713.00 -
KOSON KS-150 In-situ single shear Tester, masonry shear strength Tester 150KN thrust
$ 665.00 -
CHENCHI ZLS-200 paper filtrating speed meter 0.10~3.00mm
$ 1739.00 -
CHENCHI DPL-100 bag fatigue Tester, vibration fatigue Tester
$ 2418.00 -
LANDTEK FM-100V10 Portable Flow velocity measuring instrument, Open channel Flow velocity Flow rate measurement
$ 677.00
Introduction

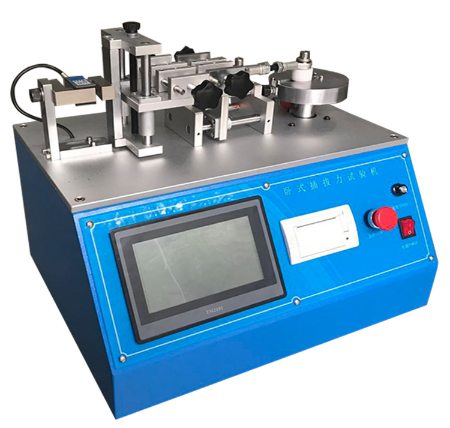

Plugging force Life Cycle Tester using embedded microcomputer measurement and control technology, used to test the automatic test of insertion and unplugging of various connectors, this equipment adopts high-precision force sensor and self-developed LCD blue screen Chinese LCD force display, can accurately measure, display insertion force, pull-out force, real-time force value, and has the number of settings, speed travel adjustable, and display speed value, automatic zero, unit conversion, etc.
xiangmin XM-P04 Horizontal insertion force testing machineSpecifications
| LIST | VALUE |
|---|---|
| frequency range | 0~999999 |
| Transmission mode | Swirling/spinning eccentric |
| Display mode | Chinese LED real-time display |
| Insertion force range | 0~20kg |
| Minimum insertion force resolution | 0.01kg |
| Stroke adjustment example | 0~60MM |
| Test speed | 5 to 60 times (digital display) |
| Two unit conversions | KG、LB、 N |
| Operating Voltage | Single phase 220V |
| Volume | 550mm*450mm*650 mm |
| Power supply Voltage | 220V、50Hz、2A |
| correction | Using software to compare the positive load value |
xiangmin XM-P04 Horizontal insertion force testing machine Packing list
whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
