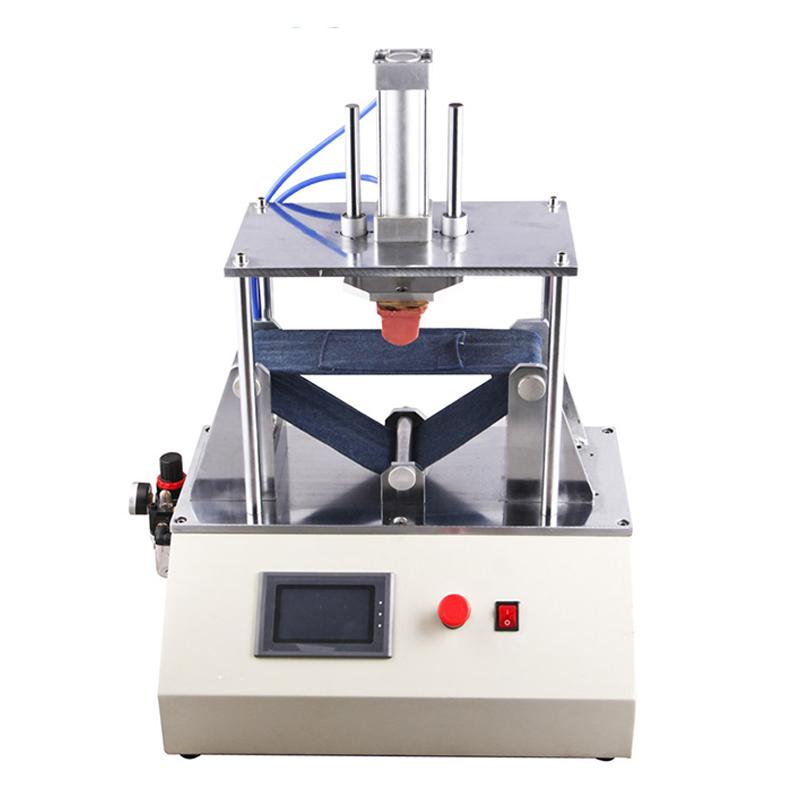

Xiangmin XM-6100 Soft Pressure Life Tester, Touch Type

Xiangmin XM-6100 soft pressure Life Cycle Tester test station 1, the working principle of cylinder control rotation, cylinder diameter 50mm, stroke 150mm, cylinder drive pressure adjustment range of 15-100kg, Working pressure 25kg, Frequency 10-30 times/minute, the pressure head requires the use of resilience silica gel.

Brand

SKU: NB027707

xiangmin

Model

XM-6100

Get Quote

xiangmin

Information

Datasheet Catalog

What else did others buy

Genuinegoods

xiangmin XM-6100 Soft pressure Life Cycle TesterOverview
Specifications
Comments
FAQs

XM-6100

Soft pressure Life Cycle Tester

xiangmin XM-6100 Soft pressure Life Cycle TesterSpecifications

LIST	VALUE
test station	1
Test electric sample	5000Px * 250px, height adjustable within 100px
Working principle	Control rotation with cylinders
Bore	Φ50mm
itinerary	150mm
Cylinder drive pressure adjustment range	15-100kg
Working pressure	25kg
Frequency	10-30 times/minute
Indenter requirements	Choose resilience silicone
Overall size of the machine	3705001150mm
Weight	Approx. 50kg
Power supply Voltage	AC220

xiangmin XM-6100 Soft pressure Life Cycle Tester Packing list

whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
