xiangmin XM-960 Directional drop/controlled Drop Tester

The maximum test height of Xiangmin XM-960 directional drop/controlled Drop Tester is 300~1800mm (can be set), the maximum drop weight is 1kg (the cylinder specification needs to be increased when heavier specifications are required), the drop height setting ruler and setting indicators, the minimum detachment height is 300mm, the counter is 0~999999 (LCD display), and the air source is ≥ 0.5MPa.

xiangmin XM-960 Directional drop/controlled Drop TesterKey Spec.

drop height
300~1800mm
XM-960 Directional drop/controlled Drop Tester
Details

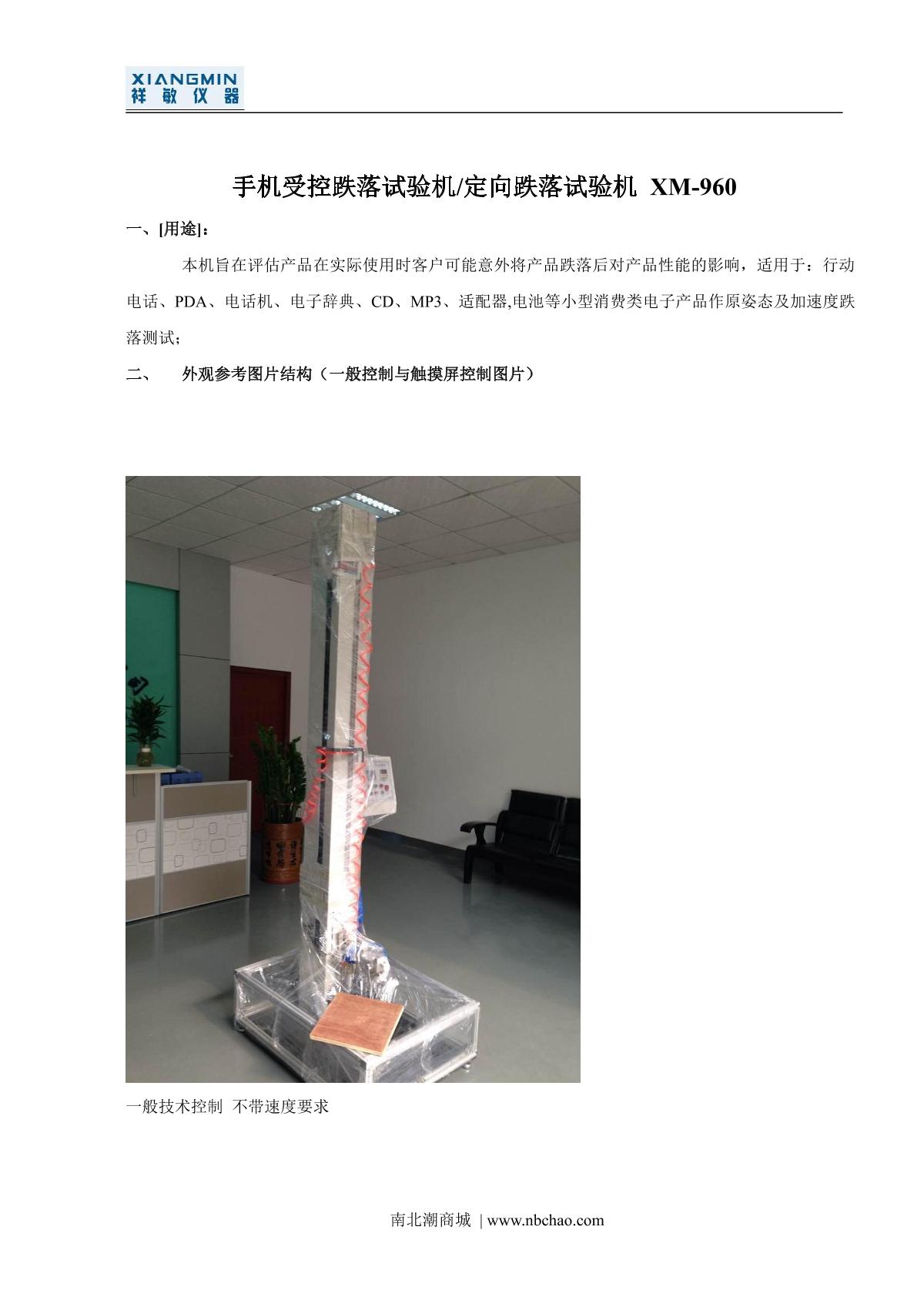

xiangmin XM-960 Directional drop/controlled Drop Tester brochure page 1

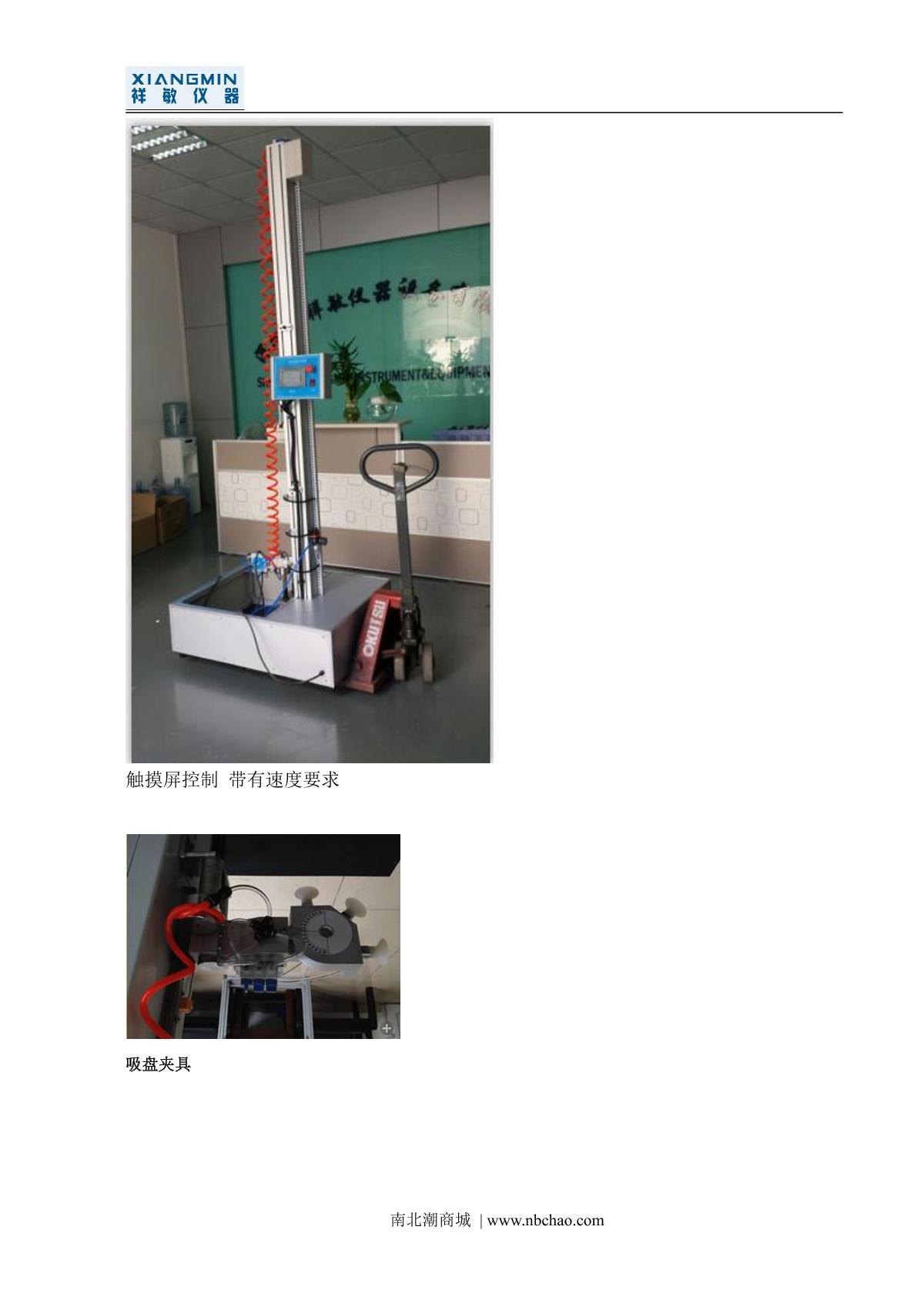

xiangmin XM-960 Directional drop/controlled Drop Tester brochure page 2

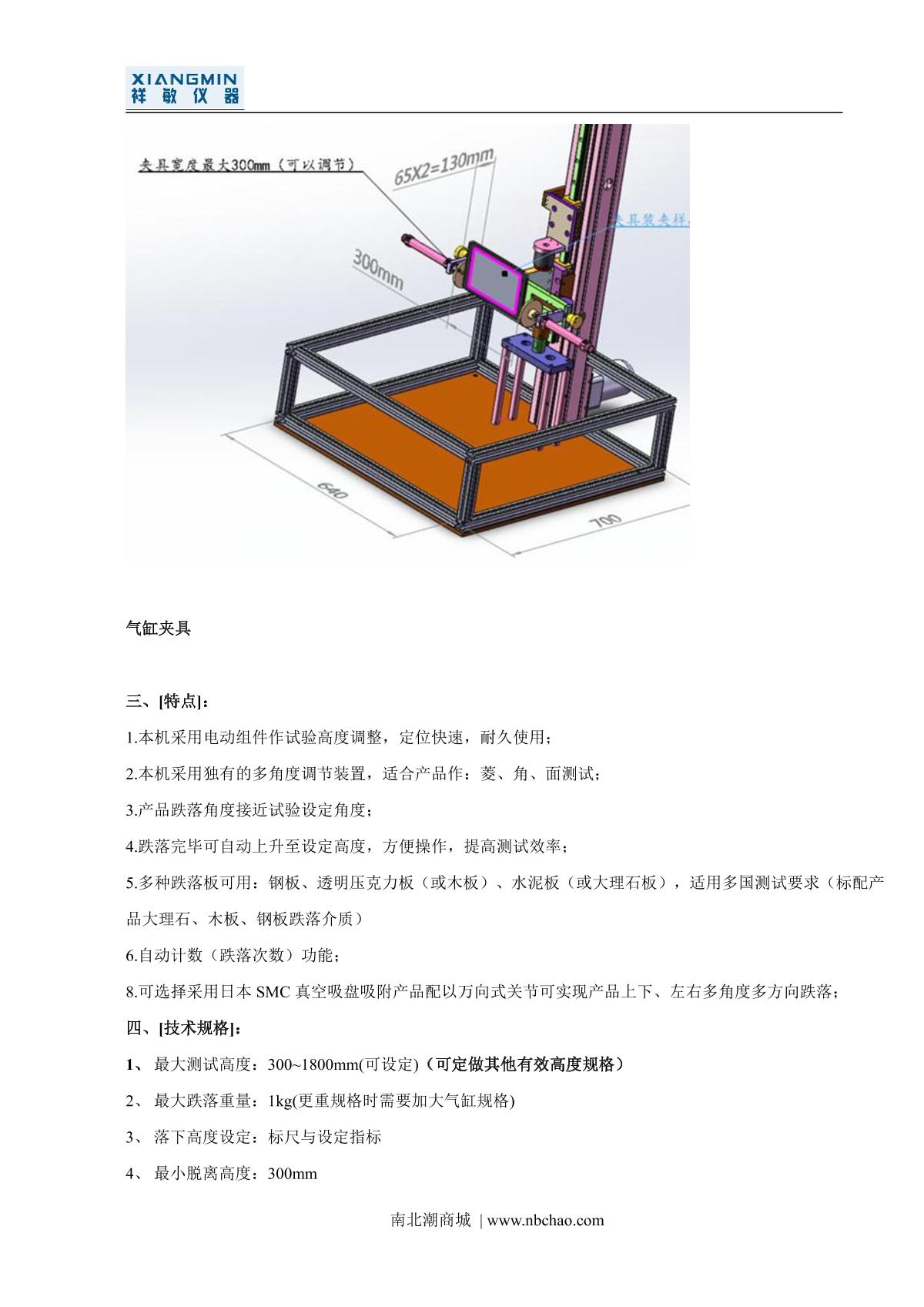

xiangmin XM-960 Directional drop/controlled Drop Tester brochure page 3

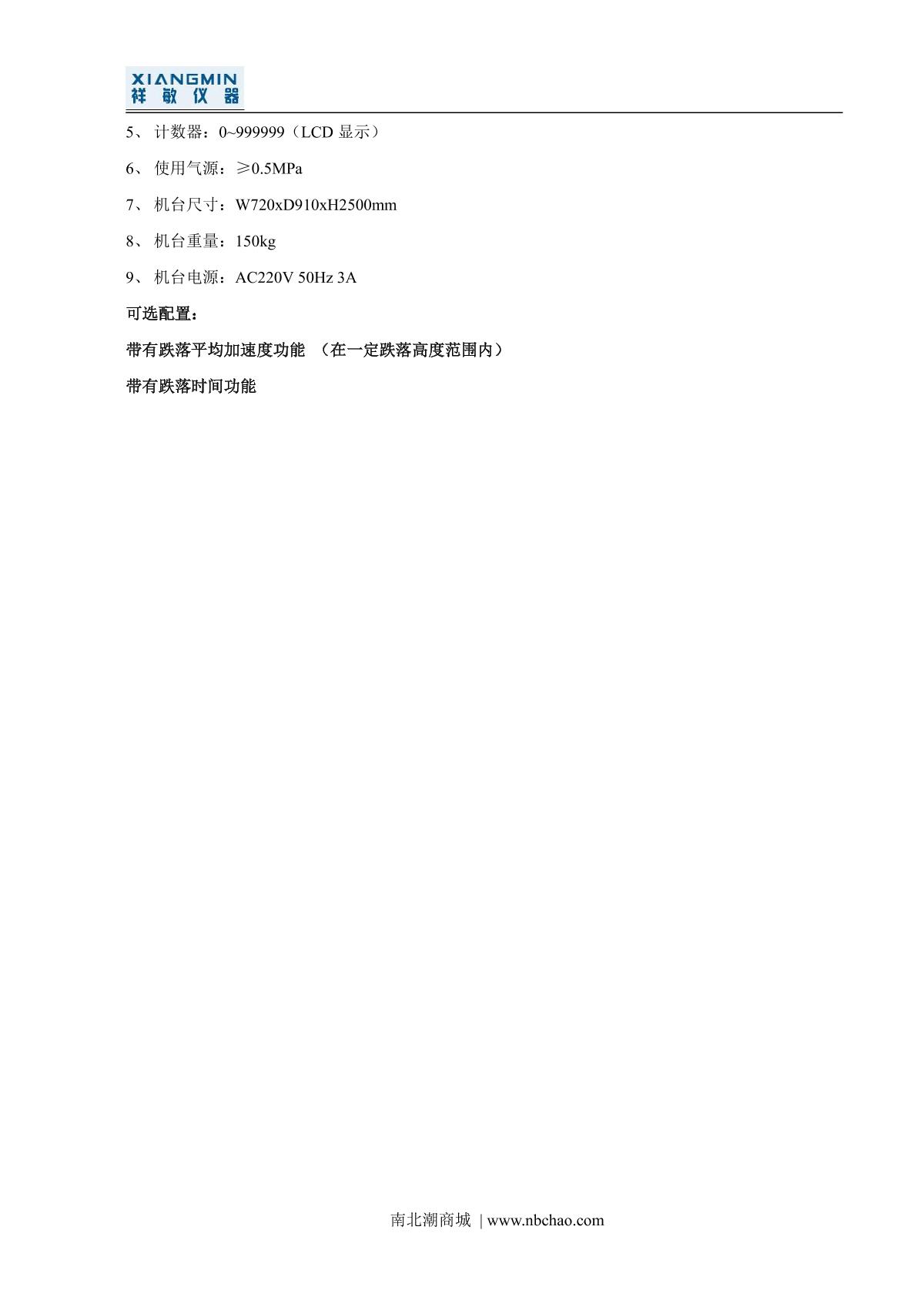

xiangmin XM-960 Directional drop/controlled Drop Tester brochure page 4
