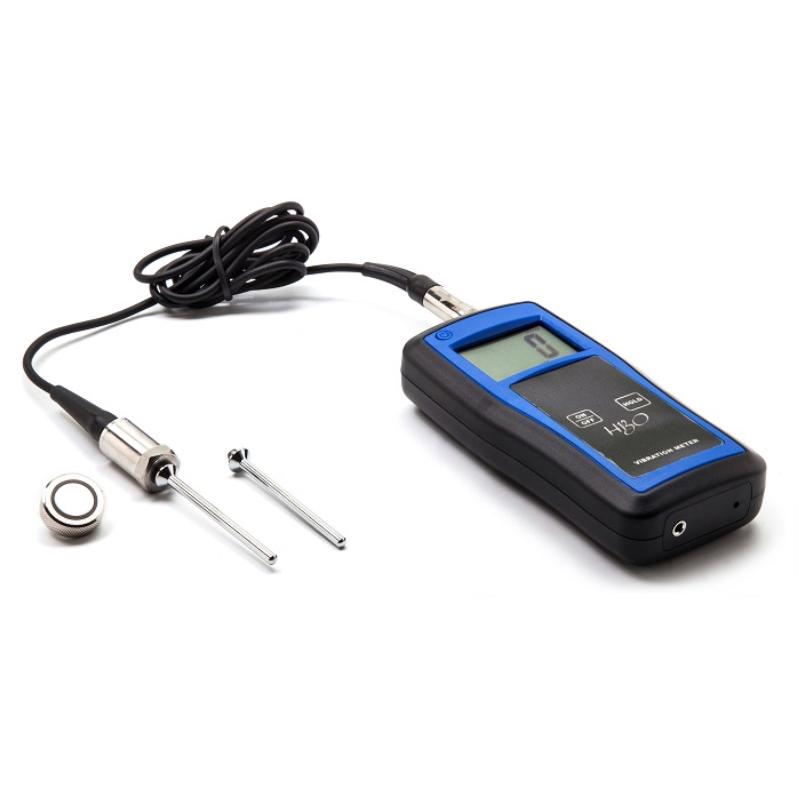

Hypertherm CZ-Z vibratIon Meter, vibration Measurement Instrument
ISO 2954 compliant, designed for on-site mechanical vibration detection. Measurement range with high performance accelerometers, Acceleration, Speed and Displacement measurements are supported. USB, RS-232 and Bluetooth data output are available.
HBO
CZ-Z
CZ-S
CZ-J
-
LANDTEK VM-6380-3 Vibration Measuring Instrument (Three Channel)
$ 739.00 -
DUBAN DB10-VC260 Vibrator calibrator Acceleration 10m/s ² (RMS) +/- 3%
$ 677.00 -
DUBAN DB22-VM260D 3D Triaxial Vibration Meter with Triaxial Piezoelectric Vibration Sensors
$ 677.00 -
DUBAN DB22-VM260A16 Vibrator, displacement D 0.001~ 16.0mm
$ 677.00 -
3D three-axis vibration instrument AMITTARI AV-160D simultaneous measurement of three-axis or single-axis vibration parameters
$ 658.00
Applications
Applied to periodic motion measurement to detect imbalance and deviation of moving machinery. It is specially designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.
Overview
* Conforms to international standard ISO2954 for periodic motion measurement to detect imbalance and deviation .
* Designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.
* Use high-performance accelerometers to achieve accurate and reproducible measurements.
* Wide frequency range, in the acceleration mode, the frequency can reach 10Hz~10KHz.
* With AC signal output, it is convenient for auscultation and recording.
* Optional earphones can be used as a stethoscope.
* Use "USB data line output" and "RS-232 data line output" to communicate with PC.
* Provide Bluetooth data output option.
* Sensor piezoelectric acceleration sensor
Optional
1. Earphone stethoscope
2. USB or RS-232 data cable and software
3. Bluetooth communication and software
HBO CZ-Z VibratIon MeterSpecifications
| LIST | VALUE |
|---|---|
| Acceleration Measurement range | 0.1~ 400M/s ² Peak 0.3~ 1312ft/s ² 0.0~40g |
| Measurement range | 0.01~ 400Mm/s True RMS 0.004~ 16.0inch/s |
| Measurement range | 0.001~ 4.0Mm Peak-Peak 0.04~ 160.0mil |
| Acceleration Frequency range | 10Hz~ 1kHz 10Hz~ 10kHz (x10 mode for bearing inspection) |
| Frequency range | 10Hz~1kHz |
| Frequency range | 10Hz~1KHz |
| Precision | +/- (5% n + 2) words |
| Metric imperial conversion | convertible |
| output | 2.0V AC load resistance 10k |
| Battery Voltage indication | Low Voltage prompt |
| Data output | USB, RS-232, Bluetooth |
| Operating Conditions | Temperature: 0~50 ℃ Humidity: < 90% RH |
| Power Supply | 4 AA batteries |
| Dimension | 148*72*34mm |
| Weight | 135G (without battery) |
HBO CZ-Z VibratIon Meter Packing list
Host X1, magnetic suction seat X1, Piezoelectric Sensors X1, probe (cone) X1, probe (ball) X1, portable case, instruction manual
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
