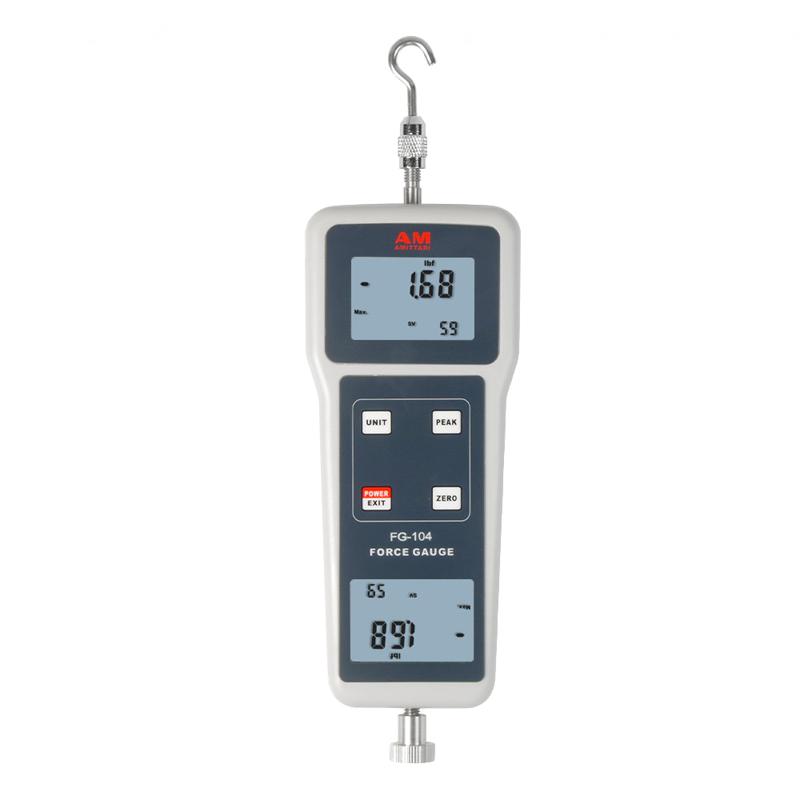

AMITTARI FG-104-1K Digital Display Force Gauge high-precision multi-function Tester
With +/- 1kgf Measurement range and 0.001kgf resolution, support four unit conversion and peak hold function, 10 minutes automatic shutdown design energy saving and environmental protection.
AMITTARI
FG-104-1K
-
Sandu SJ-099 Standard Parts Fixture 50KN
$ 741.00 -
Spring tension and compression testing machine HT-5000 Hypertherm Spring tension and compression testing device
$ 790.00 -
Haibao HJJ-13 fixture
$ 83.00 -
Portable Force Gauge HG-300 HBO Portable Force Gauge
$ 239.00 -
HBO HDE-500S Intelligent Single Column Vertical Force Gauge Machine, Load 500N
$ 1237.00
Digital push-pull gauge is a small, simple, multi-functional and high-precision thrust and pull testing instrument, widely used in electronic appliances, construction hardware, light industry textiles, auto parts, ignition devices such as lighters, fire-fighting equipment, pen-making, manufacturing Push-pull load, insertion force test, destructive test, etc. in locks, fishing gear, chemical industry, power machinery, scientific research institutions and other industries.
product features
High precision and high resolution. Digital display, no parallax.
N (Newton), kg (kilogram), lb (pound), g (gram) are available for selection and mutual conversion.
Peak hold function. Keep peak display until manually cleared.
Green and environmentally friendly, it can be set to automatically shut down without any operation for 10 minutes; it can also be shut down manually.
Alkaline batteries can be used for power supply; it can also be powered by 6V DC power supply.
Models
| model | FG-104-1K | FG-104-2K | FG-104-5K | FG-104-10K | FG-104-20K | FG-104-50K | FG-104-100K |
| Measuring range | ±1kgf | ±2kgf | ±5kgf | ±10kgf | ±20kgf | ±50kgf | ±100kgf |
| ±1000gf | ±2000gf | ±5000gf | |||||
| ±9.8N | ±19.6N | ±49N | ±98N | ±196N | ±490N | ±980N | |
| ±2.2Lbf | ±4.4Lbf | ±11Lbf | ±22Lbf | ±44Lbf | ±110Lbf | ±220Lbf | |
| resolution | 0.001kgf | 0.001kgf | 0.001kgf | 0.001kgf | 0.01kgf | 0.01kgf | 0.01kgf |
| 1gf | 1gf | 1gf | |||||
| 0.01N | 0.01N | 0.01N | 0.01N | 0.1N | 0.1N | 0.1N | |
| 0.001Lbf | 0.001Lbf | 0.01Lbf | 0.01Lbf | 0.01Lbf | 0.1Lbf | 0.1Lbf |
AMITTARI FG-104-1K Digital Force GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measuring range | ±1kgf/±1000gf/±9.8N/±2.2Lbf |
| resolution | 0.001kgf/1gf/0.01N/0.001Lbf |
| Error of indication | ± 0.5% FS (range) ± 1 digital peak |
| unit | KgfNLbfgf |
| A measurable value | Peak, instantaneous value |
| display | Four-digit large LCD, positive dual display |
| shutdown mode | 10 minutes automatic shutdown or manual shutdown |
| Allowable load | 150% F.s (buzzer alarm when over 110% F.s) |
| Power | 2 AA batteries, or 6V DC Power |
| Allowable Operating Temperature | 0 ~ 40℃ |
| Allowable Relative Humidity | <80% |
| Operating Environment | No source and corrosive medium around |
| Net Weight | 390g |
| Dimensions | 211x80x36mm |
AMITTARI FG-104-1K Digital Force Gauge Packing list
Electronic tension meter x1, tension hook x1, flat probe x1, conical probe x1, V-shaped groove probe x1, V-shaped wedge probe x1, extended connecting rod (double-headed screw, double-headed nut) x1, instruction manual x1, portable case x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
