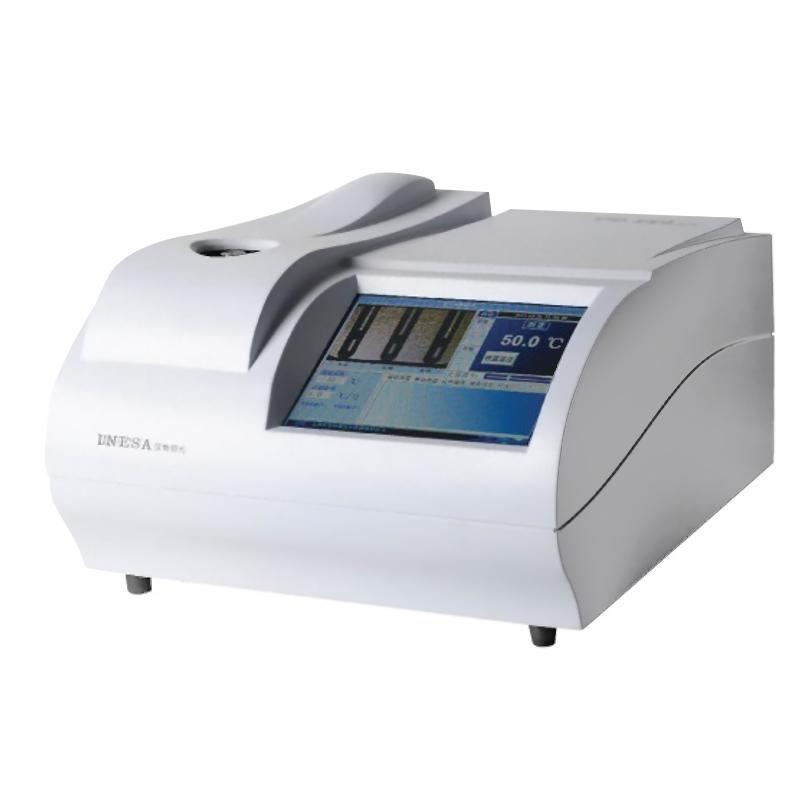

INESA INESA SGW-630 Automatic image Melting point meter
Automatic detection and playback of sample melting point process, supports simultaneous measurement of three capillary tubing. Built-in Windows, supports data saving, export and upload. Temperature control system with high linearity platinum resistance, with automatic and visual measurement modes, can measure dark or opaque samples
INESA
SGW-630
SGW-650
Features
It adopts a high-resolution digital camera, which is automatically detected by image processing and analysis, and has a playback function.
Three capillaries (SGW-630) are determined simultaneously.
BUILT-IN WINDOWS OPERATING SYSTEM, SIMPLE, CONVENIENT, INTUITIVE AND CLEAR, YOU CAN CONNECT TO THE PRINTER.
The temperature control system uses platinum resistance with high linearity as the detection element, which improves the accuracy and reliability of the melting point.
The instrument has two functions: automatic measurement and manual visual measurement, so that you can clearly grasp the continuous change process of the sample, and can verify the accuracy of automatic testing and visual measurement with each other.
The instrument can measure dark samples or opaque samples, with multi-point calibration function, and the test data can be saved, exported and uploaded.
It complies with the relevant requirements of NATIONAL PHARMACOPOEIA, GMP, GLP and FDA/21CFR 11, including user hierarchical management, electronic signature, password management, network transmission, data protection and traceability.
INESA SGW-630 Automatic Melting point meterSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+~400℃ |
| Measuring method | Automatic, visual (playback monitoring) |
| Experimental method storage Capacity | 300 kinds |
| password hierarchical management | Level 4 |
| user management | 50 |
| Electronic signature | Yes. |
| data traceability | Yes. |
| Temperature Resolution | 0.1℃ |
| Heating rate | 0.2/0. 5/1/1 5/2/3/4/5 ℃/min |
| error of indication | ±0.4℃(≤200℃)；±0.7℃(>200℃) |
| Repeatability | ±0.3℃(1.0℃/min) |
| linear Heating rate error | ±10％ |
| processing power | 3 |
| Capillary tubing size | Outer diameter is 1.4mm; Inner diameter is 1.0mm; Length is 90mm. |
| Sample height | 3mm |
| Operating system | WINDOWS |
| Data storage | 16G |
| Display mode | 8-Inch LCD touch screen |
| Calibration method | 8 point calibrated |
| Interface | USB/keyboard/mouse/universal printer/VGA/Ethernet network interface card/optional wireless network interface card |
| Power Supply | 220V±22V 50Hz±1Hz |
| Dimension | 390*320*240mm |
| Net Weight of instrument | 13kg |
INESA SGW-630 Automatic Melting point meter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
