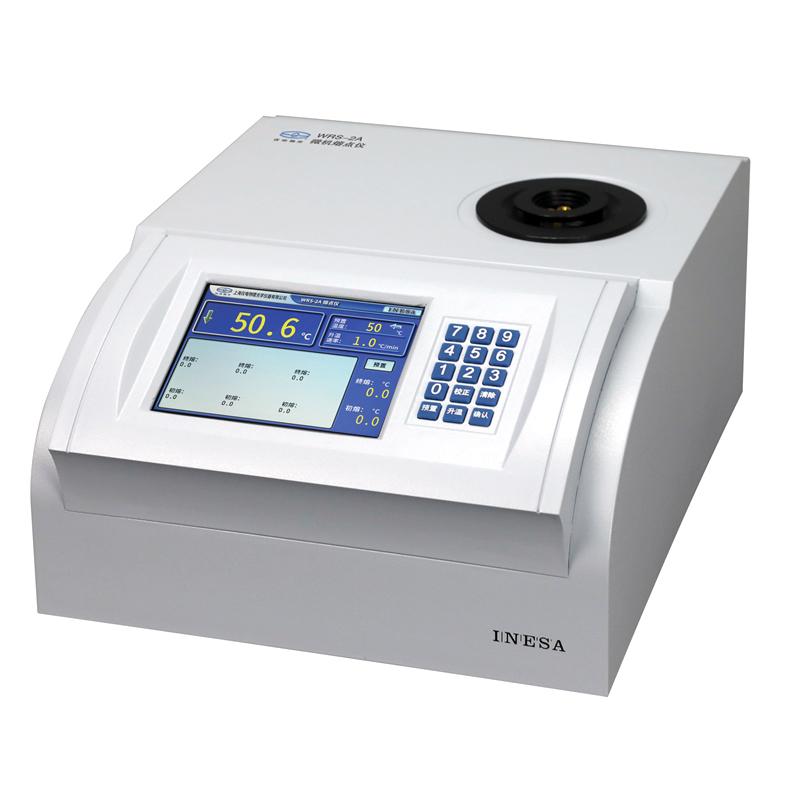

INESA WRS-2C Melting point meter 360 ℃
PID adjustment and PWM temperature control technology, color LCD touch screen, automatically record the results of initial and final melting, and display the melting Linear dispersion. Support three capillary tubing sample measurement, USB/RS232 interface, in line with pharmacopoeia standards
INESA
WRS-2C
WRS-1C
-
YOUKE YK3654 melting point Tester
$ 630.00 -
INESA SGW-681 Automatic video Melting point meter Room temperature~ 360 ℃
$ 4113.00 -
SUOGUANG WRX-5B Microscopic melting point meter, binocular Microscope 40X~ 100X zoom
$ 2162.00 -
INESA INESA SGW-650 Automatic image Melting point meter
$ 4696.00 -
JIAHANG JHY80 Automatic Grease Melting point meter Temperature range RT+~ 100.0 ℃
Login
Features
It adopts photoelectric automatic detection and color LCD touch screen display.
During the test process, the results of initial and final melting are automatically recorded, and the initial and final melting curves of the sample can be displayed at the same time.
The temperature control system adopts precision platinum resistance as the temperature detection element, and the PID adjustment and PWM temperature control technology are applied to improve the accuracy and reliability of melting point measurement.
The instrument has the function of automatically saving working parameters and storing measurement results, and can also be connected to the PC through the USB interface or RS232 interface, and can be connected to the printer.
The instrument uses a capillary tube specified by the pharmacopoeia as the sample tube.
INESA WRS-2C Melting point meterSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+~360℃ |
| Measuring method | automatic |
| Temperature Resolution | 0.1℃ |
| Heating rate | Optional continuously between 0.1 and 20 ℃/min |
| error of indication | ±0.4℃(≤200℃)；±0.7℃(>200℃) |
| Repeatability | ±0.3℃(1℃/min) |
| linear Heating rate error | ±10％ |
| Experimental method storage Capacity | 8 kinds |
| processing power | 3 sticks |
| Capillary tubing size | Outer diameter is 1.4mm; Inner diameter is 1.0mm; Length is 90mm. |
| Sample height | 3mm |
| Data storage | 1000 sets |
| Printer model | RD-TH32-SC (standard) |
| Display mode | 7-Inch color LCD touch screen |
| Calibration method | Multipoint calibrated |
| Interface | RS232/USB |
| Power Supply | 220V±22V 50Hz |
| Dimension | 360*290*170mm |
| Net Weight of instrument | 9kg |
INESA WRS-2C Melting point meter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
