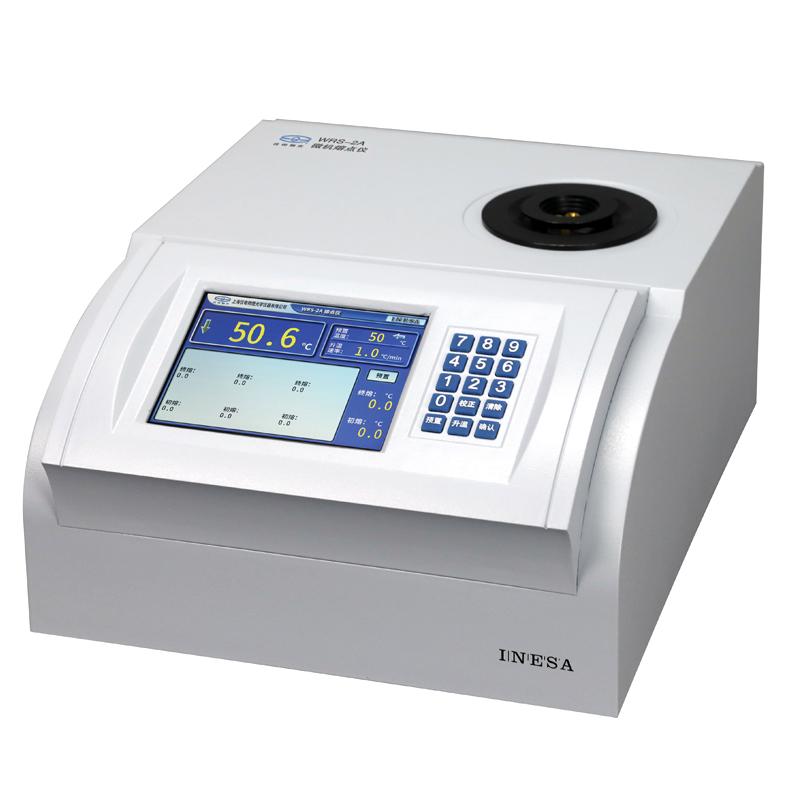

INESA INESA WRS-2A Microcomputer Melting point meter 300 ℃
Equipped with photoelectric automatic detection and PID adjustment technology, color LCD screen, automatically displays the initial and final melting temperatures, and records the melting Linear dispersion. The instrument supports single or three capillary tubing samples, automatically calculates the average melting point, has RS232/USB interface, and complies with pharmacopoeia standards
INESA
WRS-2A
WRS-1B
WRS-2
-
Melting point meter Temperature range 6~ 100 ℃ with refrigeration system
Login -
SUOGUANG X-4A Melting point meter Measuring temperature 320 ℃ Monocular Microscope
$ 828.00 -
SUOGUANG WRX-5A Microscopic melting point Tester, Monocular Microscope 40X magnification
$ 1941.00 -
INESA WRX-2S Thermal Analyzer
$ 3348.00 -
INESA INESA SGW X-4B Melting point meter Melting point meter
$ 843.00
Features
It adopts photoelectric automatic detection, color LCD screen display, numeric keypad input of different types of instruments, can be equipped with one or three capillaries for sample measurement, automatically calculates the average melting point, has automatic display of initial melting and final melting, and automatically records the melting curve.
The temperature system uses platinum resistance with high linearity as the detection element, and adopts PID adjustment technology to improve the accuracy and reliability of the melting point.
By establishing a communication interface, the working parameters can be printed or saved, and the instrument uses the capillary specified by the pharmacopoeia as the sample tube.
INESA WRS-2A Melting point meterSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+~300℃ |
| Measuring method | automatic |
| Temperature Resolution | 0.1℃ |
| Heating rate | 0.2/0. 5/1/1 5/2/3/4/5 ℃/min |
| error of indication | ±0.4℃(≤200℃)；±0.7℃(>200℃) |
| Repeatability | ±0.3℃(1.0℃/min) |
| linear Heating rate error | ±10% |
| processing power | 3 sticks |
| Capillary tubing size | Outer diameter is 1.4mm; Inner diameter is 1.0mm; Length is 90mm. |
| Sample height | 3mm |
| Display mode | 5.6 Color LCD display |
| Calibration method | Multipoint calibrated |
| Interface | RS232/USB |
| Power Supply | 220V±22V 50Hz±1Hz |
| Dimension | 360*290*170mm |
| Net Weight of instrument | 9kg |
INESA WRS-2A Melting point meter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
