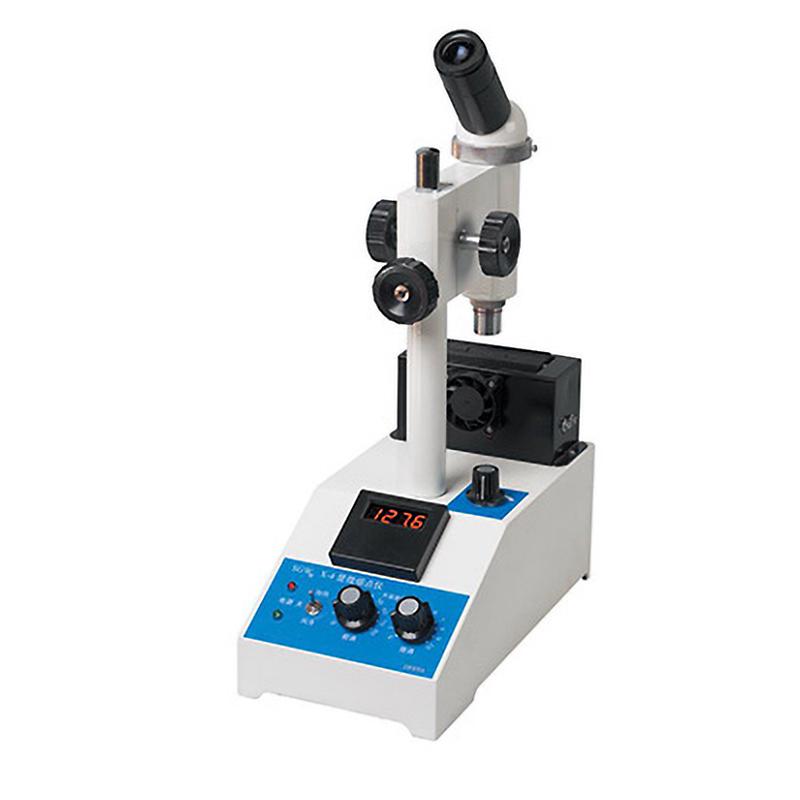

INESA SGW X-4A Melting point meter
Support capillary method and hot table method to determine melting point, suitable for crystalline organic compounds in chemical, Spinning & weaving, fuel and other fields. With 40X Microscope magnification, temperature range RT +~ 320 ℃, temperature resolution 0.1 ℃
INESA
SGW X-4A
SGW X-4
SGW X-4B
-
INESA SGW-685 automatic video Melting point meter room temperature~ 400 ℃
$ 5978.00 -
JIAHANG JH70 automatic video Melting point meter compatible with measurement powder and block
Login -
JIAHANG JHY80 Automatic Grease Melting point meter Temperature range RT+~ 100.0 ℃
Login -
INESA INESA SGW X-4B Melting point meter Melting point meter
$ 843.00 -
SUOGUANG WRX-5C Microscopic melting point Tester, three-eye Microscope digital eyepiece
$ 2912.00
Features
Determination of the melting point of a substance. It is mainly used for the determination of crystalline organic compounds such as chemicals, textiles, fuels, spices, etc. The instrument uses the microscope observation method, which can be determined by both the capillary method and the slide-to-coverslip method (hot stage method).
The SGW X-4A and SGW X-4B are equipped with a draft shield to reduce the influence of the environment on the test results.
INESA SGW X-4A Melting point meterSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+~320℃ |
| Measuring method | visual |
| Measuring method | Capillary method, hot table method |
| Temperature Resolution | 0.1℃ |
| Repeatability | ±1℃(≤200℃)；±2℃(>200℃) |
| Observation method | Monocular Microscope |
| magnification | 40X |
| Power Supply | 220V±22V 50Hz±1Hz |
| Dimension | 215×140×395mm |
| Net Weight of instrument | 3.6kg |
INESA SGW X-4A Melting point meter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
