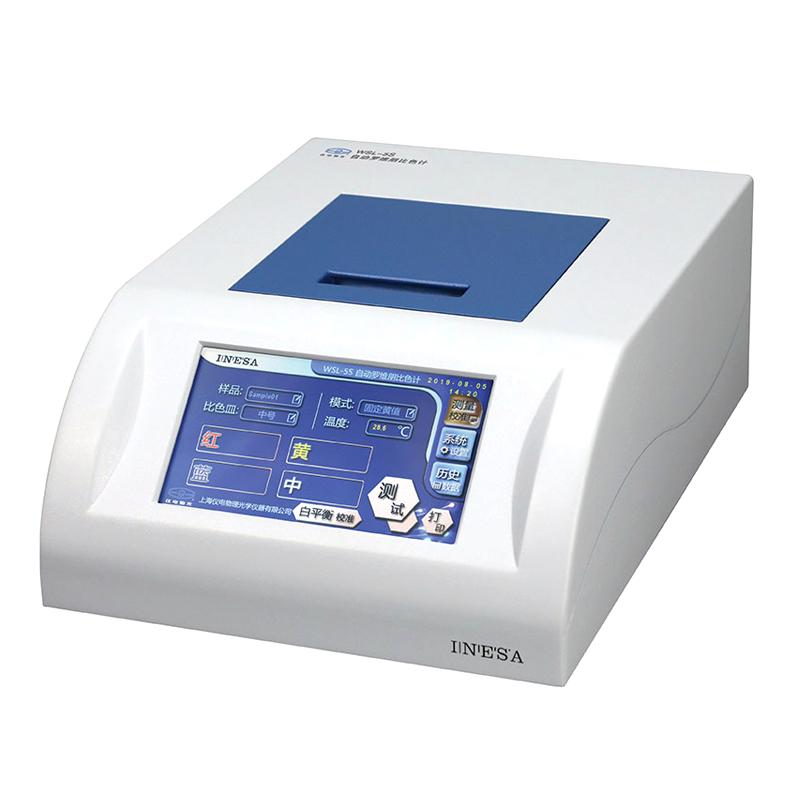

INESA INESA WSL-5S Automatic LOVIBOND Colorimeter
The use of electronic Color Sensors and LOVIBOND color scale eliminates the errors of traditional visual measurement. With high accuracy and good repeability, it supports data storage, export and printing functions. 7-inch color LCD touch screen, standard with a variety of communication interfaces (RS232, USB, U disk)
INESA
WSL-5S
-
JINGKELIAN QSG format tube
$ 114.00 -
JINGKELIAN QSG Iron and Cobalt Tintometer for the determination of varnishes, oils and thinners Color basis GB/T 1722-92
$ 131.00 -
INESA INESA WSL-5S Automatic LOVIBOND Colorimeter
$ 1498.00 -
SUOGUANG WSL-2 LOVIBOND Colorimeter for grease, jam, plastic, rubber, etc
$ 705.00 -
INESA INESA WSL-2 Comparison Colorimeter (LOVIBOND Colorimeter)
$ 652.00
Features
It is used for color measurement of different substances such as oil, paint, plastic, jam, textile, dairy products, grain, etc., and is also a special instrument for grain and oil enterprises and testing institutions. The automatic Rovipon Colorimeter is an instrument that uses an electronic color sensor to measure color, and it uses an internationally recognized special color scale - Rovipon color scale to measure the color of various transparent liquids. The instrument eliminates the human error in the measurement of traditional visual Rovipun Colorimeters, and has the characteristics of high accuracy and easy operation of the measurement method. And there is a friendly operation interface, fast test speed, good repeatability, standard configuration of various communication interfaces, with data storage, export and printing functions, industry standard: JJG758-1991.
INESA WSL-5S Automatic LOVIBOND ColorimeterSpecifications
| LIST | VALUE |
|---|---|
| Light source | LED |
| Measurement range | Red: R 0.1~ 80; Yellow: Y 0.1~ 80; Blue: B 0.1~ 50; Neutral gray: N0.1~ 4 (LOVIBOND unit) |
| error of indication | ≤5% |
| Indication Repeatability | ≤±0.2 |
| Display range | 0℃~50℃ |
| data storage | 1000 sets |
| Display mode | 7-Inch color LCD touch screen |
| Communication interface | RS232, USB, USB flash drive |
| Printer model | CK NT-T24S (optional) |
| Colorimetric dish size | 10mm×20mm×40mm；25.4mm×20mm×40mm；133.4×20mm×40mm |
| Power Supply | 220V~ 240V Frequency 50Hz +/- 1Hz |
| Dimension | 368mm×270mm×150mm |
| Net Weight | 4.5kg |
INESA WSL-5S Automatic LOVIBOND Colorimeter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
