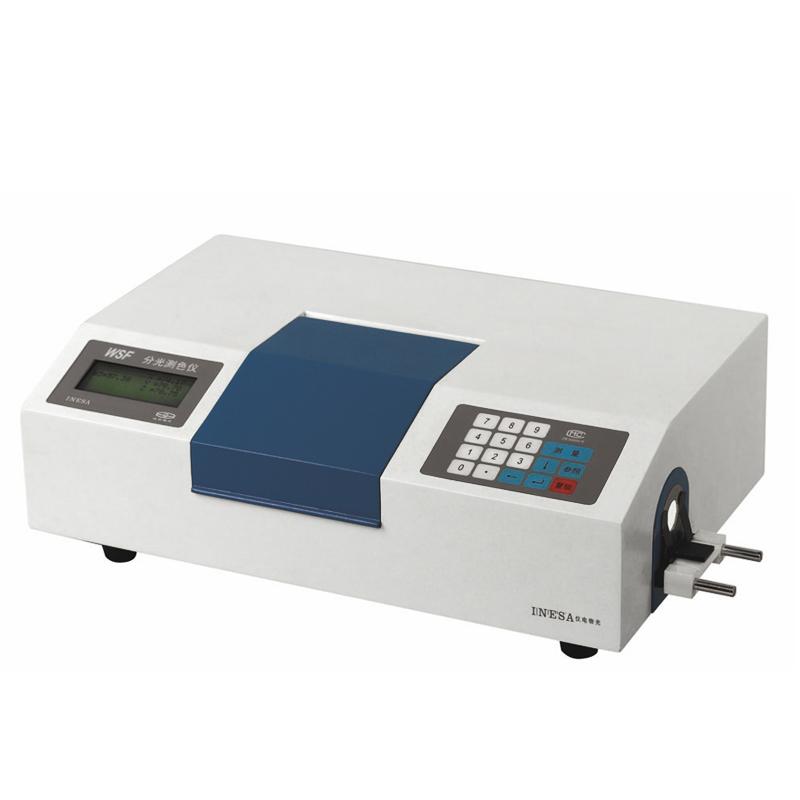

INESA WSF Colorimeter
Measurable whiteness, chroma and color difference, d/0 irradiation conditions, φ 20mm measurement diameter, Transmittance Precision +/- 1.5%.
INESA
WSF
-
IWAVE WS2300 Colorimeter φ 16mm
$ 2216.00 -
IWAVE SY3020 Colorimeter, Measurement
$ 689.00 -
3NH YS3010 Masterbatch Colorimeter, 8mm, with multi-functional test components
Login -
Kutai MS3008 Automotive Colorimeter 8 Measurement angles
Login -
Iwave SR228 Professional Colorimeter Camera Positioning φ 4mm + φ 8mm
$ 1858.00
Features
The WSF Spectrophotometer is a high-performance, versatile, and easy-to-use Colorimeter. It is suitable for measuring the reflective color and transmission color of various objects, and can test the whiteness, chromaticity and color difference of the two objects.
The instrument lighting reception mode is D/0 specified by CIE. It can display the reflectance and transmittance of the object in the visible light band (400nm~700nm), and can communicate with the computer through the interface to give the spectral curve of the object's reflected color, which greatly facilitates the analysis of the object's color.
The instrument can be widely used in textile, dyes, printing and dyeing, coatings, paints, papermaking, building materials, food, printing and other industries.
INESA WSF ColorimeterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | d/0 |
| Light spectrum conditions | Response is equivalent to GB/T3978-2008 standard illumination body D65, A, C and 10 ° 2 ° field of view tristimulus values X, Y, Z under color-matching function |
| Display | Character LCD |
| Measurement caliber | ∅20mm |
| Wavelength range | 400~700nm |
| Transmittance Precision | ±1.5% |
| Repeatability of chromatic value | δu(Y)≤0.5，δu(x)、δu(y)≤0.003 |
| Stability | ΔY≤0.6 |
| Precision | ΔY≤2 Δx、Δy≤0.02 |
| Color system | 颜色:X 、Y、Z； Y、x、y； L*、a*、b*； L、a、b； L*、U*、V*；L*、C*、h* 色差：△E(L*a*b* )、 △E(Lab)、△E(L*u*v*) 黄色指数（HG/T3862-2006）：YI、△YI；白度 |
| Interface | RS232 |
| Power supply Voltage | 220V ±22V 50Hz± 1HZ |
| Dimensions | 475*280*152mm |
| Weight | 8kg |
INESA WSF Colorimeter Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
