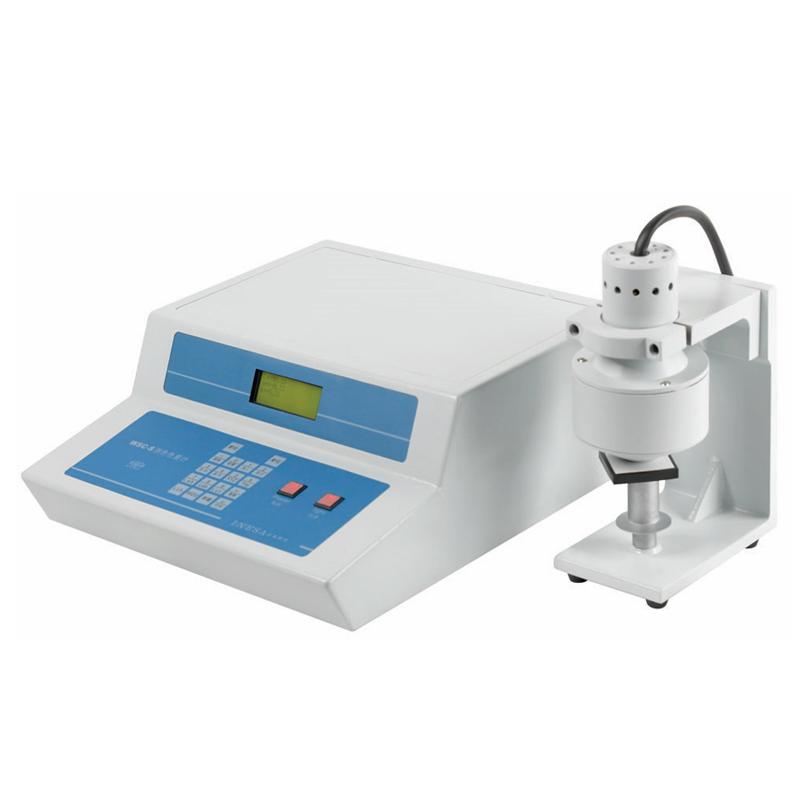

INESA WSC-S Colorimeter

Can test whiteness and chroma and color difference, irradiated sample area of 20mm, with RS232 interface.

Brand

SKU: NB027968

INESA

Model

WSC-S

Get Quote

INESA shopSE

Information

Datasheet

What else did others buy

3NH NH Multifunctional Test Component

$ 541.00
3NH NR110 Colorimeter 4mm caliber, suitable for powder, Spinning & weaving, chemical, leather, food, plastic, etc

Login
CHINA LS177 Large aperture desktop spectroscopic Colorimeter Powder, Masterbatch Color detection

$ 1412.00
3NH NH300 Colorimeter 8mm caliber, suitable for plastics, clothing, products, inks, food, cosmetics, powder, etc

Login
3NH YS Series Multifunctional Test Components

Login

Genuinegoods

INESA WSC-S ColoriMeterOverview
Specifications
Comments
FAQs

WSC-S

ColoriMeter

Can test whiteness and chroma and color difference, irradiated sample area of 20mm, with RS232 interface.

Features

WSC-S Colorimeter is a kind of Colorimeter with superior performance, wide use and easy operation, which is suitable for measuring the reflected color of various objects, and can test the whiteness, chromaticity and color difference of two objects.

It is equipped with a test head with geometric conditions, i.e. 0/d as specified by the CIE.

WSC-S Colorimeter with digital display and printable.

The instrument can be widely used in textile, dyes, printing and dyeing, papermaking, building materials, enamel, food, printing, measurement and other departments.

INESA WSC-S ColoriMeterSpecifications

LIST	VALUE
Lighting method	0°/d
Light spectrum conditions	Response is equivalent to the tristimulus values X, Y, Z of CIE standard illumination body D65 and 10 ° field of view color-matching function
Irradiated sample area	∅20
Display mode	Digital display printout
Color system	Color/color difference/whiteness
Repeatability	δu（Y）≤0.2，δu（X）≤0.003 ，δu( y)≤0.003
Stability	ΔY≤0.6
Interface	RS232
Power supply Voltage	220V ±22V 50Hz± 1Hz
Dimension	410370160mm
Weight	17kg

INESA WSC-S ColoriMeter Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

I want to do a test on the GB/T7975 standard, is this color difference meter okay?

[A]

Sure

[Q]

Can the WSC-S color difference meter be used to test the whiteness of cloth?

[A]

Hello, yes, this INESA WSC-S color difference meter can not only test the reflection color of the object, but also test the whiteness, chroma and color difference of the object.

[Q]

Does this color difference meter come standard with a printer?

[A]

Hello, this instrument and electronics WSC-S can be connected to the printer, but the printer needs to be purchased separately, and there is no standard one.
