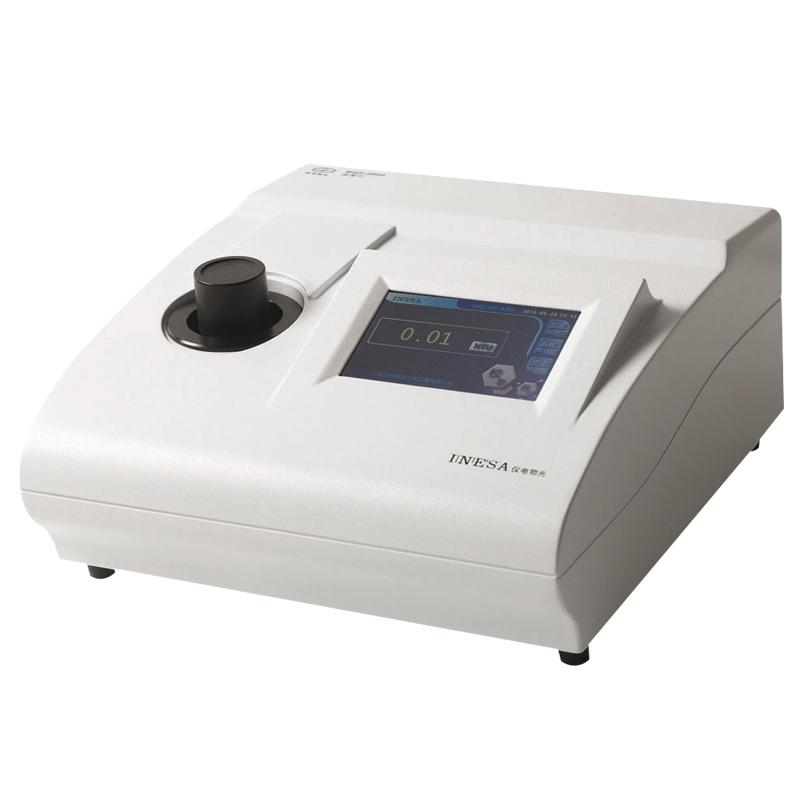

INESA INESA WGZ-100 desktop Turbidity Meter 100NTU
Using halogen tungsten lamp and silicon Photocell, photovoltaic cell, high accuracy turbidity measurement by scattering-transmission light measurement principle, measurement range is 0.000~100.0NTU. Support multi-point calibrating and data storage (1000 groups), in line with GLP specifications and ISO7027 standards.
INESAA Turbidity Meter is an instrument used to measure the degree of scattering and attenuation of light produced by insoluble particulate matter suspended in water (or transparent liquid) and to quantitatively characterize the content of these suspended particulate matter. It is widely used in water plants, food, chemical industry, power plants, metallurgy, environmental protection, beverage, winemaking, industry and other departments, and is a commonly used laboratory instrument.
Features
◆ Using microcomputer technology, color LCD touch screen display, more intuitive and convenient operation;
◆ Scattered-transmitted light measurement principle and ratio calibration
◆ Automatic range switching, support multi-point calibration
◆ It has the function of average measurement; It can store 1000 sets of test data, and the data can be saved, printed and uploaded
◆ The setting function of time and date is in line with GLP specifications and ISO7027 industry standards
◆USB communication interface and U disk to read data, support connection to PC for data upload
INESA WGZ-100 Turbidity MeterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | Halogen lamp 6V, 10W |
| receiving element | Photocells, photovoltaic cells |
| Measurement range | 0.000~50.00NTU、50.01~100.0NTU |
| Display mode | LCD touch screen digital display |
| resolution | 0.001 |
| error of indication | ≤±6% |
| Zero drift | ≤±0.3%FS |
| Indication Stability | ≤±1%FS |
| Repeatability | ±0.5%F.S |
| sample bottle | Φ25mm×95mm |
| sample Capacity | 30ml-40ml |
| store data | 1000 sets |
| Calibration Point | 3 point |
| Communication interface | USB/U disk |
| printer | RD-TH32-SC (optional) |
| Power supply Voltage | 220V±22V 50Hz±1Hz |
| Dimension | 358*323*160mm |
| Net Weight of instrument | 6kg |
INESA WGZ-100 Turbidity Meter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
