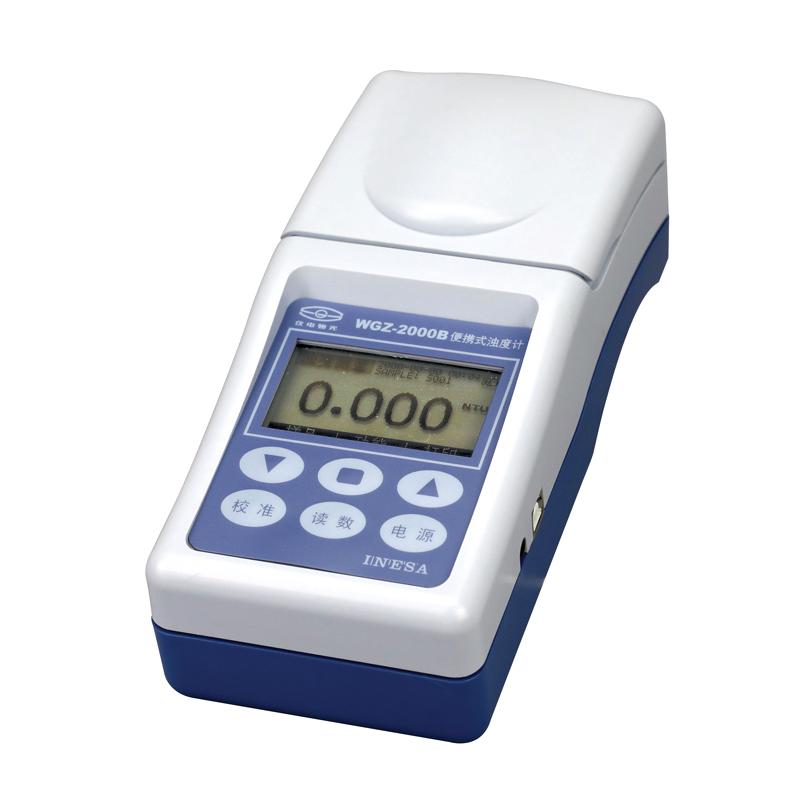

INESA WGZ-2000B Portable Turbidity Meter

Adopt LED Infrared source and scatter-transmit light measurement principle to provide accurate turbidity measurement, support NTU, FTU and other multi-unit switching. With automatic range switching, multi-point calibrating and data storage 2000 group functions, in line with ISO7027 standard

Brand

SKU: NB027983

INESA

Model

WGZ-2000B

Price

$ 770.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

INESA shopSE

Information

Datasheet RFQ Contract Video Catalog

What else did others buy

Qiwei WGZ-20B Precision Portable Turbidity Meter 0~20NTU

$ 203.00
YueFeng SGZ-6AXJ Portable Bacterial Turbidity Meter 0~6.000MCF

$ 739.00
Qiwei WGZ-1B Precision Portable Turbidity Meter 0~200NTU

$ 181.00
Yuefeng SGZ-200AS interface Turbidity Meter

$ 273.00
Qiwei WGZ-500AS Microcomputer Turbidity Meter 0~500NTU

$ 257.00

Genuinegoods

INESA WGZ-2000B Portable Turbidity MeterOverview
Specifications
Comments
FAQs

WGZ-2000B

Portable Turbidity Meter

A Turbidity Meter is an instrument used to measure the degree of scattering and attenuation of light produced by insoluble particulate matter suspended in water (or transparent liquid) and to quantitatively characterize the content of these suspended particulate matter. It is widely used in water plants, food, chemical industry, power plants, metallurgy, environmental protection, beverage, winemaking, industry and other departments, and is a commonly used laboratory instrument.

Features

Adopt microcomputer technology, low-power configuration, touch keyboard, with backlit LCD screen;

LED infrared light source, battery powered and USB powered, with automatic power-off power saving function

Scattered-transmitted light measurement principle, ratio calibration

Automatic range switching, support multi-point calibration

With average measurement function; It can store 2000 sets of test data, and the data can be saved, printed and uploaded

The setting function of time, date, sample name and user name is in line with GLP specifications and ISO7027 industry standards

USB communication interface, support to connect to PC for data upload

Serial models

Instrument model	WGZ-20B	WGZ-50B	WGZ-100B	WGZ-200B	WGZ-500B	WGZ-1000B	WGZ-2000B
Light source/wavelength	LED lamp/860nm wavelength
Unit switching	NTU, FTU, EBC, ASBC turbidity units
Measuring range	0.000-20.00	0.000-20.00	0.000-20.0 020.01-100.0	0.000-20.00 20.01-200.0	0.000-20.00 20.01-200.0 200.1-500.0	0.000-20.00 20.01-200.0	0.000-20.00 20.01-200.0
		20.01-50.00				200.1-1000	200.1-2000
How it is displayed	Liquid crystal display
Minimum reading	0.001
Indication error	≤±6%
Zero drift	≤±0.5%FS
Stability of the indication	≤±0.5%FS
Instrument repeatability	≤0.5%
Data Storage	2000 groups
Communication interface	USB
printer	Dot matrix printer CKNT-T24S (optional)
Calibration method	2 points	3 points	4 points	4 points	5 points	6 points	7 points
Vials	Ф25mm×65mm
Sample capacity	20ml-30ml
power supply	4 x AA alkaline batteries, 5V/USB power supply
Instrument size	220mm×95mm×85mm
Net weight of the instrument	0.65kg

INESA WGZ-2000B Portable Turbidity MeterSpecifications

LIST	VALUE
Light source/wavelength	LED light/860nm wavelength
Unit switch	NTU, FTU, EBC, ASBC turbidity units
Measurement range	0.000~20.00NTU；20.01~200.0NTU；200.1~2000NTU
Display mode	liquid crystal display
minimum reading	0.001
error of indication	≤±6%
Zero drift	≤±0.5%FS
Indication Stability	≤±0.5%FS
Repeatability	±0.5%F.S
data storage	2000 groups
Communication interface	USB
printer	Needle printer CK NT-T24S (optional)
Calibration Point	7 point
sample bottle	Ф25mm×65mm
sample Capacity	20ml-30ml
Power Supply	4 AA alkaline batteries, 5V/USB Power Supply
instrument size	220mm×95mm×85mm
Net Weight of instrument	0.65kg

INESA WGZ-2000B Portable Turbidity Meter Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
