PERFECT PT-GD 55 Micrometer Applicator, effective application width 200mm

Baoda PT-GD 55 adjustable fabricator is an effective application width of 55mm adjustable Film Applicator, PT-GD adjustable film thickness range of 10-3000um, film accuracy of +/- 2μm.

Brand

SKU: NB028013

Perfect

Model

PT-GD 55

Get Quote

Perfect

Information

Datasheet Catalog

What else did others buy

CHINA SZQ-150 15/30/60/90μm 4-sided film Applicator Wet Film Applicator

$ 257.00
JINGKELIAN KTQ-II 100 adjustable Coating Applicator application width of 100mm

$ 249.00
TRUIT TR 3101/200 adjustable drawdown blade Coating Applicator film width 200mm

$ 304.00
Zehntner ZUA2000.200 adjustable wet Film Applicator 200mm Film Applicator

$ 2589.00
CHINA 4-sided wet-Film Applicator SZQ-160 100/200/300/400μm

$ 265.00

Genuinegoods

Perfect PT-GD 55 Adjustable generatorOverview
Specifications
Comments
FAQs

PT-GD 55

Adjustable generator

Introduction

The PT-GD adjustable preparer, also known as the adjustable Film Applicator, is by adjusting the two differentiators above the Film Applicator, the lower scraper can be adjusted up and down to control the gap, that is, the thickness of the final coating. Suitable for research projects that accurately evaluate the nuances of film thickness.The PT-GD adjustable preparer is an optional accessory for the coater.

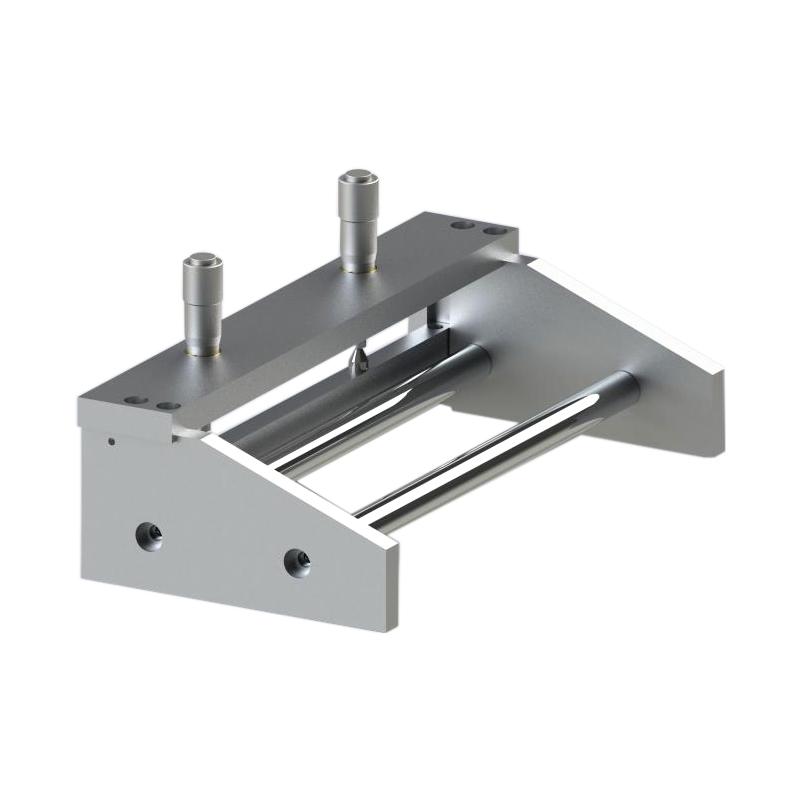

Baoda Instrument PT-GD 55 Adjustable Preparer Details Figure 1

Comparison of PT-GD series model parameters

Product model	PT-GD 55	PT-GD 100	PT-GD 150	PT-GD 200	PT-GD 250	PT-GD 300
Effective Scraping Width (mm)	55	100	150	200	250	300
Scraper material	Made of stainless steel, the scraper can be lifted
Coating film thickness	10-3000um adjustable
precision	±2 μm
Size (WDH)mm	11278100	112123100	170115105	220115105	270115105	320115105
Scraper unit spacing	10um

Perfect PT-GD 55 Adjustable generatorSpecifications

LIST	VALUE
type	Adjustable
WFT	10~3000um
Application width	55mm
Accuracy	±2 μm
material	stainless steel
size	11278100mm
Drawdown blade unit spacing	10um

Perfect PT-GD 55 Adjustable generator Packing list

Adjustable generator x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
