YUEPING NDJ-9S Digital Viscometer 6000000mPa · s

Digital display, Measurement range 1~ 6000000mpa.s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1/0 3/0.6/1.5/3/6/12/30/60rpm, Measurement accuracy +/- 3% F.S

Brand

SKU: NB028044

YuePing

Model

NDJ-9S

Price

$ 638.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

YuePing shopSE

Information

Datasheet RFQ Contract Manual

What else did others buy

NIRUN SNB-2 Digital Rotational Viscometer Measurement range 10~6 million mPa · s

$ 1462.00
FANGRUI SNB-2 Digital Rotational Viscometer Viscosity range 1~ 6 million cp

$ 556.00
FANGRUI SNB-2 + DVT Digital Rotational Viscometer Real-time Viscosity Linear dispersion

$ 665.00
FANGRUI instrument NDJ-5T Digital Rotational Viscometer with PT100 temperature probe

$ 629.00
SDPTOP NDJ-8S Digital Rotational Viscometer measuring range: 10~2 × 1000000mPa·s

$ 733.00

Genuinegoods

YuePing NDJ-9S Digital ViscometerOverview
Specifications
Comments
FAQs

NDJ-9S

Digital Viscometer

Digital display, Measurement range 1~ 6000000mpa.s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1/0 3/0.6/1.5/3/6/12/30/60rpm, Measurement accuracy +/- 3% F.S

Introduction

NDJ-9S digital rotary viscometer has the advantages of quick and easy operation, high measurement accuracy, stable speed, good anti-interference performance, and wide working Voltage (110V, 220V, 50Hz, 60Hz are all available). The instrument has the function of the % of the measured value in the full scale, which is convenient for the user to choose the rotor and rotational speed for accurate measurement of the liquid.

Features

NDJ-9 Digital Rotational Viscometer is an intelligent instrument based on 16-bit high-performance single-chip micro-processing technology, widely used in the determination of solvent-based adhesives, latex, biochemical products, paints, coatings, cosmetics, inks, pulp, food , starch, etc.

Product Structure

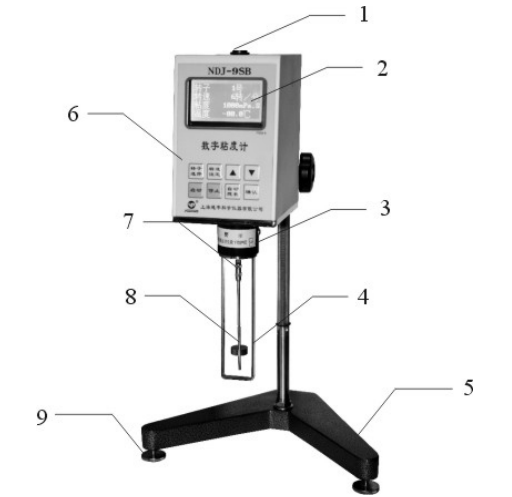

Yueping NDJ-9S Digital Viscometer Details Figure 1

(1) level bubble; (2) liquid crystal display screen; (3) outer cover; (4) rotor protection frame; (5) host base; (6) operation keyboard; (7) rotor connector; (8) rotor; ( 9) The horizontal adjustment knob of the host base

Pictures

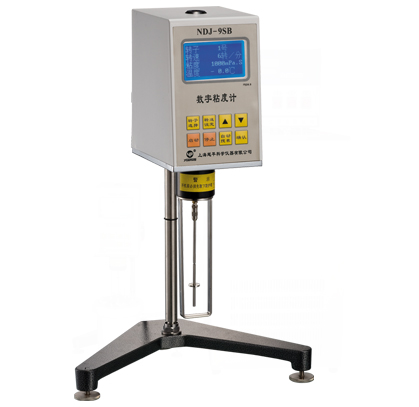

Yueping NDJ-9S Digital Viscometer Details Figure 2

YuePing NDJ-9S Digital ViscometerSpecifications

LIST	VALUE
Display mode	digital explicit
Measurement range	1~6000000mpa.s
Rotor specification	1 #, 2 #, 3 #, 4 #(0 #optional)
Rotor speed	0.1/0.3/0.6/1.5/3/6/12/30/60rpm
Measurement Accuracy	±3%F.S
Power	110V，220V，50Hz，60Hz
Operating temperature	5~35℃
Dimensions	95 * 130 * 155Mm (excluding base)
Weight	2Kg (excluding base)
Packing size	475mm×220mm×375mm
Allowable Relative Humidity	≤80%

YuePing NDJ-9S Digital Viscometer Packing list

host x1, (No. 1, 2, 3, 4) rotor x1, bracket x1, power adapter x1, base x1, lifting column x1, manual x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
