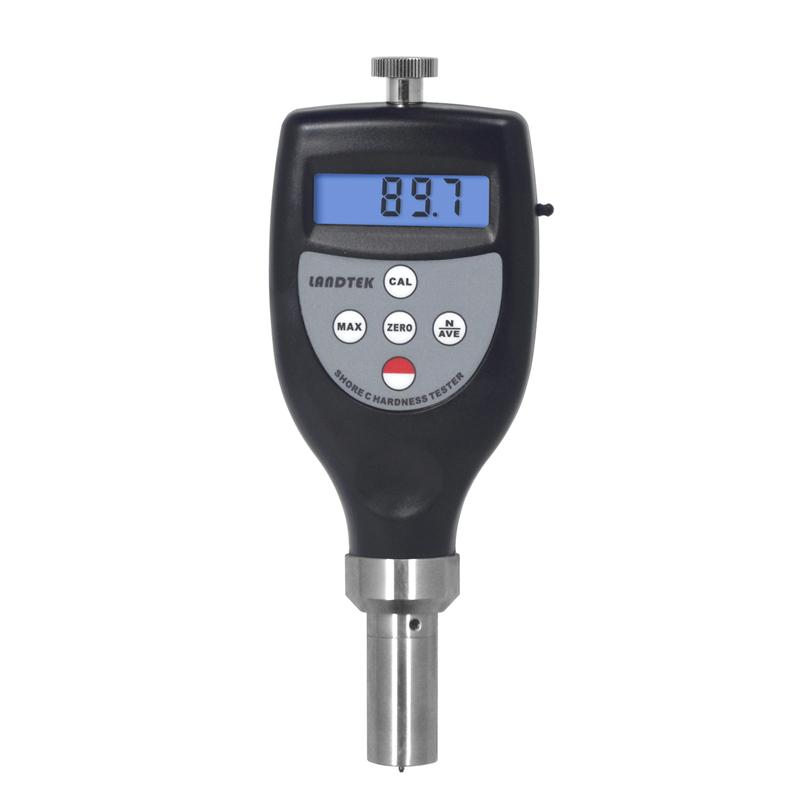

LANDTEK HT6510A Shore Durometer for on-site Hardness measurement of finished rubber and plastic products
HT6510A precision Hardness Tester measurement materials are: soft rubber, soft vulcanized rubber, natural rubber, NBR, thermal plasticity, plastic, thermal plasticity resilience, wax, felt products, leather products, etc.
LANDTEK
HT6510A
HT6510D
HT6510F
-
TQC LD0550 Shore durometer A measurement of soft materials such as coatings, plastics, rubber and other indentation hardness
$ 893.00 -
LEEB810D Shore Durometer (D type) Hardness measurement of hard plastics, hard rubber and other chemical products
Login -
Hypertherm HS-AO digital Shore AO Hardness Gauge
$ 385.00 -
Microporous material Hardness Gauge LX-C HBO foam, sponge, rubber microporous material and other low hardness testing meter
$ 136.00 -
LIULING LX-AM thin rubber hardness gauge machine
$ 1081.00
Overview of HT-6510A Shore Hardness Tester
The Shore Hardness Tester is used to measure the indentation hardness of materials. ThisHT6510AShore Hardness Tester is a hand-held portable Shore Hardness Tester with a small LCD display showing the hardness value reading. The indentation of different types of Shore Hardness Testers Different needles measure different types of materials.
Among them, the measurement materials of HT6510A are: soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastic, plastic, thermoplastic elastomer, wax, felt products, leather products, etc.;
Features of HT-6510 A Shore Hardness Tester
LANDTEK Shore Hardness Tester HT-6510A complies with the following standards: "Rubber Pocket Hardness Test Method for Indentation Hardness" GB/T 531-1999; "Plastic Shore Hardness Test Method" GB/T 2411-80; DIN 53505; ISO 868; ISO 7619; ASTMD 2240; JISK7215.
* Average calculation function.
* Maximum value latch function.
* UnderVoltage alarm indication function.
* LANDTEK Shore Hardness Tester HT6510A uses "USB data line output" and "RS-232 data line output" to communicate with PC.
* LANDTEK Shore Hardness Tester HT6510A provides Bluetooth data output option.
* Using computer technology, digital filtering technology and many other professional technologies to accurately measure the hardness value of materials.
* Digital display, no parallax.
plan
Shutdown method of HT-6510 Shore Hardness Tester
1. Manual shutdown; 2. Automatic shutdown. At any time, as long as you press the multi-function button until the display shows OFF, you can manually turn off the power of the whole machine when you release the button; in addition, if you do not operate or press any button within 60s, it will automatically turn off.
Shore Hardness Tester application
LANDTEK HT6510A Shore Hardness Tester is suitable for on-site hardness measurement of rubber and plastic products.
HT-6510 model comparison table
| model | Stylus | Applications of material hardness testing | Hardness value |
| A | 0.79 truncated cone | Soft rubber, soft vulcanized rubber, natural rubber, Nitrile rubber, thermoplastics, plastics, thermoplastic elastomers, waxes, felt products, leather products | 20~90A |
| B | R0.1 cone | Moderately hard rubber, thermoplastics, thermoplastic elastomers, paper products, fiber materials | More than 90A, less than 20D |
| C | 0.79 truncated cone | Medium hardness rubber, medium hardness plastics and thermoplastics, thermoplastic elastomers | Greater than 90B, less than 20D |
| D. | R0.1 cone | Hard plastics, hard rubbers, hard thermoplastics, thermoplastic elastomers | More than 90A |
| do | R1.2 hemispherical | Moderately hard rubber, thermoplastics, thermoplastic elastomers, high density textile spindles | Greater than 90C, less than 20D |
| o | R1.2 hemispherical | Soft rubber, thermoplastics, thermoplastic elastomers, very soft plastics and thermoplastics, medium density textile spindles | less than 20DO |
| OO | R1.2 hemispherical | Very soft rubber, plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissues | less than 20O |
| E. | R2.5 hemispherical | Hard sponge, EVA | Greater than 90DO, less than 20D |
LANDTEK HT6510A Shore Shore DurometerSpecifications
| LIST | VALUE |
|---|---|
| measurement unit | HA |
| Crimping head size | 0.79 Truncated cone |
| application field | Soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermal plasticity, plastics, thermal plasticity resilience, waxes, felt products, leather products |
| Measurement Range | 20~90A |
| Display parameters | Hardness/Average/MAX Maximum |
| measurement error | ≤±1H |
| resolution | 0.1H |
| Low Voltage prompt | √ |
| Operating Environment | Temperature: 0~50 ℃; Humidity: < 80% RH |
| Power Supply | 4 AA batteries |
| Dimensions | 162*65*28mm |
| Weight | 173g |
| Optional accessories | Shore hardness Tester test bracket, rubber hardness testing block (type A/D), RS-232 cable and software, Bluetooth adapter and software |
LANDTEK HT6510A Shore Shore Durometer Packing list
host x1, portable box x1, manual x1, Shore stylus length test card x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
