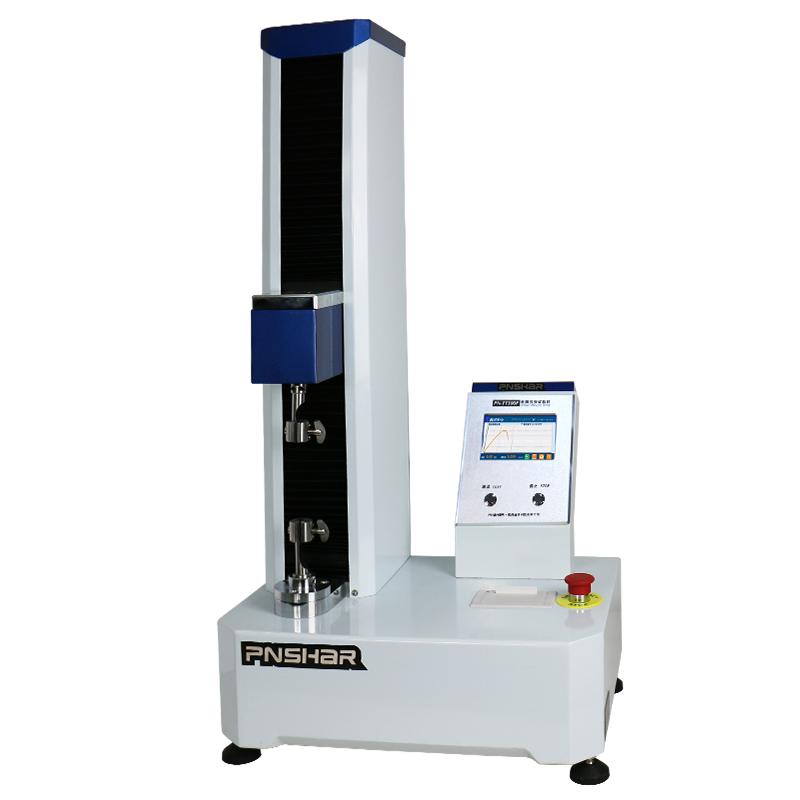

PNSHAR PN-BL80 adhesive peel strength Tester

PN-BL80 adhesive peel strength Tester is a towel (pad) peel strength testing instrument designed and developed in accordance with the national standard GB/T8939, which is mainly suitable for women's external physiological products menstrual towel, non-menstrual towel (pad) and standard jersey 180° peeling.

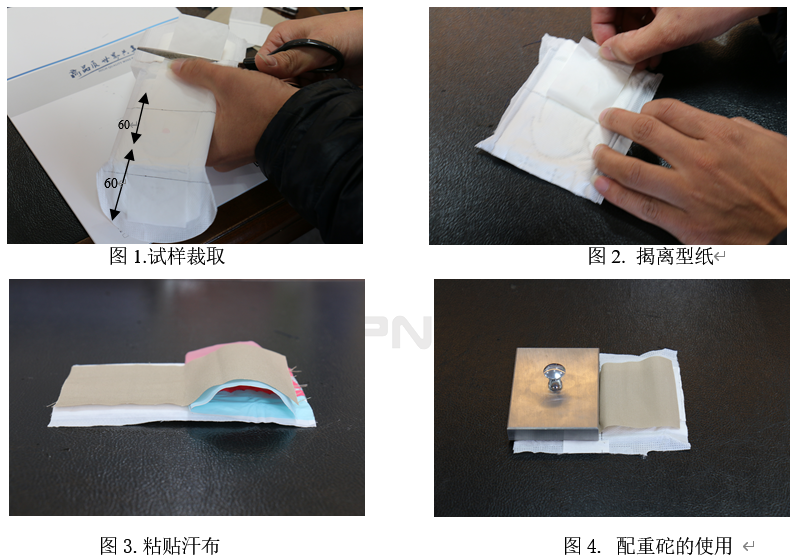

Detection principle:The standard jersey is attached to the adhesive of the towel (pad), and after a period of treatment under the specified conditions, the towel (pad) and the standard jersey are peeled off at 180 degrees, and the average value of the peeling force within the specified peel displacement is calculated, and the average value of the peeling force is used to represent the adhesive peeling performance of the towel (pad).

The instrument adopts a vertical structure, the chuck spacing can be set arbitrarily within a certain range, the stretching stroke is large, it is a mechatronics product, using modern mechanical design concepts and ergonomic design guidelines, and the use of professional high-speed ARM processor is carefully and reasonably designed and made, which is a novel design, easy to use, excellent performance of the adhesive peel strength Tester.

 Execution standards

GB/T8939

 Features

1. Imported stepper motor control and subdivision technology are used to make the instrument accurate positioning and fast response, which saves test time and improves test efficiency;

2. Over-range alarm function to protect precision sensors;

3. Adopt high-speed ARM processor, high degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable;

4. Adopt 24-bit high-precision AD converter (resolution up to 1/10,000,000) and high-precision load cell to ensure the rapidity and accuracy of instrument force data collection;

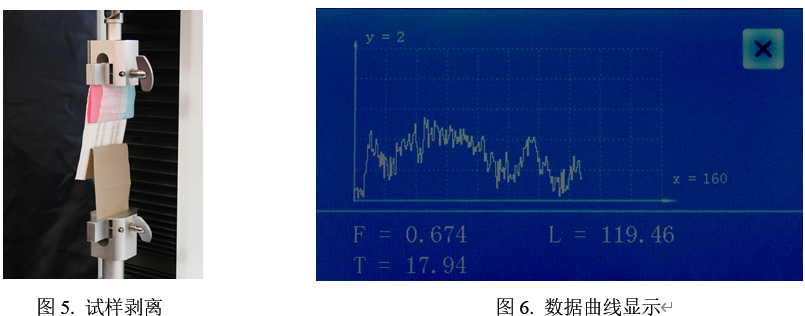

5. It can display the pressure and deformation curve graph, and display the peeling force, peeling time and other information in real time;

6. Chinese and English bilingual operation menu (Chinese-English), and can be switched at any time;

7. It can be connected to computer software, and has the function of real-time display of compressive curve and data analysis management, saving, printing and other functions;

8. Instruments with special range and stroke parameters can be customized according to customer needs.

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
