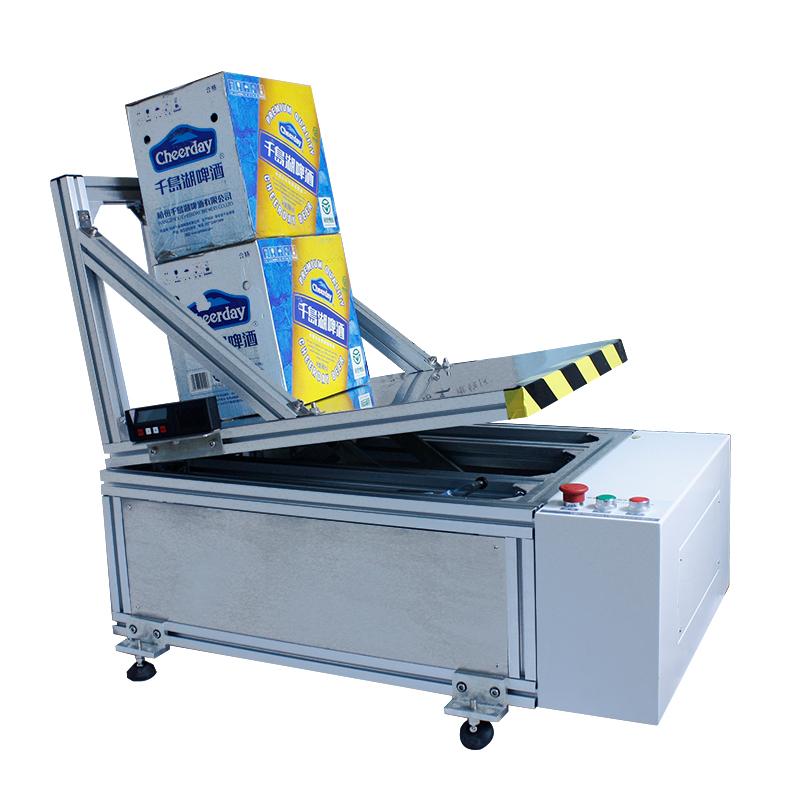

PNSHAR PN-SAT Carton Sliding Angle Tester
PN-SAT carton sliding angle Tester is used to test the anti-skid performance of cartons. When beer boxes or Miscellaneous Encasement boxes are stacked and transported, if the surface friction coefficient is too small, it is easy to cause slippage. Through this machine test, it is used to improve the anti-skid performance of Encasement.
PNshar
PN-SAT
-
Huicheng DSC-600C/-40~600 Differential Scanning Calorimeter -40 ℃~ 600 ℃
$ 8730.00 -
PUSHEN PVC vinyl sheet, black plastic sheet coating stain resistance test
$ 125.00 -
XINGHUO ZTT-910A Reflective film anti-stick paper disbonding performance Tester
$ 503.00 -
CHENCHI PYL-2 Digital Display Polarizing Stress Meter
$ 2029.00 -
AMITTARI AT-137PC intelligent Rotation speed meter, photoelectric contact dual-use 2.5-9999 9r/min
$ 312.00
PN-SAT carton slip angle Tester is used to test the anti-slip performance of cartons. When the beer case or other packaging boxes are stacked and transported, if the surface friction coefficient is too small, it is easy to cause slippage, and the machine test is used to improve the slip resistance of the package. In order to minimize the impact of defective corrugated and fiber cartons on their in-line work efficiency/process loss, and to determine the in-line operation of the relevant packaging materials, a special instrument for measuring the friction angle of various cartons was specially developed. The in-line sliding performance test of special beer crates and beverage packaging crates is very beneficial.
The relationship between the carton sliding angle and the static friction coefficient: the static friction coefficient is the tangent value of the carton sliding angle. The coefficient of static friction can be calculated by measuring the sliding angle.
Test Principle:
Two cartons containing physical objects are stacked together, placed on the platform of carton sliding angle Tester, the platform rotates with a certain angular velocity, when the two carton samples slide relatively, the motor stops rotating, and the inclination angle of the inclinometer records the inclination angle at this time is the carton sliding angle.
The testing machine is composed of a test platform, a motor, a digital inclinometer, a braking device and a control box, with high control accuracy, and adopts a professional mechanical structure, motor control and angle digital display of the single screw connecting rod mechanism.
The instrument has the characteristics of compact structure, full function, convenient operation, stable performance, and reliable safety protection.
PNshar PN-SAT Carton sliding angle TesterSpecifications
| LIST | VALUE |
|---|---|
| Power supply Voltage | AC 220V±10% 5A 50Hz |
| Error of indication | ±1% |
| Indication variability | ≤1% |
| Resolution | 0.1° |
| Measurement range | 0.1°~35° |
| Tilt speed | (1.5±0.2)°/s |
| Operating Environment | Indoor temperature (20 +/- 10) ℃; Relative Humidity < 85% |
| Dimensions | 920*560*770mm |
| Weight | Approx. 118kg |
PNshar PN-SAT Carton sliding angle Tester Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
