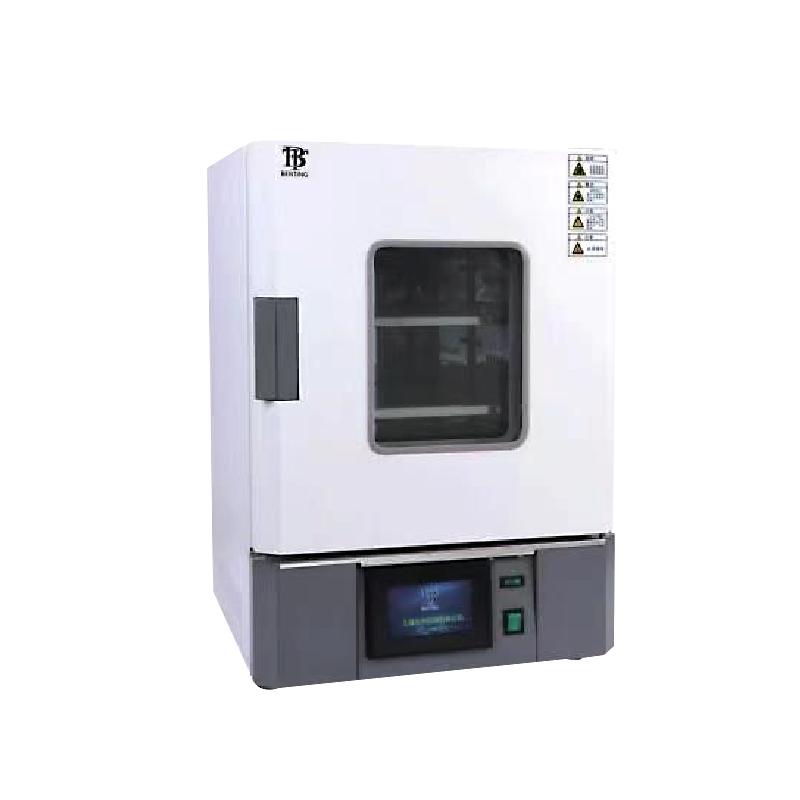

BENTING CBGLL-30BE vertical intelligent Forced Air Drying Oven 300 ℃/30L

Overview

BGLL series Forced Air Drying Oven has the characteristics of excellent design, novel shape, professional technology, accurate temperature control, stable performance, easy maintenance, convenient operation, etc. It is suitable for drying, baking, For wax melting and heat treatment.

Features

1. Novel vertical design, enclosure is made of high-quality steel plate, the surface is treated by electrostatic spraying process, the appearance is beautiful, anti-corrosion and durable.

2. The four corners are in a circular arc transition, the distance between the partitions is adjustable, and the side plate of the air duct and the bottom heating cover are quick-detachable structures, which are easy to clean.

3. The unique bottom blowing and bottom heating of the turbine centrifugal fan blades are reasonably coordinated, and the vertical double air duct vertical hot air circulation design makes the temperature distribution in the working room more uniform.

4. The speed-adjustable fan can adjust the required air volume according to different experimental requirements of users, which not only ensures the temperature uniformity in the working room, but also does not blow powdery objects.

5. Large-screen LCD, multiple sets of data can be displayed on one screen, unique navigation operation keys, and the use method is more humanized. Timing and over-temperature alarm function, with parameter memory and call reply function to protect data loss due to power failure and crash state.

6. There is an independent temperature limit alarm system. When the main controller fails, it will alarm and cut off the output in time. The double protection ensures the safe operation of the experiment without accidents.

7. Optional 485 interface, can be connected to a computer, and can remotely monitor the change status of temperature parameters.

8. The door adopts a new structure with good heat insulation effect. There is a double-layer tempered glass observation window with a large Viewing Angle in the middle, equipped with a lock-type elastic adjustment door lock, and a high-temperature-resistant silicone sealing strip to ensure good sealing and prevent heat loss. .

Note: BGLL-230BE and BGLL-625BE have no fan speed regulation function; BGLL-625 is top blower.

Parameter comparison

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
