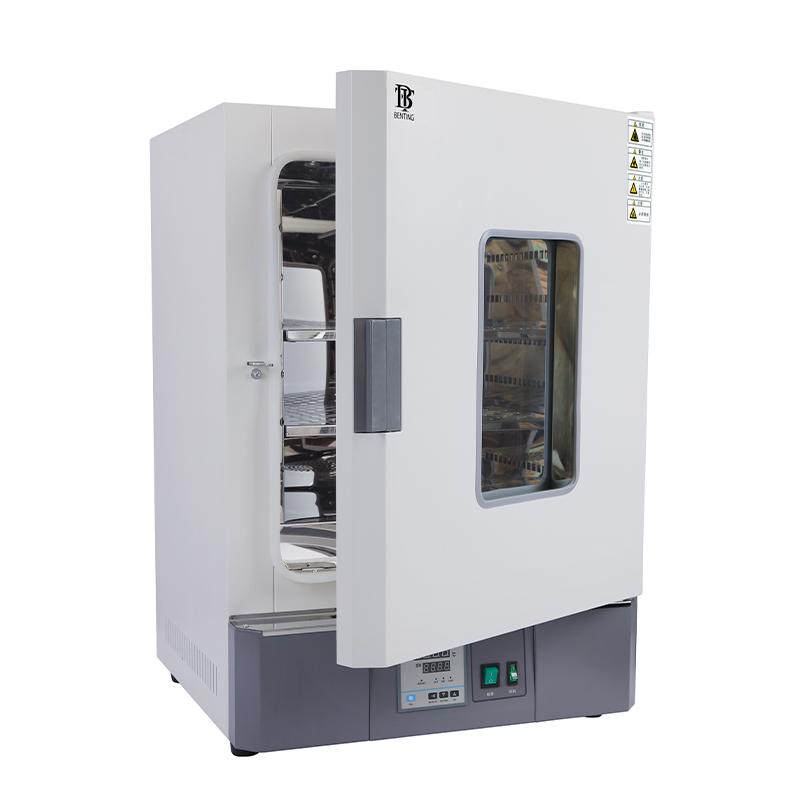

BENTING CBX65B hot air sterilizing box, dry sterilizing box 1.6kw/65L
BENTING CBX65B hot air disinfection box is an experimental dry heat Autoclave with a power of 1.6kw and an inner chamber size of 350 * 350 * 350mm. CBX65B hot air disinfection box Temperature range RT + 10~300 ℃, inner volume 65L, built-in 9 layers Shelf.
BenTing
CBX65B
-
CHINA DHG-9240B vertical Forced Air Drying Oven experiment electric heating cycle oven 300 ℃/225L
$ 635.00 -
BOZHEN DZF-6020 Vacuum Oven 250 ℃/stainless steel
$ 509.00 -
YIHENG DHG-9035A Forced Air Drying Oven Stainless steel liner Power 850W
$ 484.00 -
CHINA DHG-9240AE vertical Forced Air Drying Oven Laboratory Oven 200 ℃/225L
$ 689.00 -
SANFA GRX-140 Hot Air Sterilization Oven (Dry Heat Sterilizer) 140L
$ 722.00
Features
● Rapid, safe and reliable sterilization.
● Convenient operation, fixed value operation, timing operation, automatic stop.
● Special function keys for temperature setting.
● Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
● Vertical double air duct air jacket, centrifugal forced air supply from turbine, more uniform temperature.
● Adjustable speed fan enables light, fine and powdery samples to be used.
● Forced fan heat dissipation and air intake structure, so that the working temperature of the fan is <50°C, and it can run for a long time.
safety
● Overheating alarm, menu lock, overheating prevention
Parameter comparison
| model | rated power | Internal volume | Partition layers |
| BX30B/BX30BE | 0.8kw | 30L | Level 6 |
| BX45B/BX45BE | 1.2kw | 45L | 7 floors |
| BX65B/BX65BE | 1.6kw | 65L | 9 floors |
| BX125B/BX125BE | 2.3kw | 125L | 13 floors |
| BX230B/BX230BE | 3.0kw | 230L | 17 floors |
| Other parameters | |||
| Way | Dual duct forced convection | ||
| Operating temperature range | RT+10～300℃ | ||
| temperature resolution | 0.1°C | ||
| temperature fluctuation | ±1℃ | ||
| Temperature distribution accuracy | ±2.5% | ||
| Interior | stainless steel plate | ||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | ||
| Insulation material | Aluminum silicate fiber | ||
| temperature control method | B type: digital tube double row PID; BE type: liquid crystal double row PID | ||
| temperature setting method | Touch four buttons to set | ||
| Temperature representation | Type B: measured temperature display: 4-digit upper display; set temperature display: 4-digit lower display | ||
| BE type: Measured temperature display: LCD upper display; Set temperature display: LCD lower display | |||
| timer | 0～9999 minutes (with timing waiting function) | ||
| running function | Fixed value operation, timing operation, automatic stop | ||
| program mode | Optional | ||
| Additional features | Deviation correction, menu key lock, power failure compensation, power failure memory, speed regulating fan (BE type: overheating preventer) | ||
| sensor | Pt100 | ||
| safety devices | Overheating alarm (BE type: overheating preventer) | ||
| Partition | 2 pieces | ||
| shelf | 4 pieces | ||
| Remark | GX230B/BE non-adjustable speed fan | ||
BenTing CBX65B Disinfection boxSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300°C |
| Temperature fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2.5% |
| Volume | 65L |
| Interior size | 400*360*450mm |
| Inner chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 9pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/7.2A |
| Input power | 1.6Kw |
| Dimensions | 550*550*840mm |
| Net Weight | 44kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Convection mode | Double duct forced convection |
| Thermal insulation material | aluminum silicate fiber |
| heater | Stainless steel heating tube |
| Exhaust port | Inner diameter 28mm * 1, top |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, speed control fan |
| Temperature transducer | pt100 |
| Safety Devices | Overrise alarm |
| Packing size | 640*640*905mm |
| Gross Weight | 49Kg |
| Shelf (std.) | 4pcs |
| Shelf spacing | 35mm |
BenTing CBX65B Disinfection box Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
