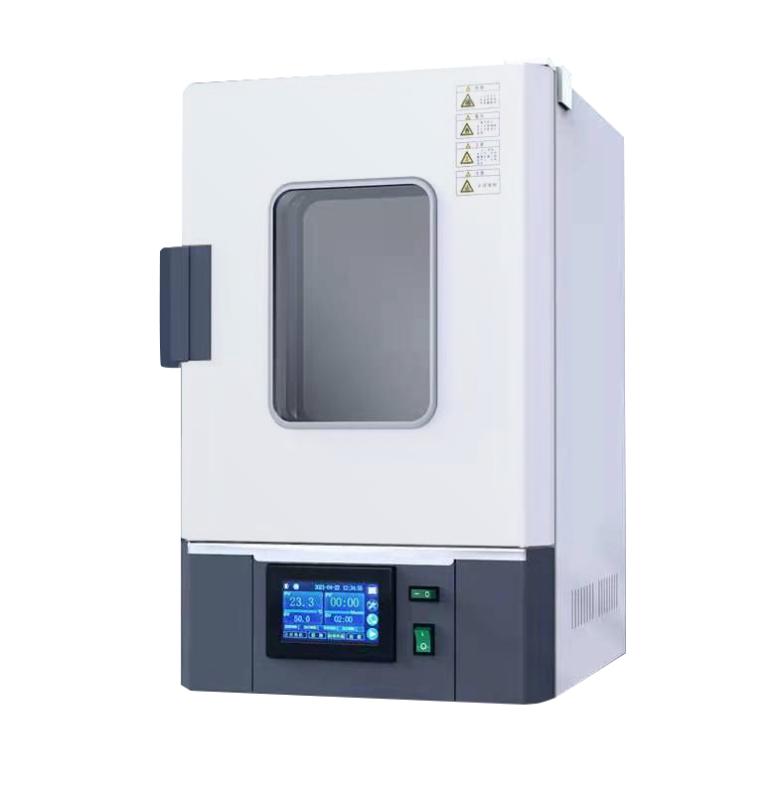

BENTING CBX230BE Hot Air Disinfection Box, LCD 230L
BENTING CBX230BE hot air disinfection box is an LCD dry baking Autoclave, using double air duct forced convection, the heating power of CBX230BE hot air disinfection box is 0.8KW, the inner chamber volume is 230L, and the heater is a nickel-chromium alloy heating wire.
BenTing
CBX230BE
-
Huitai HHG-9148A high temperature Forced Air Drying Oven, volume 140L
$ 1083.00 -
BOZHEN DHG-9925A vertical Forced Air Drying Oven
$ 3150.00 -
YIHENG GRX-9053A hot air sterilizer, input power 1100W
$ 588.00 -
Kenton KH-75AS digital electric air blowing dryer 250 ℃/225L with independent temperature limiter
$ 744.00 -
BOZHEN DHG-9025A Desktop Forced Air Drying Oven
$ 372.00
Features
● Rapid, safe and reliable sterilization.
● Convenient operation, fixed value operation, timing operation, automatic stop.
● Special function keys for temperature setting.
● Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
● Vertical double air duct air jacket, centrifugal forced air supply from turbine, more uniform temperature.
● Adjustable speed fan enables light, fine and powdery samples to be used.
● Forced fan heat dissipation and air intake structure, so that the working temperature of the fan is <50°C, and it can run for a long time.
● LCD multi-data full-screen operation display, power failure memory, power failure compensation.
● Overheating preventer
safety
● Overheating alarm, menu lock, overheating prevention
Parameter comparison
| model | rated power | Internal volume | Partition layers |
| BX30B/BX30BE | 0.8kw | 30L | Level 6 |
| BX45B/BX45BE | 1.2kw | 45L | 7 floors |
| BX65B/BX65BE | 1.6kw | 65L | 9 floors |
| BX125B/BX125BE | 2.3kw | 125L | 13 floors |
| BX230B/BX230BE | 3.0kw | 230L | 17 floors |
| Other parameters | |||
| Way | Dual duct forced convection | ||
| Operating temperature range | RT+10～300℃ | ||
| temperature resolution | 0.1°C | ||
| temperature fluctuation | ±1℃ | ||
| Temperature distribution accuracy | ±2.5% | ||
| Interior | stainless steel plate | ||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | ||
| Insulation material | Aluminum silicate fiber | ||
| temperature control method | B type: digital tube double row PID; BE type: liquid crystal double row PID | ||
| temperature setting method | Touch four buttons to set | ||
| Temperature representation | Type B: measured temperature display: 4-digit upper display; set temperature display: 4-digit lower display | ||
| BE type: Measured temperature display: LCD upper display; Set temperature display: LCD lower display | |||
| timer | 0～9999 minutes (with timing waiting function) | ||
| running function | Fixed value operation, timing operation, automatic stop | ||
| program mode | Optional | ||
| Additional features | Deviation correction, menu key lock, power failure compensation, power failure memory, speed regulating fan (BE type: overheating preventer) | ||
| sensor | Pt100 | ||
| safety devices | Overheating alarm (BE type: overheating preventer) | ||
| Partition | 2 pieces | ||
| shelf | 4 pieces | ||
| Remark | GX230B/BE non-adjustable speed fan | ||
BenTing CBX230BE Disinfection boxSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300°C |
| Temperature fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2.5% |
| Volume | 230L |
| Interior size | 600*500*750mm |
| Inner chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 17pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/13.6A |
| Input power | 3.0Kw |
| Dimensions | 730*670*1220mm |
| Net Weight | 94kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Convection mode | Double duct forced convection |
| Thermal insulation material | aluminum silicate fiber |
| heater | Nickel-chromium alloy heating wire |
| Exhaust port | Inner diameter 28mm * 2, top |
| thermostat | Liquid crystal dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, speed regulating fan, overlift preventer |
| Temperature transducer | Pt100 |
| Safety Devices | Overlift preventer |
| Packing size | 900*800*1350mm |
| Gross Weight | 120Kg |
| Shelf (std.) | 4pcs |
| Shelf spacing | 35mm |
BenTing CBX230BE Disinfection box Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
