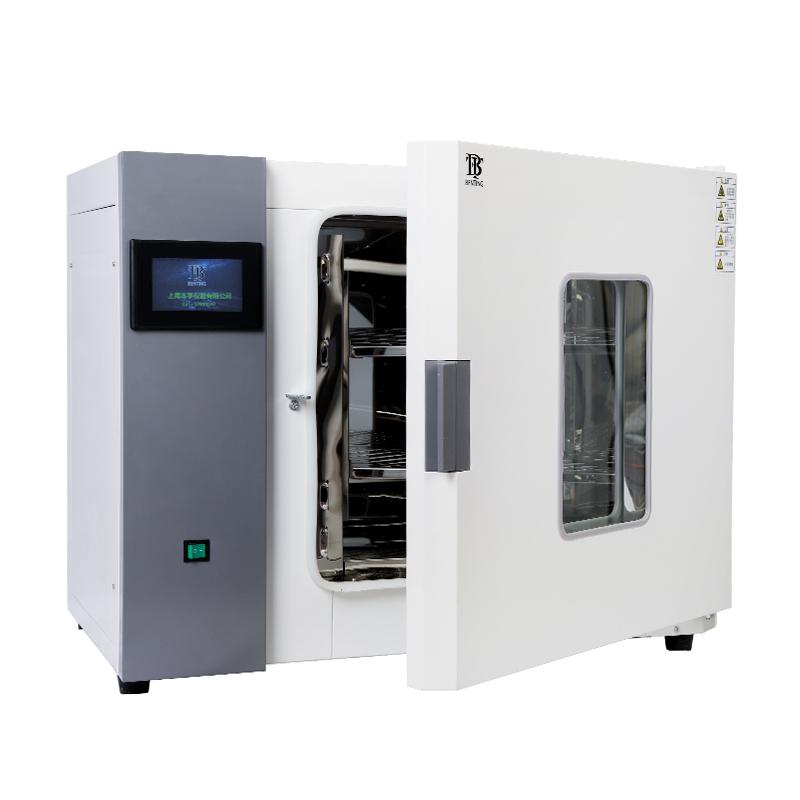

BENTING C101-2AB desktop Forced Air Drying Oven 250 ℃/136L oven
BENTING C101-2AB desktop Forced Air Drying Oven is 101 series laboratory Forced Air Drying Oven, temperature control up to 250 ℃, volume is 136L, C101-2AB desktop Forced Air Drying Oven Interior size 550 × 450 × 550mm, standard 2 shelves.
BenTing-
HUITAI DHG-9240A Experimental blast drying oven temperature control 250 ℃ Volume 220L with test hole 50mm
$ 741.00 -
Kenton KH-35AS digital electric air blowing dryer 250 ℃/42L
$ 364.00 -
Kenton 101-1 Pointer Forced Air Drying Oven 70L with independent temperature limiter
$ 293.00 -
Kenton 202-0A electric heating Drying Oven, digital display electric heating Drying Oven, galvanized tank liner
$ 265.00 -
RONGHUA DHG-9240A Electric thermostatic Drying Oven
$ 694.00
Overview
This product is suitable for drying, baking, wax melting, sterilization and curing in industrial and mining enterprise laboratories, medical and health and scientific research units.
Features
1. The shell is made of high-quality cold-rolled steel plate, and the surface is treated by spraying process. The studio is made of stainless steel or cold-rolled steel plate, and is treated with anti-corrosion process.
2. Intelligent temperature controller, intelligent temperature controller adopts PID control program, digital display, with timing function.
3. There is a double-layer toughened glass observation window in the middle of the box door, which can observe the situation of the heated items in the working room at any time.
4. The door of the box is sealed with a silicone rubber strip, and the sealing effect is good.
5. The blower type is equipped with a low-noise fan and a single air duct design to ensure good temperature uniformity in the working room.
Parameter comparison
| model | heating power | studio size |
| 202-0AB | 1.2 | 350×350×350 |
| 101-0AB | 1.2 | 350×350×350 |
| 202-1AB | 1.6 | 450×350×450 |
| 101-1AB | 1.6 | 450×350×450 |
| 202-2AB | 2 | 550×450×550 |
| 101-2AB | 2 | 550×450×550 |
| 202-3AB | 4 | 600×500×750 |
| 101-3AB | 4 | 600×500×750 |
| Unit: Kw, mm | ||
| Other parameters | ||
| Voltage | 220V/50HZ | |
| Temperature control range | RT+10-250℃ | |
| Constant temperature fluctuation | ±1.0℃ | |
| shelf load | 15kg | |
| Standard shelf | 2 blocks | |
| Note: A means intelligent temperature controller (without A, it is a pointer temperature controller) B means stainless steel working room (without B, it is a good cold-rolled steel plate) 202 means constant temperature Drying Oven 101 means Forced Air Drying Oven Performance parameter test under no-load conditions: ambient temperature 20°C, ambient humidity 50% RH | ||
BenTing C101-2AB Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250°C |
| Temperature fluctuation | ±1.0℃ |
| Volume | 136L |
| Interior size | 550*450*550mm |
| Inner chamber material | stainless steel |
| Shelf (std.) | 2pcs |
| Load per shelf | 15kg |
| Power | 220V/50HZ |
| Input power | 2Kw |
| Environment temperature | 20℃ |
| Environment humidity | 50%Rh |
| Dimensions | 850*600*725mm |
| Net Weight | 58kg |
| Enclosure Material | Cold rolled steel plate |
| Packing size | 1010*740*870mm |
| Gross Weight | 79Kg |
BenTing C101-2AB Forced Air Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
