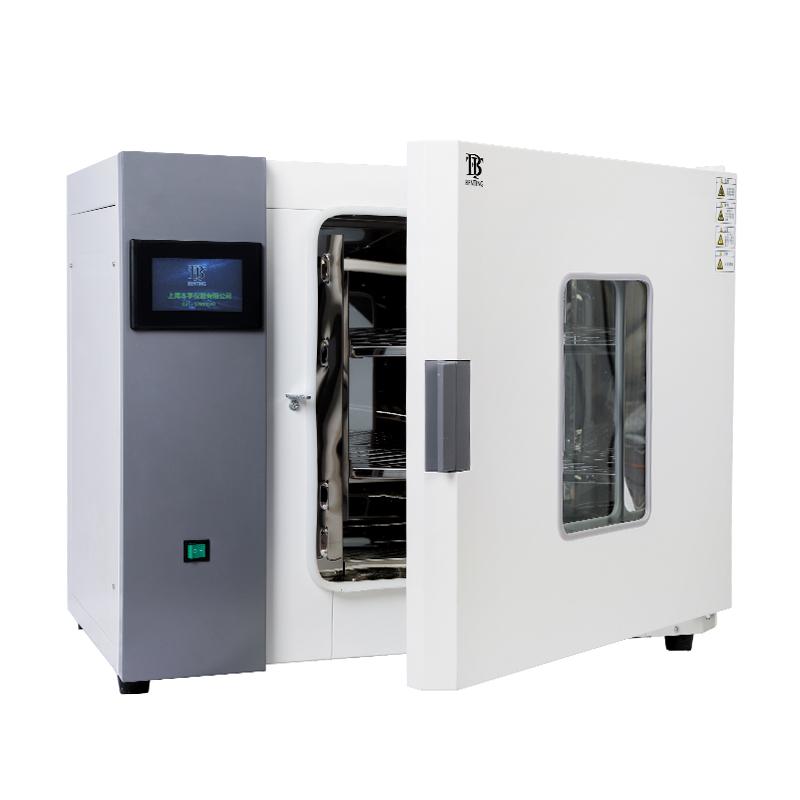

      BENTING C101-3AB desktop Forced Air Drying Oven 250 ℃/225L

      BENTING C101-3AB desktop Forced Air Drying Oven is 101 series laboratory Forced Air Drying Oven, temperature control up to 250 ℃, volume of 225L, C101-3AB desktop Forced Air Drying Oven Interior size 600 × 500 × 750mm, used for drying, baking, melting wax, sterilizing, curing use.

      Brand
      SKU: NB028581
      China BenTing
      Stock
      Loading…
      Price
      Please contact customer service
      Promotion
      Service
        Service
        The delivery and service By NBchao.Com
        VS
        Genuinegoods
        • BenTing C101-3AB Forced Air Drying OvenOverview

        • Specifications
        • Comments
        • FAQs
        C101-3AB
        Forced Air Drying Oven

        Overview

        This product is suitable for drying, baking, wax melting, sterilization and curing in industrial and mining enterprise laboratories, medical and health and scientific research units.

        Features

        1. The shell is made of high-quality cold-rolled steel plate, and the surface is treated by spraying process. The studio is made of stainless steel or cold-rolled steel plate, and is treated with anti-corrosion process.

        2. Intelligent temperature controller, intelligent temperature controller adopts PID control program, digital display, with timing function.

        3. There is a double-layer toughened glass observation window in the middle of the box door, which can observe the situation of the heated items in the working room at any time.

        4. The door of the box is sealed with a silicone rubber strip, and the sealing effect is good.

        5. The blower type is equipped with a low-noise fan and a single air duct design to ensure good temperature uniformity in the working room.

        Parameter comparison

        modelheating powerstudio size
        202-0AB1.2350×350×350
        101-0AB1.2350×350×350
        202-1AB1.6450×350×450
        101-1AB1.6450×350×450
        202-2AB2550×450×550
        101-2AB2550×450×550
        202-3AB4600×500×750
        101-3AB4600×500×750
        Unit: Kw, mm
        Other parameters
        Voltage220V/50HZ
        Temperature control rangeRT+10-250℃
        Constant temperature fluctuation±1.0℃
        shelf load15kg
        Standard shelf2 blocks
        Note:

        A means intelligent temperature controller (without A, it is a pointer temperature controller)

        B means stainless steel working room (without B, it is a good cold-rolled steel plate) 202 means constant temperature Drying Oven 101 means Forced Air Drying Oven

        Performance parameter test under no-load conditions: ambient temperature 20°C, ambient humidity 50% RH


        VS

        BenTing C101-3AB Forced Air Drying OvenSpecifications

        LIST VALUE
        Temperature range RT+10~250°C
        Temperature fluctuation ±1.0℃
        Volume 225L
        Interior size 600*500*750mm
        Inner chamber material stainless steel
        Shelf (std.) 2pcs
        Load per shelf 15kg
        Power 220V/50HZ
        Input power 4Kw
        Environment temperature 20℃
        Environment humidity 50%Rh
        Dimensions 965*706*1065mm
        Net Weight 110kg
        Enclosure Material Cold rolled steel plate
        Packing size 1160*840*1190mm
        Gross Weight 140Kg

        BenTing C101-3AB Forced Air Drying Oven Packing list

        complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        Does this drying oven comply with GB/T16777 standard?
        [A]
        The blast drying oven is suitable for GB/T16777, please consult customer service for detailed application definition
        [Q]
        Can I put 200L samples at about 85 ° C thermostatic?
        [A]
        The machine C101-3AB blast drying oven Temperature range 10-250 ℃, the maximum can put 225L, properly.
