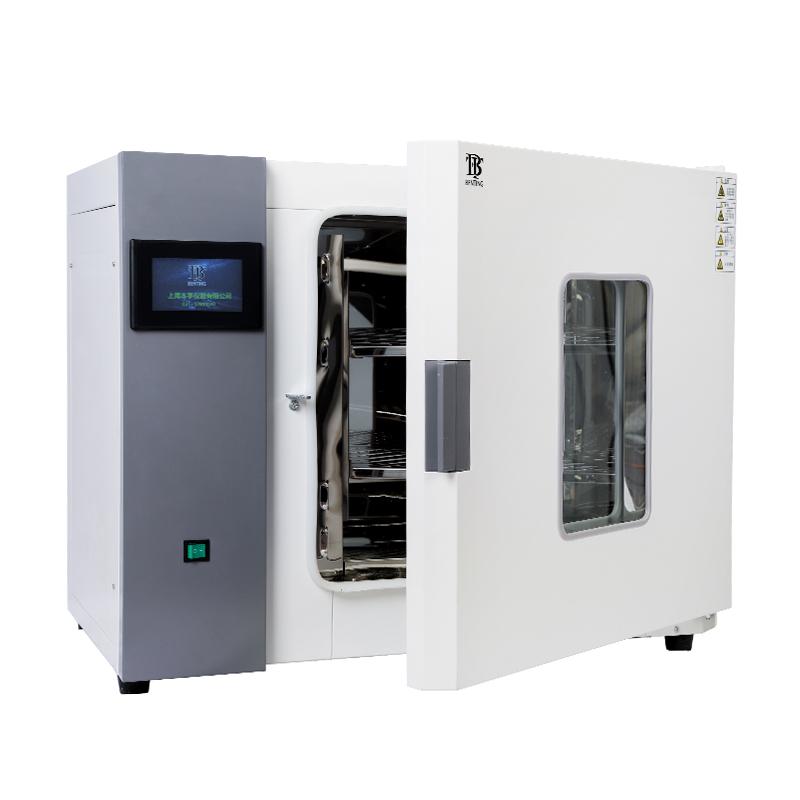

BENTING C202-2AB electric thermostatic Drying Oven 250 ℃/136L
BENTING C202-2AB electric thermostatic Drying Oven is a desktop thermostatic Drying Oven with a volume of 136L and an Interior size of 550 × 450 × 550mm.
BenTing-
HUITAI DZF-6090 vacuum oven with Vacuum Pump, volume 90L with inert gas intake valve
$ 2001.00 -
HUITAI BPG-9070A precision blast dryer, volume 80L with test hole 50mm
$ 670.00 -
Kenton DZF-3050S constant temperature vacuum Drying Oven, independent temperature control for each layer
$ 1708.00 -
Kenton XCT-2AS high temperature Forced Air Drying Oven 270L with independent temperature limit controller
$ 1727.00 -
SANFA GRX-140 Hot Air Sterilization Oven (Dry Heat Sterilizer) 140L
$ 727.00
Overview
This product is suitable for drying, baking, wax melting, sterilization and curing in industrial and mining enterprise laboratories, medical and health and scientific research units.
Features
1. The shell is made of high-quality cold-rolled steel plate, and the surface is treated by spraying process. The studio is made of stainless steel or cold-rolled steel plate, and is treated with anti-corrosion process.
2. Intelligent temperature controller, intelligent temperature controller adopts PID control program, digital display, with timing function.
3. There is a double-layer toughened glass observation window in the middle of the box door, which can observe the situation of the heated items in the working room at any time.
4. The door of the box is sealed with a silicone rubber strip, and the sealing effect is good.
5. The blower type is equipped with a low-noise fan and a single air duct design to ensure good temperature uniformity in the working room.
Parameter comparison
| model | heating power | studio size |
| 202-0AB | 1.2 | 350×350×350 |
| 101-0AB | 1.2 | 350×350×350 |
| 202-1AB | 1.6 | 450×350×450 |
| 101-1AB | 1.6 | 450×350×450 |
| 202-2AB | 2 | 550×450×550 |
| 101-2AB | 2 | 550×450×550 |
| 202-3AB | 4 | 600×500×750 |
| 101-3AB | 4 | 600×500×750 |
| Unit: Kw, mm | ||
| Other parameters | ||
| Voltage | 220V/50HZ | |
| Temperature control range | RT+10-250℃ | |
| Constant temperature fluctuation | ±1.0℃ | |
| shelf load | 15kg | |
| Standard shelf | 2 blocks | |
| Note: A means intelligent temperature controller (without A, it is a pointer temperature controller) B means stainless steel working room (without B, it is a good cold-rolled steel plate) 202 means constant temperature Drying Oven 101 means Forced Air Drying Oven Performance parameter test under no-load conditions: ambient temperature 20°C, ambient humidity 50% RH | ||
BenTing C202-2AB Thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250°C |
| Temperature fluctuation | ±1.0℃ |
| Volume | 135L |
| Interior size | 550*450*550mm |
| Inner chamber material | stainless steel |
| Shelf (std.) | 2pcs |
| Load per shelf | 15kg |
| Power | 220V/50HZ |
| Input power | 2Kw |
| Environment temperature | 20℃ |
| Environment humidity | 50%Rh |
| Dimensions | 800*600*770mm |
| Net Weight | 60kg |
| Enclosure Material | Cold rolled steel plate |
| Packing size | 970*750*920mm |
| Gross Weight | 78Kg |
BenTing C202-2AB Thermostatic Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
