BENTING C101-0A experimental Forced Air Drying Oven 250 ℃/45L oven 101 Drying Oven
C101-0A experimental Forced Air Drying Oven is Shanghai BENTING 101 series Forced Air Drying Oven, the studio volume is 45L, the material is Cold rolled steel plate, C101-0A experimental Forced Air Drying Oven adopts intelligent temperature control instrument, Temperature range RT + 10-250 ℃, Temperature Fluctuation is +/- 1.0 ℃.
BenTing-
YIHENG BPZ-6503B Vacuum oven rectangular vacuum chamber, stainless steel studio
$ 9006.00 -
Kenton DHG-9230C Precision digital display thermostatic drying oven 230L
$ 764.00 -
YIHENG BPZ-6933B Vacuum oven equipped with mechanical pointer vacuum meter
$ 15952.00 -
YIHENG DHG-9140 Forced Air Drying Oven Power 2050W
$ 618.00 -
BOZHEN DHG-9055A Desktop Forced Air Drying Oven
$ 467.00
Overview
This product is suitable for drying, baking, wax melting, sterilization and curing in laboratories and scientific research units of industrial and mining enterprises.
Features
1. The shell is processed and formed by good cold-rolled steel plate, the surface is treated by spraying process, and the studio is processed and formed by stainless steel or cold-rolled steel plate, and treated by anti-corrosion process.
2. Intelligent thermostat, intelligent thermostat adopts PID control program, digital display, and timing function.
3. There is a double-layer tempered glass observation window in the middle of the door, which can observe the heated items in the studio at any time.
4. The door is sealed with silicone rubber strips, and the sealing effect is good.
5. The blower type is equipped with a low-noise fan and a single air duct design to ensure good temperature uniformity in the studio.
Series selection
| name | Horizontal Drying Oven series | |||||||
| Model | 202-0A | 101-0A | 202-1A | 101-1A | 202-2A | 101-2A | 202-3A | 101-3A |
| Inner chamber material | Good cold-rolled steel plate | |||||||
| Supply Voltage | 220V/50HZ | |||||||
| Temperature control range | RT+10-250℃ | |||||||
| Constant temperature fluctuation | ±1.0℃ | |||||||
| Heating power(kw) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 | 4 | 4 |
| Studio size | 350×350×350 | 350×350×350 | 450×350×450 | 450×350×450 | 550×450×550 | 550×450×550 | 600×500×750 | 600×500×750 |
| Dimensions | 600×510×570 | 650×510×525 | 700×510×670 | 750×510×625 | 800×600×770 | 850×600×725 | 965×706×1065 | 965×706×1065 |
| Packing size mm | 760×640×720 | 800×640×670 | 880×640×810 | 910×640×760 | 970×750×920 | 1010×740×870 | 1160×840×1190 | 1160×840×1190 |
| Shelf load | The standard number is 2 pieces | |||||||
| Net/gross weight | 45/57kg | 44/56kg | 55/67kg | 54/66kg | 60/78kg | 58/79kg | 110/140kg | 110/140kg |
Note: A represents an intelligent thermostat (without A, it is an analog thermometer)
B indicates stainless steel workshop (without B, it is good cold-rolled steel plate) 202 indicates constant temperature Drying Oven 101 indicates Forced Air Drying Oven
The performance parameters are tested under no-load conditions: ambient temperature 20°C, ambient humidity 50%RH

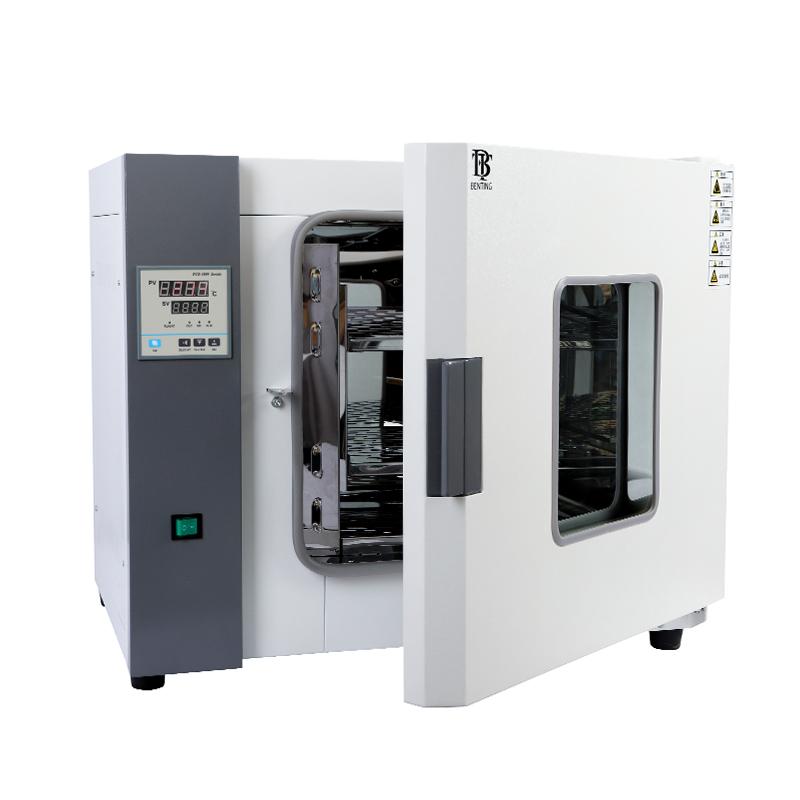

BenTing C101-0A Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250℃ |
| Temperature Fluctuation | ±1.0℃ |
| Volume | 45L |
| Interior size | 350*350*350mm |
| Chamber material | Cold rolled steel plate |
| Shelf (std.) | 2pcs |
| Load per shelf | 15kg |
| Power supply Voltage | 220V/50HZ |
| Input Power | 1.2Kw |
| Environmental temperature | 20℃ |
| Environmental humidity | 50%RH |
| Dimensions | 600*510*570mm |
| Net Weight | 45kg |
| Enclosure Material | Cold rolled steel plate |
| Packing size | 760*640*720mm |
| Gross Weight | 57Kg |
BenTing C101-0A Forced Air Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
