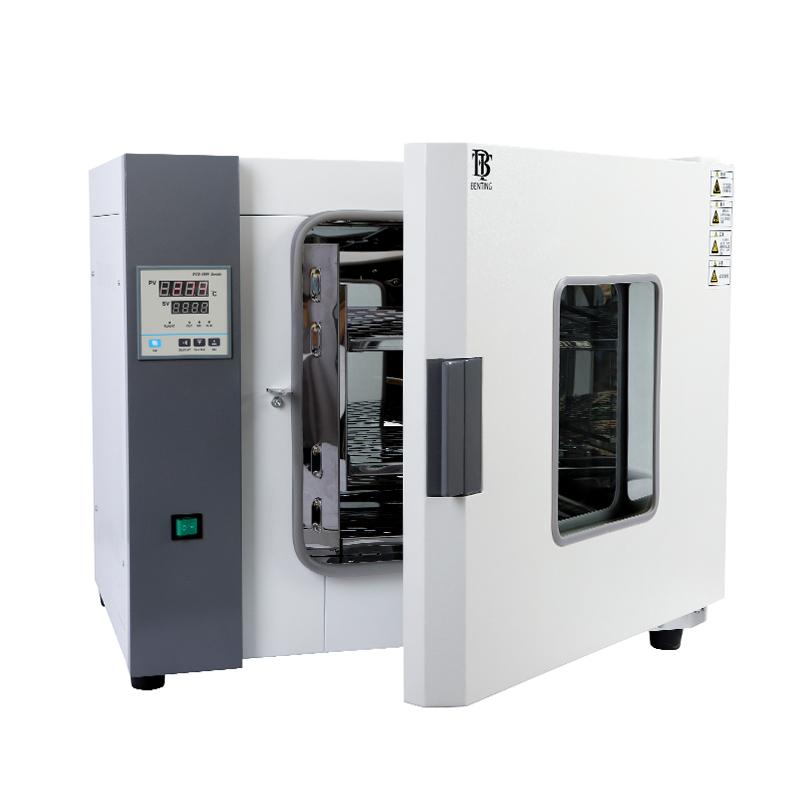

BENTING C202-0A electric thermostatic Drying Oven 250 ℃/42L
BENTING C202-0A electric thermostatic Drying Oven is a laboratory thermostatic Drying Oven with a volume of 42L, Interior size 350 × 350 × 350mm, Cold rolled steel plate material inner chamber, C202-0A Heating power is 1.2kw, using intelligent temperature control instrument, the fluctuation is +/- 1.0 ℃.
BenTing
C202-0A
-
YIHENG BPZ-6140-3 Vacuum Oven
$ 9871.00 -
Kenton 101-5 Dial-Type electric Forced Air Drying Oven, galvanized bile 101 oven 300 ℃/1000L
$ 1003.00 -
YIHENG BPG-9156A Input Power of laboratory Forced Air Drying Oven is 1650W
$ 963.00 -
HUITAI GRX-9123A Dry Baking Autoclave Volume 136L
Login -
CHINA DHG-9070B vertical Forced Air Drying Oven electric thermostatic heating box 300 ℃/72L
$ 441.00
Overview
This product is suitable for drying, baking, wax melting, sterilization and curing in laboratories and scientific research units of industrial and mining enterprises.
Features
1. The shell is processed and formed by good cold-rolled steel plate, the surface is treated by spraying process, and the studio is processed and formed by stainless steel or cold-rolled steel plate, and treated by anti-corrosion process.
2. Intelligent thermostat, intelligent thermostat adopts PID control program, digital display, and timing function.
3. There is a double-layer tempered glass observation window in the middle of the door, which can observe the heated items in the studio at any time.
4. The door is sealed with silicone rubber strips, and the sealing effect is good.
Comparison of parameters of 101/202 series Forced Air Drying Ovens
| name | Horizontal Drying Oven series | |||||||
| Model | 202-0A | 101-0A | 202-1A | 101-1A | 202-2A | 101-2A | 202-3A | 101-3A |
| Inner chamber material | Good cold-rolled steel plate | |||||||
| Power supply Voltage (V) | 220V/50HZ | |||||||
| Temperature Control Range (°C) | RT+10-250℃ | |||||||
| Constant temperature fluctuation (°C) | ±1.0℃ | |||||||
| Heating power(kw) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 | 4 | 4 |
| Studio Dimensions W×D×H(mm) | 350×350×350 | 350×350×350 | 450×350×450 | 450×350×450 | 550×450×550 | 550×450×550 | 600×500×750 | 600×500×750 |
| Product dimensions: W×D×H(mm) | 600×510×570 | 650×510×525 | 700×510×670 | 750×510×625 | 800×600×770 | 850×600×725 | 965×706×1065 | 965×706×1065 |
| Package dimensions: W×D×H(mm) | 760×640×720 | 800×640×670 | 880×640×810 | 910×640×760 | 970×750×920 | 1010×740×870 | 1160×840×1190 | 1160×840×1190 |
| Shelf load | 15 Standard number of 2 pieces | |||||||
| Net Weight/Gross Weight (kg) | 45/57 | 44/56 | 55/67 | 54/66 | 60/78 | 58/79 | 110/140 | 110/140 |
Note: A represents an intelligent thermostat (without A, it is an analog thermometer)
B indicates stainless steel workshop (without B, it is good cold-rolled steel plate) 202 indicates constant temperature Drying Oven 101 indicates Forced Air Drying Oven
The performance parameters are tested under no-load conditions: ambient temperature 20°C, ambient humidity 50%RH
BenTing C202-0A Thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250℃ |
| Temperature Fluctuation | ±1.0℃ |
| Volume | 42L |
| Interior size | 350*350*350mm |
| Chamber material | Cold rolled steel plate |
| Shelf (std.) | 2pcs |
| Load per shelf | 15kg |
| Power supply Voltage | 220V/50HZ |
| Input Power | 1.2Kw |
| Environmental temperature | 20℃ |
| Environmental humidity | 50％RH |
| Dimensions | 600*510*570mm |
| Net Weight | 45kg |
| Enclosure Material | Cold rolled steel plate |
| Packing size | 760*640*720mm |
| Gross Weight | 57Kg |
BenTing C202-0A Thermostatic Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
