Overview
It is widely used in food, light industry, chemical industry, agricultural scientific research, environmental protection and other experimental fields for powder drying, baking and disinfection and sterilization of various glass containers. The vacuum Drying Oven has the advantages of fast drying speed, low pollution and no damage to the intrinsic quality of the dried goods. The vacuum Drying Oven is designed for drying heat-sensitive, easily decomposing, and easily oxidizing substances, and can be filled with inert gas, especially for some items with complex composition.
Features
1. The shell is made of good cold-rolled steel plate, and the surface is treated by electrostatic spraying process, and the good stainless steel is usedor cold-rolled steel plate, and after anti-corrosion treatment, to ensure that the product is durable.
2. The temperature control adopts microcomputer single-chip microcomputer technology, which has the function of temperature control timing and over-temperature alarm.
3. Dual-screen high-brightness digital tube display, accurate and intuitive indication value, superior performance, touch button setting adjustment parameters.
4. The closing tightness of the door can be adjusted by the user, the glass in the door is a good tempered glass with high explosion-proof, and the high-temperature resistant silicone rubber sealing strip ensures that the vacuum in the box is maintained for a long time.
5. Optional gas filling port, which can be convenient for replenishing inert gas.
Selection
| Model | Power consumption | Studio size |
| CBZ-1AⅡ | 800 | 300×300×270 |
| CBZ-2AⅡ | 1400 | 415×370×340 |
| CBZ-3AⅡ | 2000 | 450×450×450 |
| CBZ-1BCⅡ | 800 | 300×300×270 |
| CBZ-2BCⅡ | 1400 | 415×370×340 |
| CBZ-3BCⅡ | 2000 | 450×450×450 |
| Unit: W, mm | ||
| Other parameters | ||
| Supply Voltage | 220V/50HZ | |
| Temperature control range | RT+10-250℃ | |
| Constant temperature fluctuation | ±1% | |
| Temperature resolution | 0.1℃ | |
| Vacuum | <133pa | |

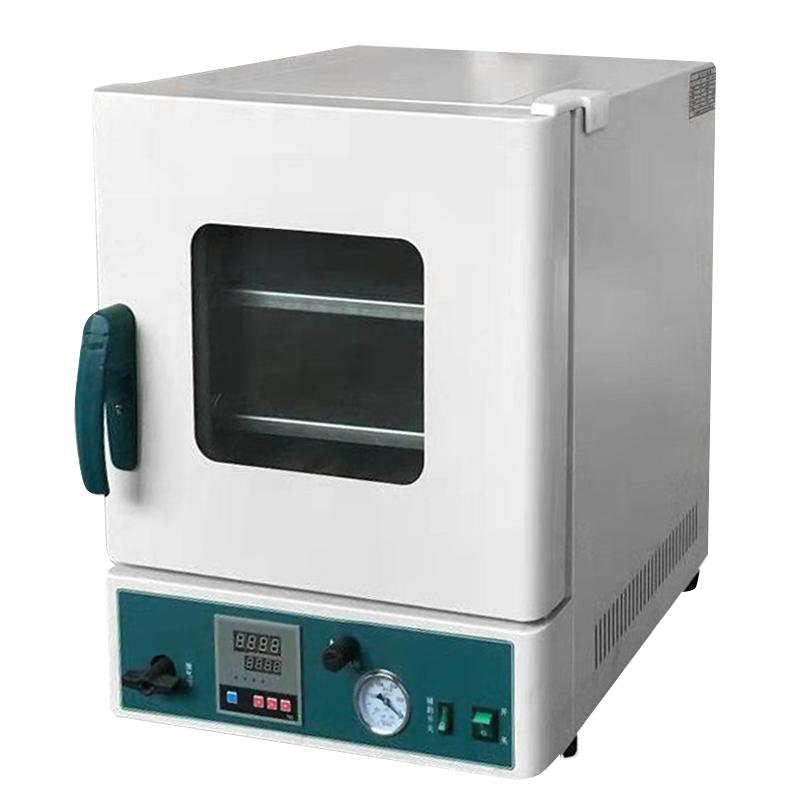

BenTing CBZ-3AII Vacuum OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250℃ |
| Temperature Fluctuation | ±1% |
| Temperature Resolution | 0.1℃ |
| Volume | 91L |
| Interior size | 450*450*450mm |
| Chamber material | Cold rolled steel plate |
| vacuum | <133Pa |
| Power supply Voltage | 220V/50HZ |
| Input Power | 2000W |
| Dimensions | 640*590*780mm |
| Net Weight | 82kg |
| Enclosure Material | Cold rolled steel plate |
| Packing size | 790*750*960mm |
| Gross Weight | 105Kg |
BenTing CBZ-3AII Vacuum Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
