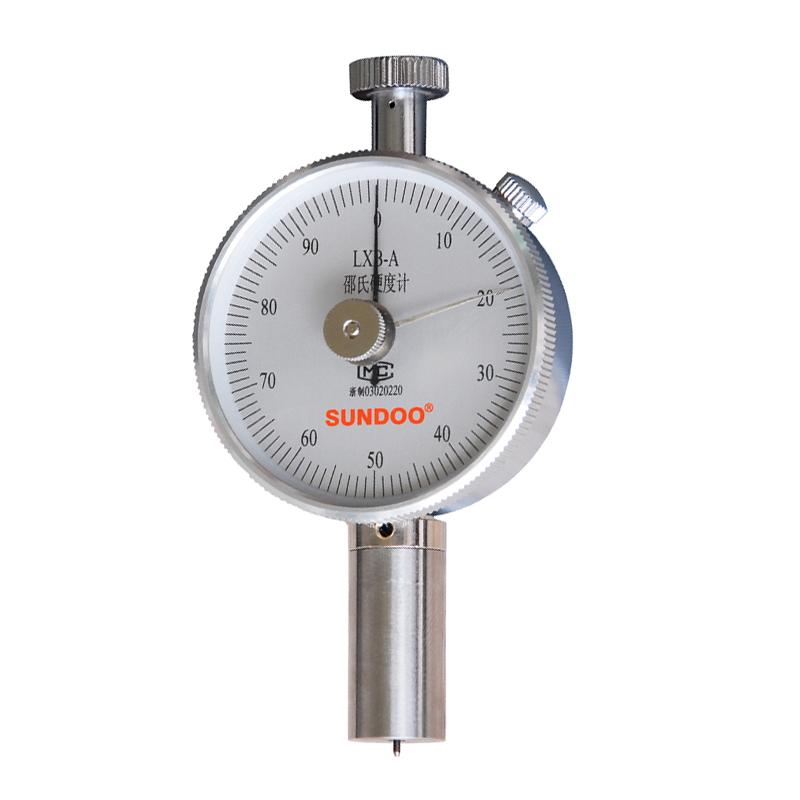

SUNDOO LXB-A Shore Durometer Type A Shore Durometer

Measurement range 0~2.5mm, Measurement range 0~100HA, Measurement range 10~90HA, measurement error +/- 1HA, pressure at the end of the needle F = 550 + 75HA (mN), HA is a Shore A Hardness Gauge reading.

Brand

SKU: NB002863

SUNDOO

Model

LXB-A

Price

$ 133.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

SUNDOO shopSE

Information

Datasheet RFQ Contract Manual

What else did others buy

SUNDOO SLX-A Shore Durometer testing device A/C Shore Durometer for

$ 173.00

Genuinegoods

SUNDOO LXB-A Shore Shore DurometerOverview
Specifications
Comments
FAQs

LXB-A

Shore Shore Durometer

Overview of LXB-A Type A Shore Hardness Tester

SUNDOO Instruments LXB-A A-type Shore Hardness Tester is a double-pointer A-type Shore Hardness Tester. Like the A-type Shore Hardness Tester, it is mainly used to measure the hardness value of vulcanized rubber and plastic products. LXB-A A-type Shore Hardness Tester can be used for rack testing or manual testing. Used for laboratory testing of standard hardness values of rubber and plastic standard test pieces. Hand-held Shore Hardness Tester Head test can measure the surface hardness value of rubber or plastic objects installed on the equipment.

LXB-A Type A Shore Hardness Tester application standard

GB/T53 1 1-2008 "Test Method for Indentation Hardness of Vulcanized Rubber or Thermoplastic Rubber Part I: Shore Durometer Method (Shore Hardness)"; IS07619-1:2004 "Test Method for Indentation Hardness of Vulcanized Rubber or Thermoplastic Rubber Part I: Shore Hardness Tester Method (Shore Hardness) "; JJG304-2003 "A Type Shore Hardness Tester Verification Regulations ".

LXB-A Type A Shore Hardness Tester Indenter Size Chart

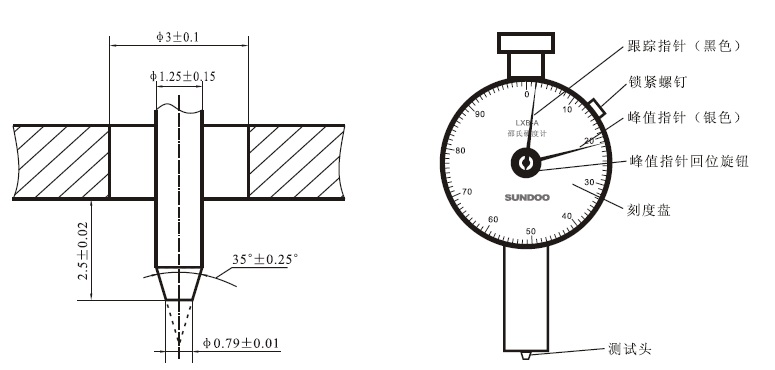

LXB-A Type A Shore Hardness Tester Indenter Dimensions and Appearance

LXB-A Type A Shore Hardness Tester display

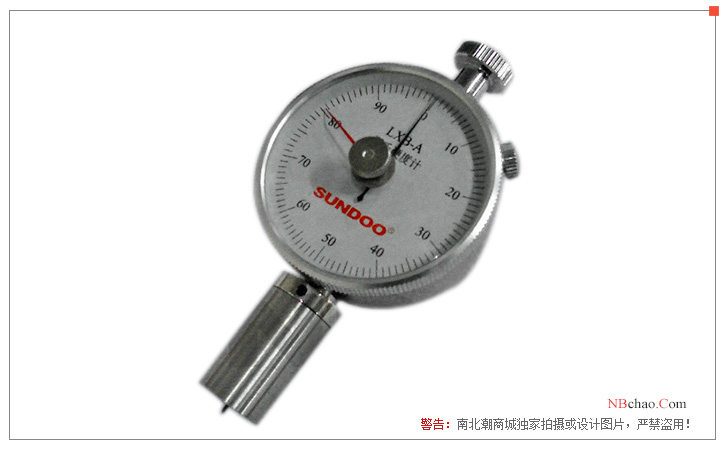

SUNDOO Instruments LXB-A Type A Shore Hardness Tester Appearance

SUNDOO LXB-A Shore Shore DurometerSpecifications

LIST	VALUE
Crimping needle stroke range	0~2.5mm
Measuring range	0~100HA
Measuring range	10~90HA
Measurement error	±1HA
Dimensions	1156025mm
Weight	0.16kg
Pin end pressure	F = 550 + 75HA (mN), HA is the Shaw A Sclerometer reading

SUNDOO LXB-A Shore Shore Durometer Packing list

Hardness gauge x1, standard block x1, manual x1, warranty card x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
