        Home> Water Bath> BenTing> BenTing CDK-98-II Single Hole Water bath

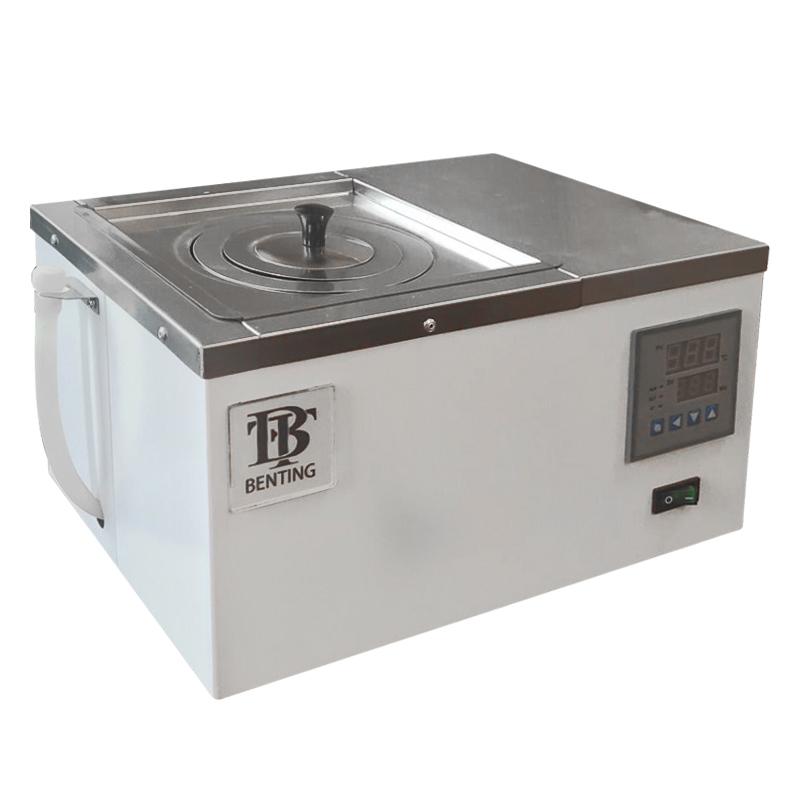

        BenTing CDK-98-II Single Hole Water bath

        BENTING CDK-98-II Single Hole Water bath 3.4L

        BENTING CDK-98-II Single Hole Water bath with an inner volume of 3.4L and a Temperature range of RT + 5~ 100 ℃ is an experimental Water bath with a stainless steel liner. CDK-98-II Interior size is 168 * 168 * 120mm and PID is used for precise temperature control.

        Brand
        SKU: NB028668
        China BenTing
        Get Quote
        VS
        BenTingLOGO

        BenTing shop

        Information
        Datasheet
        What else did others buy
        Genuinegoods

        • BenTing CDK-98-II Single Hole Water bathOverview

        • Specifications
        • Comments
        • FAQs
        CDK-98-II Single Hole
        Water bath

        Precise constant temperature and auxiliary heating

        Features

        ●Stainless steel liner

        ●PID control, accurate temperature control

        ●Convenient operation, fixed value operation, timed operation, automatic stop

        ●Dedicated function key to achieve temperature setting

        ●Auxiliary menu, realize over-rise alarm, deviation correction, menu locking

        security

        ● Over-lift alarm, menu lock

        DK-98-IIComparison of parameters of Water Bath series

        Classification specificationsSingle holeTwo holes in a single rowSingle-row four-holeSingle-row six-holeDouble-row four-holeDouble-row six-holeDouble row eight holes
        ModelDK-98-II√√√√√√√
        mannerNatural water convective heat transfer
        performanceOperating temperature rangeRT+5～100℃
        Temperature resolution0.1℃
        Temperature fluctuations±0.5℃
        Temperature distribution accuracy±1.0℃
        constituteInteriorsStainless steel plate
        ExteriorCold-rolled steel plate, surface resistant to quality coating
        Insulating materialspolyurethane
        heaterStainless steel heating tubes
        Rated power0.4kw0.5kw1.0kw1.5kw1.0kw1.5kw2.0kw
        controllerTemperature control methodPID
        Temperature setting methodTap the button settings
        Temperature representationMeasured temperature display: 3-digit digital upper display Set temperature display: 3-digit digital lower display
        timer0~999 minutes (with timed waiting function)
        Run the functionFixed-value operation, timed operation, automatic stop
        Program modeMatching
        Additional featuresDeviation correction, menu key locking, power failure compensation, power failure memory
        sensorCU50
        Safety devicesOverlift alarm
        specificationInner dimensions (W*D*H mm)168*168*120325*168*120653*168*120945*168*120325*325*120480*325*120635*325*120
        Dimensions (W*D*H mm)355*240*190510*240*190820*240*1901130*240*215515*380*190670*380*190825*380*190
        Outer packing size (W*D*H mm)405*320*235555*320*235870*320*2351170*320*235550*480*235720*480*235870*480*235
        Content volume3.4L6.6L13.2L19.1L12.7L18.7L24.8L
        The partition is load-bearing5kg
        Number of partition layers1st floor
        Power supply (50/60Hz): Rated currentAC220V/1.8AAC220V/2.3AAC220V/4.5AAC220V/6.8AAC220V/4.5AAC220V/6.8AAC220V/9.1A
        Net weight/gross weight kg3.5/44.5/5July 8thSeptember 10thJuly 8th8/9.59.5/11


        VS

        BenTing CDK-98-II Single Hole Water bathSpecifications

        LIST VALUE
        Temperature range RT+5~100℃
        Temperature control mode Natural water convection heat transfer
        Temperature Fluctuation ±0.5℃
        Temperature Resolution 0.1℃
        Temperature sensor CU50
        Tank Volume 3.4L
        Tank Material stainless steel plate
        Tank Size 168*168*120mm
        Total Power 0.4kW
        Power supply Voltage AC220V/1.8A 50/60Hz
        Timer 0~999min
        Dimensions 355*240*190mm
        Packing size 405*320*235mm
        Box material Cold rolled steel plate, surface resistance painting
        Net Weight 3.5Kg
        Gross Weight 4kg
        Temperature Uniformity ±1.0℃
        Thermal Insulation Polyurethane
        Heating device Stainless steel heating pipe
        Temperature setting method Tap the button to set
        Temperature control mode PID
        Operational Features Fixed value operation, regular operation, automatic stop
        Program Mode optional
        Additional features Deviation correction, menu button lock, power failure compensation, power failure memory
        Safety Devices Over-rise alarm
        Shelf load bearing 5kg
        Shelf layer 1st floor

        BenTing CDK-98-II Single Hole Water bath Packing list

        machine X1, manual X1, certificate X1, warranty card X1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        Is the price listed on the website the final cost for overseas purchases?
        [A]
        No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
        [Q]
        What is the specific process for purchasing the product?
        [A]
        First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
        [Q]
        What should I do if the instrument I purchase needs repair?
        [A]
        After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
