FANGRUI NDJ-5S + HCH1006 Digital Rotational Viscometer with 6L heating bath

FANGRUI NDJ-5S digital viscometer adopts the latest international microcomputer drive technology, imported stepper motor, LCD backlight display, program setting and automatic control. It has stable speed, good accuracy, easy operation, automatic scanning and error alarm. and other practical functions; the screen directly displays viscosity, rotation speed, rotor number, and percentage specific torque. Information such as the maximum viscosity that can be measured in the selected range and the temperature of the liquid being measured. FANGRUI NDJ-5S digital viscometer uses standard silicone oil to calibrate the full scale and linearity of each gear through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate and reliable, with excellent repeatability.

NDJ-5S digital viscometer can measure the absolute viscosity of Newtonian liquids or the apparent viscosity of non-Newtonian liquids. If you choose viscometer data processing software, you can analyze the rheological properties of non-Newtonian liquids.

Application

It is widely used in fluid and semi-fluid production industries and scientific research units such as oils, paints, coatings, slurries, textiles, food, adhesives, cosmetics, etc. The instrument is chosen by customers in various industries for its advantages of accurate, fast, intuitive and simple measurement.

Main features of digital viscometer

①. The measurement data is directly displayed on the LCD without secondary calculation.

②. Using the latest international microcomputer drive technology and imported stepper motor, the speed is accurate, stable and reliable.

③. Using professional switching power supply technology, the Voltage and frequency range are wide, and the fluctuation of the power supply will not affect the measurement accuracy.

④. The whole machine is designed in one machine and is easy and reliable to operate.

⑤. The instrument can provide a low-viscosity testing option "Rotor No. 0" to accurately test ultra-low viscosity values ​​in the range of 0.1~100mpa.s.

⑥. A temperature probe can be selected to measure the temperature of the test sample in real time.

⑦. With automatic scanning function, the instrument can automatically suggest a good combination of rotor and speed.

⑨. Equipped with RS232 interface (or USB2.0 interface), which can output data and connect external devices.

⑩. Optional data processing software can record the changes in viscosity with time, rotation speed or rotor (shear rate), and temperature in real time. This provides a good way to understand the viscosity and rheological characteristics of non-Newtonian liquids. methods and means.

Introduction to thermostatic bath

The special constant temperature bath for heated Rotational Viscometer has good cost performance and can meet the sample temperature control requirements. Temperature range is from room temperature to 100℃. The cover plate has a 75mm round hole that can be placed into a 400mL high beaker, and the sample to be measured is poured into the beaker, making it easy to control the sample temperature quickly and easily.

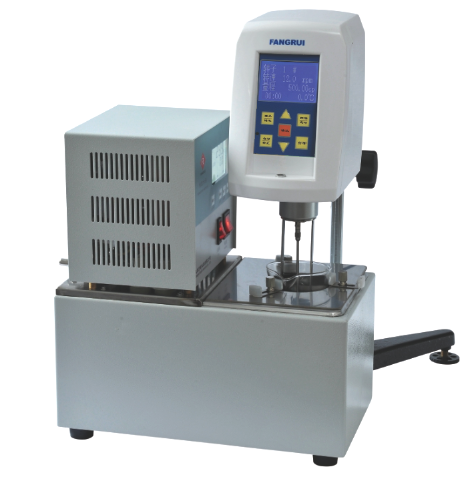

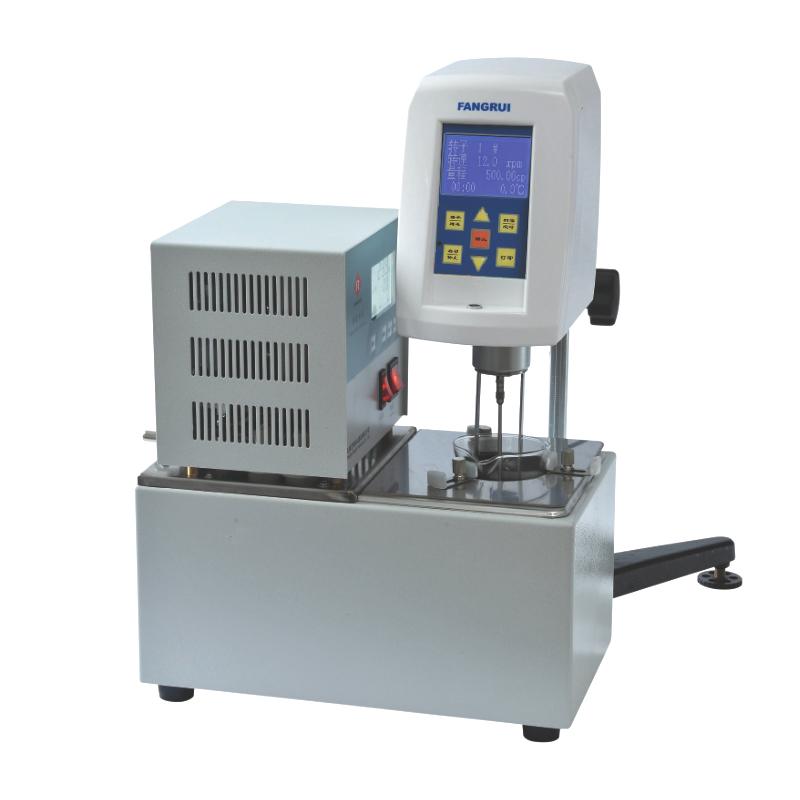

Product display picture

Optional parts

Ultra-low viscosity adapter (0# rotor)

temperature probe

Thermostatic cup

Constant temperature Water Bath (Oil Bath) dedicated for viscometer

Special cryogenic bath for viscometer

Ultra-low viscosity adapter (0# rotor)

temperature probe

NDJ-5S Viscometer complete set x1, HCH1006 Thermostatic bath X1, manual X2, certificate X2, warranty card X2

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
