FANGRUI NDJ-8S Digital Rotational Viscometer with ULR Ultra Low Viscosity Adapter

product description

FANGRUI NDJ-8S digital viscometer adopts the latest international microcomputer drive technology, imported stepping motor, LCD backlight display, program setting, automatic control, with stable speed, good accuracy, easy operation, automatic scanning, and error alarm and other practical functions; the screen directly displays information such as viscosity, speed, rotor number, percentage torque, the maximum viscosity that can be measured in the selected range, and the temperature of the liquid to be measured. The instrument uses standard silicone oil to measure and calibrate the full scale and linearity of each gear through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate and reliable, with excellent repeatability.

Features

1. The digital viscometer is designed and manufactured according to JJG-2005 standard

2. Large LCD liquid crystal display, with blue backlight function, intuitive and clear

   Display information: rotor number, speed, range, viscosity, temperature, opening angle%

3. The ▲/▼ function keys are used to change the speed and select the rotor number

4. "Rotor selection" function key, prompting the rotor number, the cursor flashes

5. "Speed speed setting" function key, prompting the speed, the cursor flashes

6. "Start, Stop" function key to execute or terminate the current measurement program

7. "Auto scan" function key, for unknown samples to help users choose the appropriate rotor speed measurement

      "OK" function key to confirm the currently selected information

 Applications

NDJ-8S digital viscometer is widely used in oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics and other fluid and semi-fluid production industries and scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.

Introduction to Ultra Low Viscosity Adapters

The Enhanced Ultra Low Viscosity Adapter ULR is used in conjunction with the Foray Viscometer for accurate and repeatable measurements of low viscosity objects. Both Newtonian and non-Newtonian fluids are applicable. The Ultra Low Viscosity Adapter ULR consists of a precision cylindrical rotor and a precision tubular sleeve (sample cup). The rheologically rigorous cylindrical structure design allows it to perform accurate viscosity measurement and shear rate determination.

Ultra Low Viscosity Adapter Features

● Designed for low viscosity fluid measurement

● Jacketed and non-jacketed specifications are available

● The lowest detection limit is 1cP, the range depends on the type of viscometer used

● Accurate measurement at specified shear rates for detailed product analysis

● The stainless steel material is easy to clean and can withstand the working temperature range of -40℃－250℃

● Sample volume 18－20mL

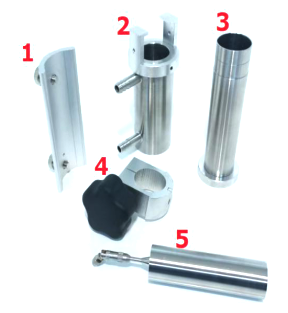

Structure of Ultra Low Viscosity Adapter

1. Mounting bracket

2. Water bath jacket (ULR-PLUS included)

3. Sample cup

4. Sample cup holder with knob

5.0 rotor

Viscometer host x1, ULR ultra-low Viscosity adapter X1, 1-4 rotor x1 (set), triangular base x1, column x1, power adapter x1, instrument aluminum alloy case x1, rotor protection frame x1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
