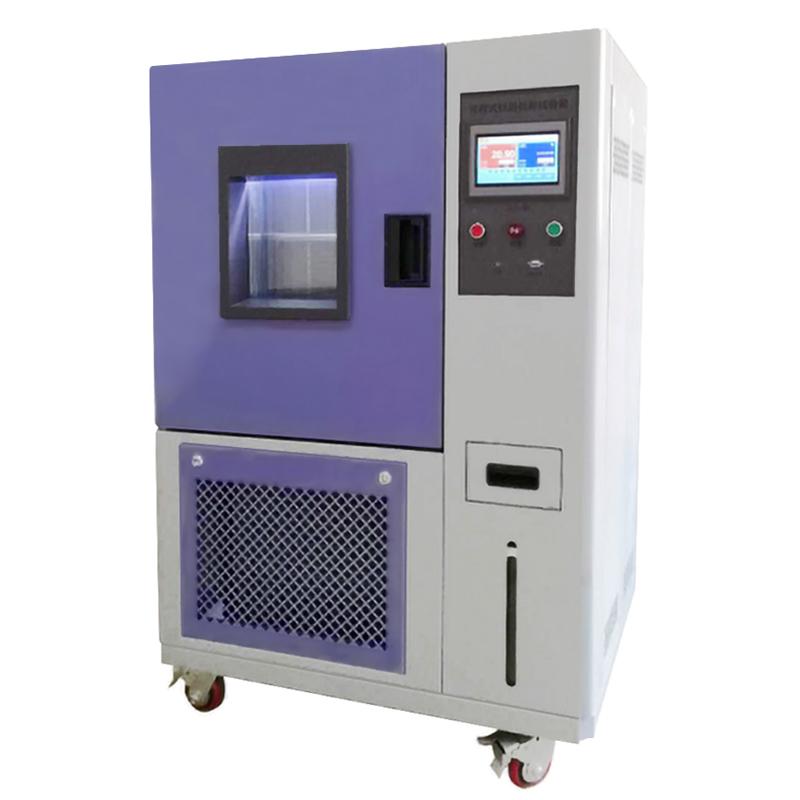

BENTING CBGDW-1000L low/high Temperature Test Chamber -20 ℃/1000L

BENTING low/high Temperature Test Chamber CBGDW-1000L adopts fiberglass insulation material, Temperature range -20 ℃~ + 150 ℃, fluctuation ≤ 0.5 ℃, CBGDW-1000L is a high-low temperature environment Test Chamber with an inner volume of 1000L.

Brand

SKU: NB028789

BenTing

Model

CBGDW-1000L

Price

Please contact customer service

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

BenTing shopSE

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

BenTing CBGDW-1000L Low/high Temperature Test ChamberOverview
Specifications
Comments
FAQs

CBGDW-1000L

Low/high Temperature Test Chamber

Features

1. Enclosure Material: cold plate baking paint

2. Inner wall material: good mirror stainless steel plate

3. Box insulation material: glass fiber

4. Single hinged door (left hinge, right handle when facing the cabinet), equipped with observation window, lighting, window frame/door frame anti-condensation electric heating device

5. Control panel: controller display screen, U disk interface, RS232 computer communication interface, power switch, status indicator light and sound and light alarm device

6. Unit: refrigeration unit, water tray, drain hole, condensing fan, condenser air inlet, water supply tank

7. Power distribution: IO board, machine tool transformer, ballast, intermediate relay, solid state relay, AC contactor, thermal relay, fuse, under-reverse phase relay, air switch

8. The control system automatically adjusts the energy-saving Operating Conditions of the refrigerator according to the test conditions

9. The cooling capacity of the evaporator is switched by the solenoid valve driven by the control system

BGDW series high-low temperature Test Chamber parameter pair

model	BGDW-80L	BGDW-100L	BGDW-150L	BGDW-225L	BGDW-408L	BGDW-800L	BGDW-1000L
model	-20°C, -40°C, -70°C	-20°C, -40°C, -70°C	-20°C, -40°C; -70°C	-20°C, -40°C; -70°C	-20°C, -40°C, -70°C	-20°C, -40°C, -70°C	-20°C, -40°C, -70°C
temperature range	-20°C: -20°C～+150°C -40°C: -40°C～+150°C -70°C: -70°C～+150°C
temperature fluctuation	≤0.5°C (temperature fluctuation is half of the difference between the highest temperature and the lowest temperature measured at the central point)
temperature error	≤±1°C (the average temperature displayed by the studio temperature controller minus the average temperature measured at the central point)
temperature uniformity	≤2.0°C (The temperature uniformity is the arithmetic mean of the difference between the highest temperature and the lowest temperature measured in each test)
Heating time	3°C/min (non-linear no-load)
cooling time	0.75~1℃/min (non-linear no-load)
Relative Humidity error	±2.5%RH
Humidifier power	2.5KW
Way of working	The 0℃~-40℃ model adopts one-stage compression, and the -40℃~-70℃ adopts a two-element cascade refrigeration method
Refrigeration Compressors	Fully enclosed low noise rotary compressor
condenser	Air-cooled type: external fin and internal thread tube heat exchanger (water-cooled type: shell-and-tube heat exchanger)
Internal volume	80L	100L	150L	225L	408L	800L	1000L
Inner box size WHD	400500400	500500400	500600500	600750500	800850600	10001000800	100010001000
Outer box size WHD	9001580950	10001580950	100016501050	110018001050	130019001150	150020501350	150020501550
Weight KG	200	230	250	300	400	600	700
Do not test product	It is forbidden to test products that may produce flammable, explosive, volatile, highly toxic, corrosive and radioactive substances

BenTing CBGDW-1000L Low/high Temperature Test ChamberSpecifications

LIST	VALUE
Temperature range	-20~150℃
Interior size	100010001000mm
Temperature fluctuation	≤0.5℃
temperature error	≤ +/- 1 ℃ (the average temperature of the displayed value of the studio temperature Controller minus the measured average temperature at the center point)
Temperature Uniformity	≤2.0℃
Heating rate	3℃/min
Cooling rate	0.75~ 1 ℃/min (non-linear no-load)
Humidity Deviation	±2.5%RH
Humidifier power	2.5KW
Operating Mode	The 0 ℃~ -40 ℃ model adopts one-stage compression
Refrigeration system	Fully enclosed low noise rotary compressor
Refrigeration system	Air-cooled type: external fin internal thread tube heat exchanger (water-cooled type: shell and tube heat exchanger)
Interior Volume	1000L
Dimensions	150020501550mm
Weight	700kg
Prohibit testing products	Prohibition of testing of products that may produce flammable, explosive, volatile, highly toxic, corrosive and radioactive substances

BenTing CBGDW-1000L Low/high Temperature Test Chamber Packing list

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
