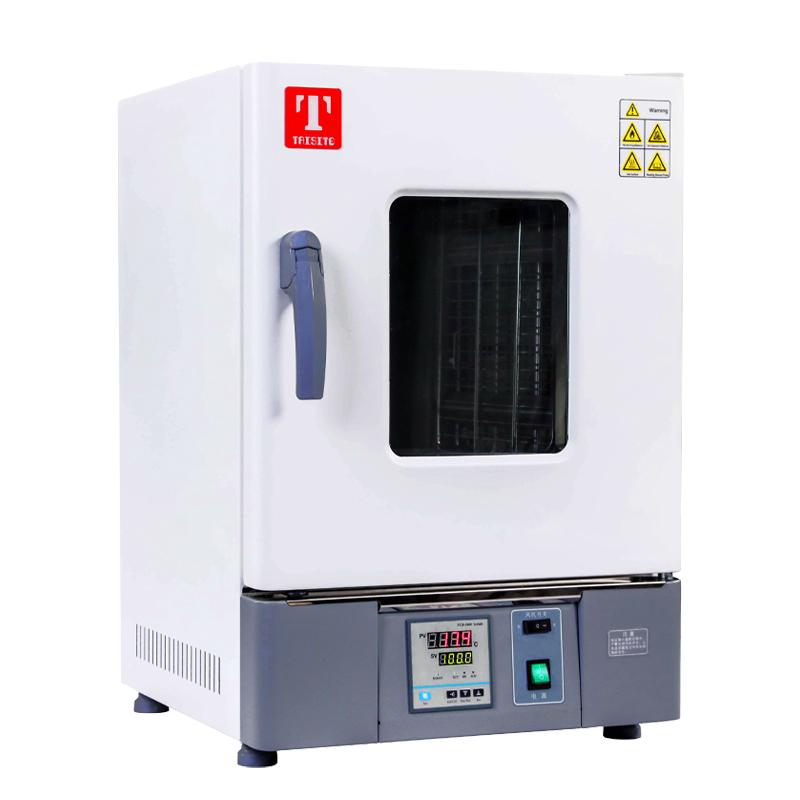

TAISITE WGL-625B Vertical Forced Air Drying Oven 625L
TAISITE WGL-625B vertical Forced Air Drying Oven with a volume of 625L, is a vertical Forced Air Drying Oven with an inner size of 660 * 760 * 1250mm, WGL-625B Shelf has 7 layers, and adopts a constant speed fan.
TaiSiTe
WGL-625B
-
Kenton DHG-9230 Precision LCD screen thermostatic drying oven
$ 839.00 -
Kenton 101-0S Small Forced Air Drying Oven 40L with independent temperature limiter
$ 349.00 -
BENTING C101-1AB experimental Forced Air Drying Oven 250 ℃/70L 101 oven
Login -
Kenton 101-1AS LCD digital Forced Air Drying Oven 70L with independent temperature limiter
$ 433.00 -
MODERNER GFX-9203A Forced Air Drying Oven 220L
Login
Features
High precision, effective, safe and wide range.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
Patent No.: ZL201230310211.7 / ZL201320059701.3
Function
Double-walled door design Multi-function control panel
Menzi adopts a double-layer thermal insulation design, which is more comfortable for experiments. Multi-function control panel, dedicated function key design
Exhaust holes Multi-layer space multi-layer partition design
Multi-functional exhaust hole design The spacing of the partitions can be adjusted, which is convenient for placing experimental items at different heights.
Comparison of parameters of WGL Forced Air Drying Oven series
| Model | WGL-30B/WGLL-30BE | WGL-45B/WGLL-45BE | WGL-65B/WGLL-65BE | WGL-125B/WGLL-125BE | WGL-230B/WGLL-230BE | WGL-625B/WGLL-625BE | |||||||
| manner | Dual air ducts force convection | ||||||||||||
| performance | Operating temperature range | RT+10～300℃ | |||||||||||
| Temperature resolution | 0.1℃ | ||||||||||||
| Temperature fluctuations | ±1 ℃ | ||||||||||||
| Temperature distribution accuracy | ±2.5% | ||||||||||||
| constitute | Built-in | Stainless steel plate | |||||||||||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||||||||||||
| Insulating materials | Aluminum silicate fiber | ||||||||||||
| heater | Stainless steel heating tubes | Stainless steel heating tubes | Stainless steel heating tubes | Stainless steel heating tubes | Nichrome heating wire | Stainless steel heating tubes | |||||||
| Rated power | 0.8KW | 1.2KW | 1.6KW | 2.3KW | 3KW | 5.0KW | |||||||
| Exhaust outlets | Inner diameter 28mm*1, top | Inner diameter 28mm*2, top | |||||||||||
| controller | Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | |||||||||||
| Temperature setting method | Tap the four buttons to set it | ||||||||||||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||||||||||||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||||||||||||
| timer | 0~9999 minutes (with timed waiting function) | ||||||||||||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||||||||||||
| Program mode | Matching | ||||||||||||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||||||||||||
| BE type speed control fan | Fixed-speed fan | ||||||||||||
| sensor | pt100 | ||||||||||||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||||||||||||
| specification | Inner dimensions (W*D*H mm) | 310*310*310 | 350*350*350 | 400*360*450 | 500*450*550 | 600*500*750 | 660*760*1250 | ||||||
| Dimensions (W*D*H mm) | 445*440*690 | 485*480*730 | 535*490*820 | 636*580*930 | 735*625*1220 | 900*960*1840 | |||||||
| Outer packing size (W*D*H mm) | 570*570*820 | 600*600*857 | 970*620*960 | 760*700*1060 | 898*814*1347 | 1051*1060*1949 | |||||||
| Content volume | 30L | 45L | 65L | 125L | 230L | 625L | |||||||
| The partition is load-bearing | 15kg | ||||||||||||
| Number of partition layers | 6 floors | 7 floors | 9 floors | 13 floors | 17 floors | 7 floors | |||||||
| Partition spacing | 35mm | 150mm | |||||||||||
| Power supply: (50/60Hz) rated current | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/10.5A | AC220V/13.6A | AC380V/7.6A | |||||||
| Net weight/gross weight kg | 37/32 | 37/43 | 43/49 | 60/66 | 84/100 | 113/137 | |||||||
| accessory | clapboard | 2 pcs | |||||||||||
| Partition shelves | 4 pcs | ||||||||||||
| 230/625 without speed control fan | |||||||||||||
| Addable configuration (WGLL type) | Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||||||||||||
TaiSiTe WGL-625B Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Convection mode | Double duct forced convection |
| Temperature range | RT+10~300℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1 ℃ |
| Temperature Uniformity | ±2.5% |
| Chamber material | stainless steel plate |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal Insulation | aluminum silicate fiber |
| Heating mode | Stainless steel heating pipe |
| Input Power | 5.0Kw |
| Exhaust Port | Should 28mm * 2, top |
| Thermostat | Digital tube double row PID |
| Temperature setting method | Tap the four-button setting |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display |
| Timer | 0~9999Min (with Timer waiting) |
| Operational Features | Fixed value operation, regular operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, constant speed fan |
| Temperature sensor | pt100 |
| Safety Devices | Over-rise alarm |
| Interior size | 660*760*1250mm |
| Dimensions | 900*960*1840mm |
| Packing size | 1051*1060*1949mm |
| Volume | 625L |
| Load per shelf | 15kg |
| Shelf (std.) | 7pcs |
| Shelf spacing | 150mm |
| Power supply Voltage | AC380V/7.6A |
| Net Weight | 113kg |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
| Gross Weight | 137Kg |
TaiSiTe WGL-625B Forced Air Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
