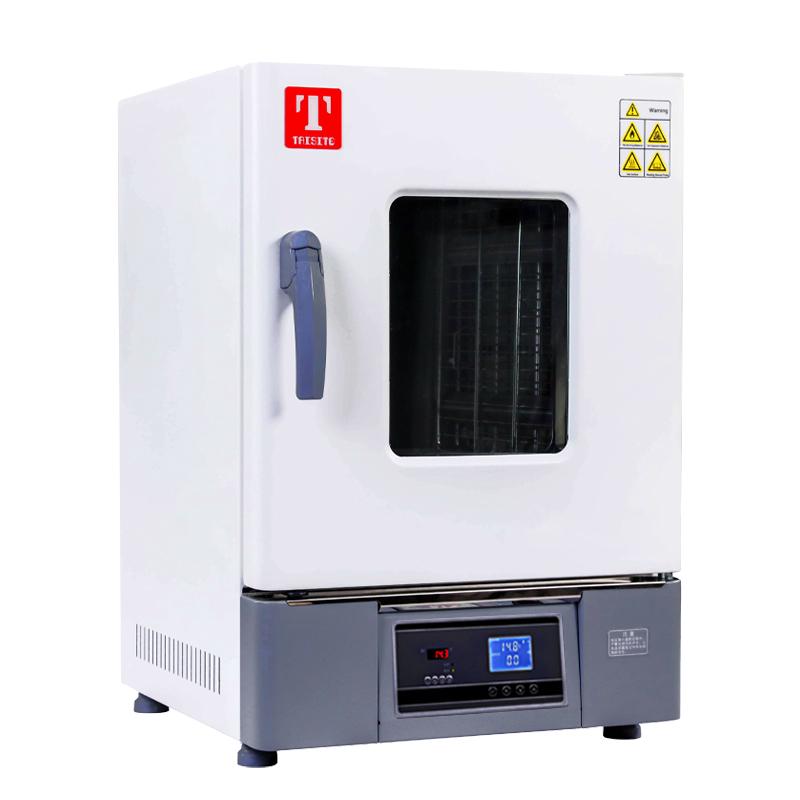

TAISITE WGLL-230BE Functional vertical Forced Air Drying Oven 300 ℃/230L
TAISITE Forced Air Drying Oven WGLL-230BE adopts nickel-chromium alloy heating wire heating device, Rated power 3KW, exhaust port inner diameter 28mm * 2, WGLL-230BE is a functional blast oven, with over-rise prevention device, using liquid crystal dual-row PID temperature control.
TaiSiTe
WGLL-230BE
-
SANFA DHG-9023A Desktop Forced Air Drying Oven 25L/stainless steel
$ 344.00 -
MODERNER GFX-9053A Forced Air Drying Oven 50L
Login -
Kenton KH-100AS digital display industrial air drying oven stainless steel liner with timing
$ 1167.00 -
YIHENG DHG-9245A Desktop Forced Air Drying Oven Input Power 2450W
$ 863.00 -
HUITAI BPG-9920A Blast drying oven Volume 1000L with test hole 50mm
$ 3001.00
Features
High precision, effective, safe and wide range.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
Patent No.: ZL201230310211.7 / ZL201320059701.3
Function
Double-walled door design Multi-function control panel
Menzi adopts a double-layer thermal insulation design, which is more comfortable for experiments. Multi-function control panel, dedicated function key design
Exhaust holes Multi-layer space multi-layer partition design
Multi-functional exhaust hole design The spacing of the partitions can be adjusted, which is convenient for placing experimental items at different heights.
Comparison of parameters of WGL Forced Air Drying Oven series
| Model | WGL-30B/WGLL-30BE | WGL-45B/WGLL-45BE | WGL-65B/WGLL-65BE | WGL-125B/WGLL-125BE | WGL-230B/WGLL-230BE | WGL-625B/WGLL-625BE | |||||||
| manner | Dual air ducts force convection | ||||||||||||
| performance | Operating temperature range | RT+10～300℃ | |||||||||||
| Temperature resolution | 0.1℃ | ||||||||||||
| Temperature fluctuations | ±1 ℃ | ||||||||||||
| Temperature distribution accuracy | ±2.5% | ||||||||||||
| constitute | Built-in | Stainless steel plate | |||||||||||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||||||||||||
| Insulating materials | Aluminum silicate fiber | ||||||||||||
| heater | Stainless steel heating tubes | Stainless steel heating tubes | Stainless steel heating tubes | Stainless steel heating tubes | Nichrome heating wire | Stainless steel heating tubes | |||||||
| Rated power | 0.8KW | 1.2KW | 1.6KW | 2.3KW | 3KW | 5.0KW | |||||||
| Exhaust outlets | Inner diameter 28mm*1, top | Inner diameter 28mm*2, top | |||||||||||
| controller | Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | |||||||||||
| Temperature setting method | Tap the four buttons to set it | ||||||||||||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||||||||||||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||||||||||||
| timer | 0~9999 minutes (with timed waiting function) | ||||||||||||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||||||||||||
| Program mode | Matching | ||||||||||||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||||||||||||
| BE type speed control fan | Fixed-speed fan | ||||||||||||
| sensor | pt100 | ||||||||||||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||||||||||||
| specification | Inner dimensions (W*D*H mm) | 310*310*310 | 350*350*350 | 400*360*450 | 500*450*550 | 600*500*750 | 660*760*1250 | ||||||
| Dimensions (W*D*H mm) | 445*440*690 | 485*480*730 | 535*490*820 | 636*580*930 | 735*625*1220 | 900*960*1840 | |||||||
| Outer packing size (W*D*H mm) | 570*570*820 | 600*600*857 | 970*620*960 | 760*700*1060 | 898*814*1347 | 1051*1060*1949 | |||||||
| Content volume | 30L | 45L | 65L | 125L | 230L | 625L | |||||||
| The partition is load-bearing | 15kg | ||||||||||||
| Number of partition layers | 6 floors | 7 floors | 9 floors | 13 floors | 17 floors | 7 floors | |||||||
| Partition spacing | 35mm | 150mm | |||||||||||
| Power supply: (50/60Hz) rated current | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/10.5A | AC220V/13.6A | AC380V/7.6A | |||||||
| Net weight/gross weight kg | 37/32 | 37/43 | 43/49 | 60/66 | 84/100 | 113/137 | |||||||
| accessory | clapboard | 2 pcs | |||||||||||
| Partition shelves | 4 pcs | ||||||||||||
| 230/625 without speed control fan | |||||||||||||
| Addable configuration (WGLL type) | Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||||||||||||
TaiSiTe WGLL-230BE Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Convection mode | Double duct forced convection |
| Temperature range | RT+10~300℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1 ℃ |
| Temperature Uniformity | ±2.5% |
| Chamber material | stainless steel plate |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal Insulation | aluminum silicate fiber |
| Heating mode | Nickel chromium alloy heating wire |
| Input Power | 3Kw |
| Exhaust Port | Should 28mm * 2, top |
| Thermostat | LCD dual row PID |
| Temperature setting method | Tap the four-button setting |
| Temperature representation | Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display |
| Timer | 0~9999Min (with Timer waiting) |
| Operational Features | Fixed value operation, regular operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, constant speed fan, overlift preventer |
| Temperature sensor | pt100 |
| Safety Devices | Over-rise alarm, over-rise preventer |
| Interior size | 600*500*750mm |
| Dimensions | 735*625*1220mm |
| Packing size | 898*814*1347mm |
| Volume | 230L |
| Load per shelf | 15kg |
| Shelf (std.) | 17pcs |
| Shelf spacing | 35mm |
| Power supply Voltage | AC220V/13.6A |
| Net Weight | 84kg |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
| Gross Weight | 100Kg |
TaiSiTe WGLL-230BE Forced Air Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
