RDS 6 #3/8 "+ KHC.21 Mayer Rods + Drawdown Plate

Spreader Film thickness of 13.7 microns, suitable for different industries to do film experiments, Mayer Rods supporting the use of Drawdown Plate can effectively improve the film effect.

Brand

SKU: NB028951

RDS

Model

6# 3/8"+KHC.21

Get Quote

RDS shopSE

Information

Datasheet Video Catalog Manual

What else did others buy

Genuinegoods

RDS 6# 3/8"+KHC.21 Applicator rod setOverview
Specifications
Comments
FAQs

6# 3/8"+KHC.21

Applicator rod set

Spreader Film thickness of 13.7 microns, suitable for different industries to do film experiments, Mayer Rods supporting the use of Drawdown Plate can effectively improve the film effect.

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 1

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 2

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 3

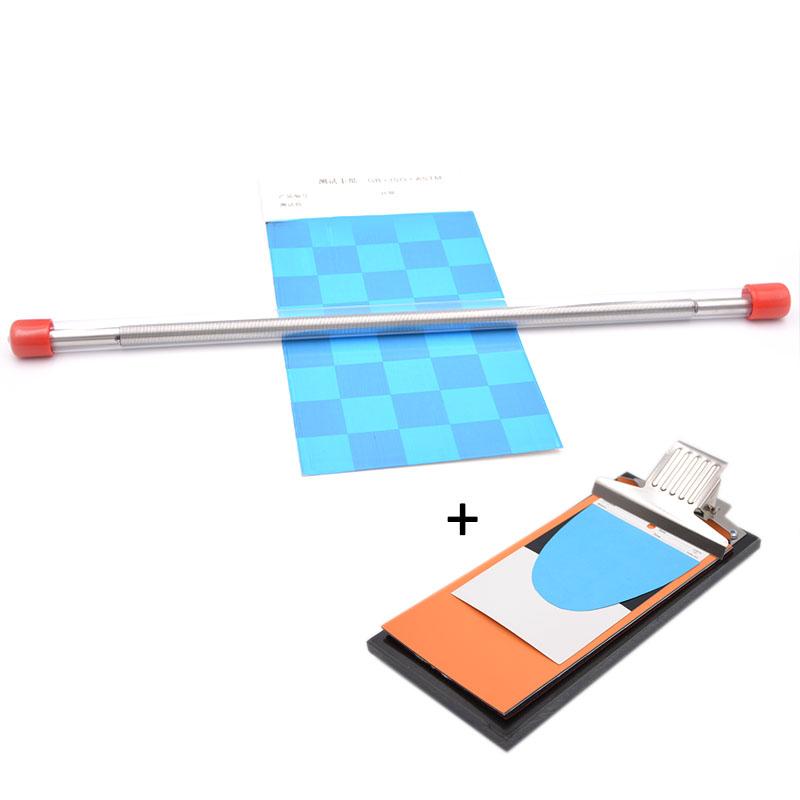

The RDS6# 3/8"+KHC.21 coating rod set consists of an RDS6 wire bar applicator and a rk stamping bed.

The RDS6 wire rod coater is a coating rod with a wet film thickness of 13.7 microns, and the length of the RDS wire rod coater is 40mm. At present, the forming wire rod coater has only 6.35mm diameter, while the winding type has three diameters: 9.5mm, 6.35mm and 12.7mm, and the more widely used is 9.35mm diameter.

RKThe embossing table consists of a clip, a rigid polyester sheet, and a layer of foam/rubber upholstery. Compared to proofing directly on a hard substrate, proofing on an RK imprint machine has better repeatability and proofing results. This is due to the fact that the soft foam/rubber liner can absorb the pressure applied by the operator to a certain extent, so as to make the proofing effect better.

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 4

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 6

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 7

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 11

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 12

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 13

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 14

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 15

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 16

Illustration of the RK imprint bed

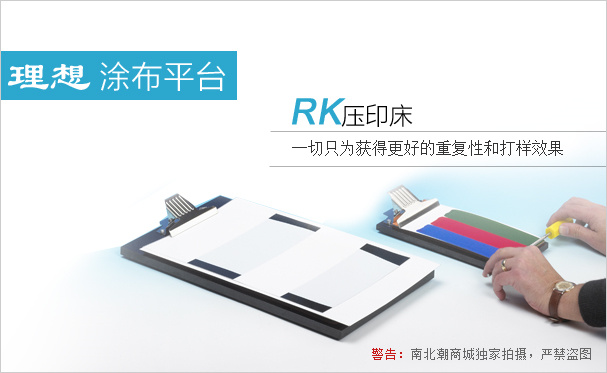

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 17

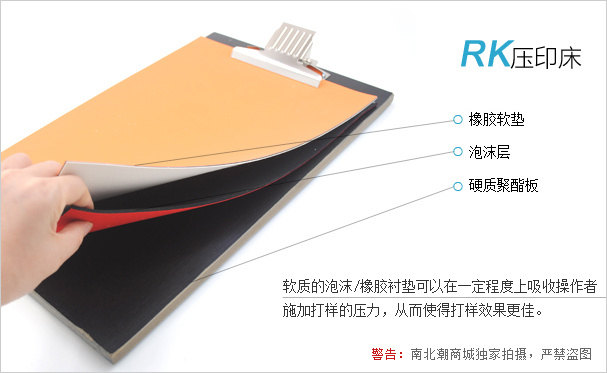

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 18

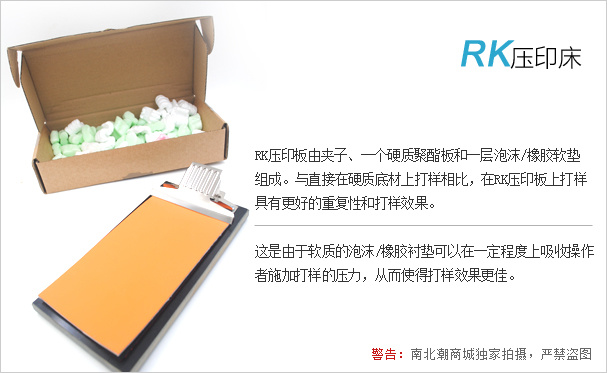

RDS 6# 3/8"+KHC.21 Coating Stick Set Details Figure 19

Optional

Note: Click on the accessory image to view the product details.

RDS 6# 3/8"+KHC.21 Applicator rod setSpecifications

LIST	VALUE
WFT	13.7μm
Production process	wire-wound
diameter	9.52mm
Total length	400mm
application width	300mm
Grip Width	50+50mm
material	stainless steel
Wire diameter	0.15mm
Drawdown Plate Model	KHC.21
Coating table size	24*34cm
Baseplate size	43024712mm
material	rigid polyester board + foam layer + rubber cushion
packing size	47626083mm
Net Weight	2.08kg

RDS 6# 3/8"+KHC.21 Applicator rod set Packing list

Stainless Steel Rod X1 Transparent Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Do you support customization? Such as wet film thickness and length?

[A]

Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
