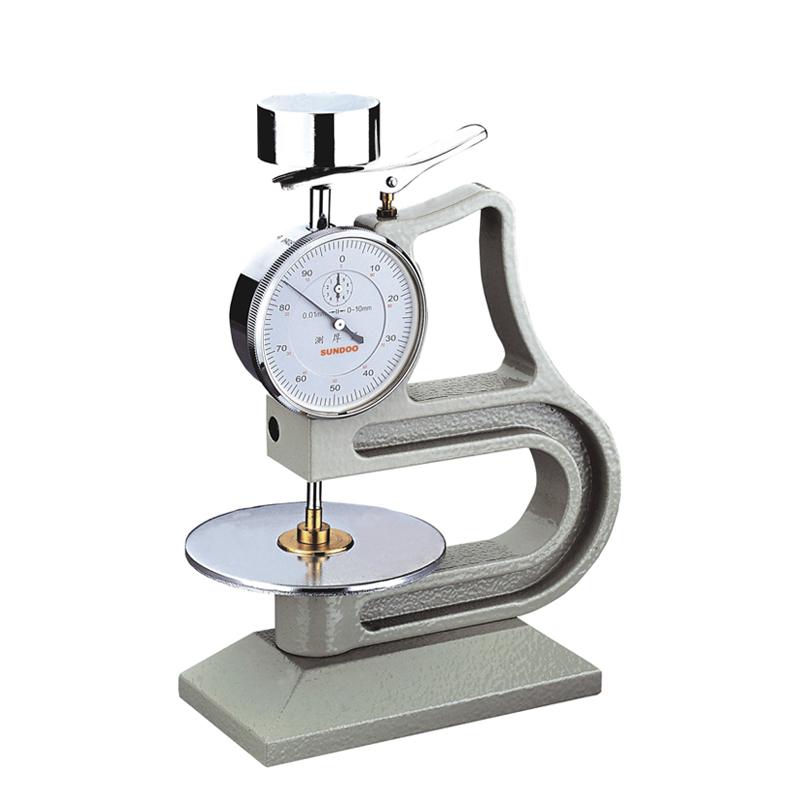

Sandu LP-10-C rubber multi-head Thickness Gauge, cable/rubber/soft insulation thickness measurement
LP-10-C rubber multi-head Thickness Gauge is a pointer rubber multi-head Thickness Gauge produced by Shandu. Measurement range of LP-10-C rubber multi-head Thickness Gauge is 0~10mm. LP-10-C rubber multi-head Thickness Gauge meets GB/T2951 standard.
SUNDOO
LP-10-C
-
LIULING CH-12.7-STSX Plastic film Benchtop thickness gauge
$ 490.00 -
LIULING CH-12.7-BTSX Benchtop digital emulsion thickness gauge 0~ 12.7mm
$ 490.00 -
LIULING CH-20 Benchtop Rubber Thickness Gauge Ø 4 Upper Probe
$ 459.00 -
LIULING CH-1-ST Plastic film thickness gauge 0~ 1mm
$ 257.00 -
PEACOCK Peacock G-6C Thickness Gauge Thickness Gauge
$ 288.00
Introduction to the LP-10-C Rubber Multihead Thickness Gauge
Shandu InstrumentsThe LP-10-C Rubber Multihead Thickness Gauge is an analogue Thickness Gauge that controls the measurement by means of a hammer load, with a simple structure and a detachable base.LP-10-C rubber multi-head Thickness Gauge can measure the thickness range of 0~10000μm, which is a mechanical measuring instrument dedicated to measuring the thickness of cables, soft insulation, wires and sheath materials, as well as the thickness of vulcanized rubber and plastic products.LP-10-C rubber multi-head Thickness Gauge instrument panel scale cleaning, the index value is 0.01mm.
LP-10-C Rubber Multihead Thickness Gauge Application Standard
1) GB/T2951.1-1997 "General Test Methods for Cable Insulation and Sheathing Materials, Part 1: General Test Methods, Section 1 Thickness and Dimension Measurement - Mechanical Property Test"
2) HG/T 2041-2009 "Technical Conditions for Rubber Thickness Gauges"

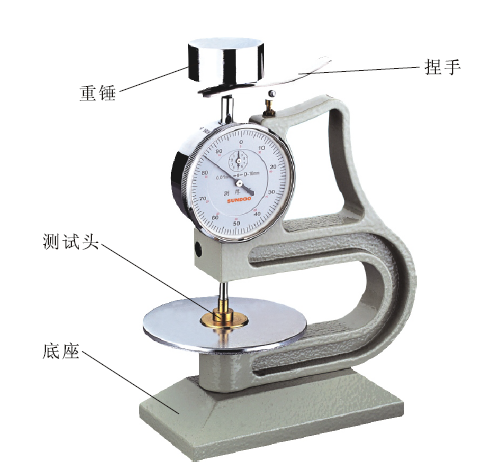

Structural diagram of LP-10-C rubber multi-head Thickness Gauge

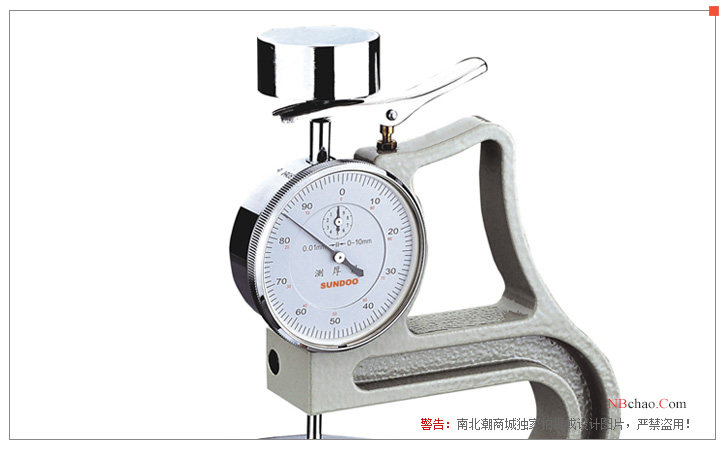

Illustration of the LP-10-C rubber multi-head Thickness Gauge
SUNDOO LP-10-C Thickness Gauge (rubber)Specifications
| LIST | VALUE |
|---|---|
| Measurement range | 0~10000μm |
| Measurement Accuracy | ±0.02mm |
| reading display | Pointer |
| Graduation | 0.01mm |
| upper probe diameter | Φ10mm、Φ5mm、Φ2mm、1mm x 4mm |
| Heavy hammer Mass | 10g、110g、130g |
| meet the standard | GB/T2951.1-1997、HG/T 2041-2009 |
| application | Measurement of cable, soft insulation, wire and sheath material thickness and vulcanized rubber and plastic products thickness |
SUNDOO LP-10-C Thickness Gauge (rubber) Packing list
Thickness gauge x1, weight x3, manual x1, warranty card x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
