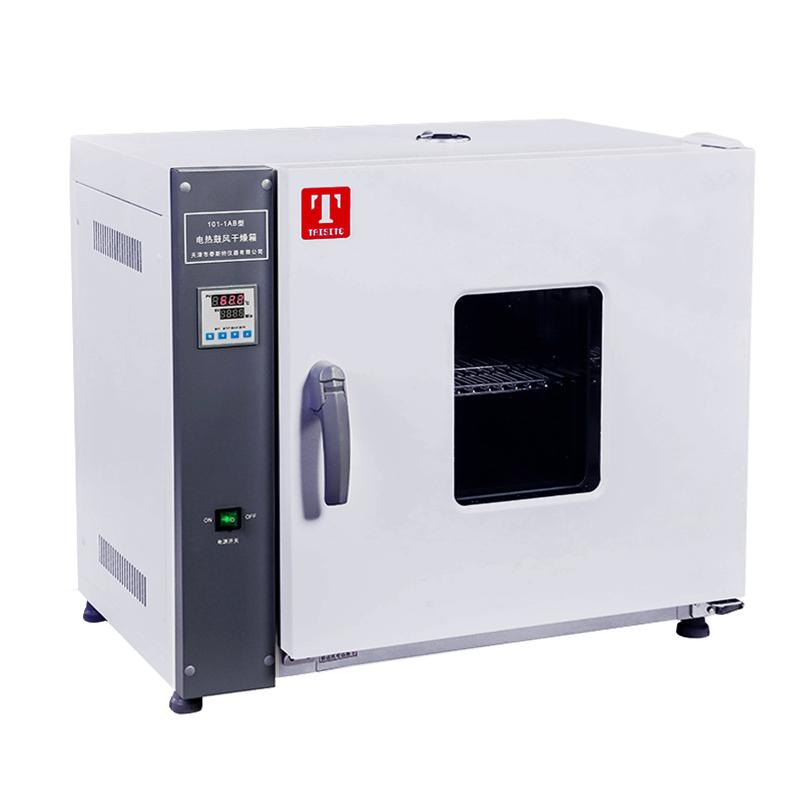

TAISITE 101-0AB Desktop Electric Forced Air Drying Oven 250 ℃/43L 101 Drying Oven

TAISITE 101-0AB Electric Forced Air Drying Oven adopts high-strength carbon steel plate material studio, volume is 43L, adopts digital tube double-row PID temperature control, Temperature range RT + 10~250 ℃, Temperature Fluctuation +/- 1.0 ℃, 101-0A heat insulation material Aluminum silicate fiber, heater stainless steel heating tube.

Brand

SKU: NB029022

TaiSiTe

Model

101-0AB

Service

TaiSiTe

Information

Datasheet Video Catalog Manual

What else did others buy

YIHENG BPZ-6210-2 Vacuum Oven

$ 7592.00
SANFA DHG-9202-1A electric thermostatic Drying Oven 300 ℃/70L stainless steel

$ 416.00
Kenton KH-35T digital electric air blowing dryer 250 ℃/42L

$ 588.00
YIHENG BPG-9140A Forced Air Drying Oven Input Power 1550W

$ 932.00
HUITAI HHG-9078A Laboratory high temperature oven volume 70L with test hole 50mm

$ 734.00

Genuinegoods

TaiSiTe 101-0AB Electric Forced Air Drying OvenOverview
Specifications
Comments
FAQs

101-0AB

Electric Forced Air Drying Oven

Features

The transverse air circulation structure is conducive to air mixing, high space utilization, and fast drying rate.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50 °C, and the long-term longevity operation.
Security:Over-lift alarm, menu lock.

Advantages

Figure 1:Multi-function control panel

Figure 2:Warming curve. Time is measured in minutes and temperature is measured in °C

Fig. 3: Exhaust holes: Multi-functional exhaust design

Parameter comparison

Model	Rated power	Content volume
101-0A/101-0AB	1.2KW	43L
101-1A/101-1AB	1.6KW	71L
101-2A/101-2AB	2.0KW	136L
101-3A/101-3AB	4KW	225L
Other parameters
manner	Side air ducts force convection
Operating temperature range	RT+10～250℃
Temperature resolution	0.1℃
Temperature fluctuations	±1.0℃
Temperature distribution accuracy	±2.5％
Built-in	B: Stainless steel plate None B: High-strength carbon steel plate
Exterior	Cold-rolled steel plate, surface resistance * quality coating
Insulating materials	Aluminum silicate fiber
Exhaust outlets	Inner diameter 28mm*2, rear, overhead test hole
Temperature control method	Digital tube double row PID
Temperature setting method	Tap the four buttons to set it
Temperature representation	Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
timer	0~9999 minutes (with timed waiting function)
Run the function	Fixed-value operation, timed operation, automatic stop
Program mode	Matching
Additional features	Deviation correction, menu key locking, power failure compensation, power failure memory
sensor	pt100
Safety devices	Overlift alarm
clapboard	2 pcs
Partition shelves	4 pcs
Configurations can be added	Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage

TaiSiTe 101-0AB Electric Forced Air Drying OvenSpecifications

LIST	VALUE
Temperature range	RT+10~250°C
Temperature Fluctuation	±1.0℃
Temperature Resolution	0.1℃
Temperature Uniformity	±2.5％
Volume	43L
Interior size	350350350mm
Chamber material	High strength carbon steel plate
Shelf (std.)	2pcs
Shelves (max)	9pcs
Load per shelf	15kg
Timer	0~9999Min (with Timer waiting)
Power	AC220V/5.5A 50/60Hz
Input Power	1.2Kw
Dimensions	652520580mm
Net Weight	33kg
Enclosure Material	Cold rolled steel plate, surface resistance painting
Thermal insulation material	aluminum silicate fiber
Heating mode	Stainless steel heating tube
Exhaust port	Inner diameter 28mm * 2, rear; overhead test hole
thermostat	Digital tube dual row PID
Temperature setting	Tap the four-button settings
Temperature representation	Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Run function	Fixed value operation, Timer operation, automatic stop
Program Mode	optional
Additional features	Deviation correction, menu button lock, power outage compensation, power outage memory
Temperature sensor	pt100
Packing size	775595709mm
Shelf spacing	25mm
Gross Weight	43Kg
Shelf (std.)	4pcs
Optional accessories	Shelf, RS485 interface, printer, recorder, external communication, remote control, programmed temperature control, wireless SMS alarm, U disk data storage

TaiSiTe 101-0AB Electric Forced Air Drying Oven Packing list

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
