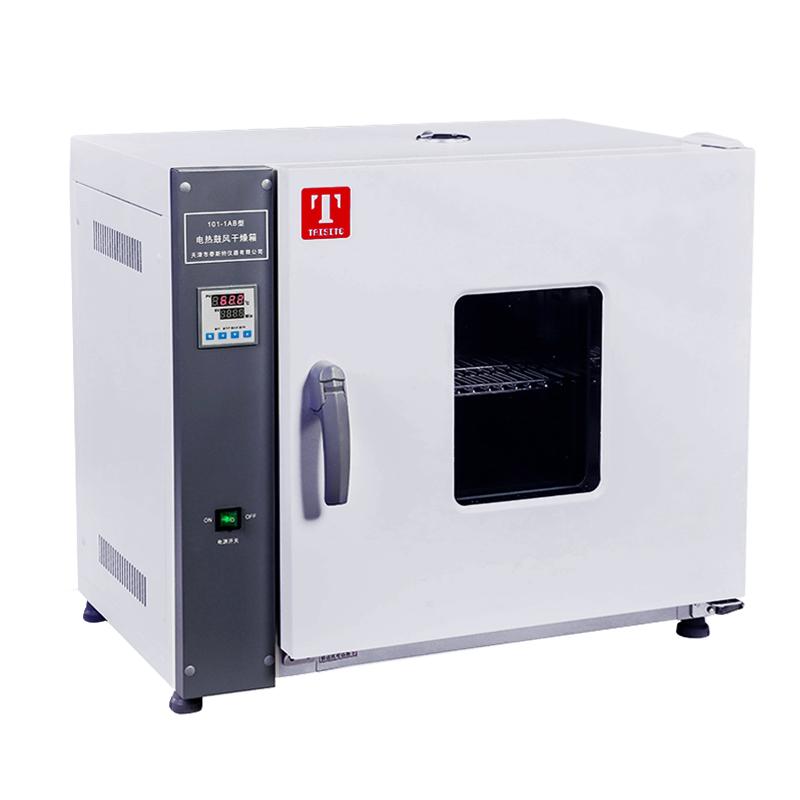

TaiSiTe 101-3A Electric Forced Air Drying Oven

TAISITE 101-3A Desktop electric blast oven 225L

TAISITE 101-3A electric blast oven is made of stainless steel, using nickel-chromium alloy heating wire, Temperature range is RT + 10~250 ℃, Interior size of 101-3A is 600 * 500 * 750mm, with 21 layers of Shelf, each Shelf bearing 15kg.

Brand

SKU: NB029028

TaiSiTe

Model

101-3A

Service

TaiSiTe

Information

Datasheet Catalog Manual

What else did others buy

SANFA HP-030A Drying Oven/Incubator (dual-use)

$ 453.00
BENTING CBGL-1000B Electric Forced Air Drying Oven 300 ℃/1000L

$ 4548.00
YIHENG DHG-9070A Desktop Forced Air Drying Oven capacity is 80L Power 1550W

$ 532.00
Kenton KH-75A laboratory electric air blowing dryer 225L with independent temperature limiter

$ 534.00
Kenton DZF-6020 constant temperature vacuum Drying Oven, cold rolled plate liner

$ 500.00

Genuinegoods

TaiSiTe 101-3A Electric Forced Air Drying OvenOverview
Specifications
Comments
FAQs

101-3A

Electric Forced Air Drying Oven

Features

The transverse air circulation structure is conducive to air mixing, high space utilization, and fast drying rate.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50 °C, and the long-term longevity operation.
Security:Over-lift alarm, menu lock.

Advantages:

Figure 1:Multi-function control panel

Figure 2:Warming curve. Time is measured in minutes and temperature is measured in °C

Fig. 3: Exhaust holes: Multi-functional exhaust design

Parameter comparison

Model	Rated power	Content volume
101-0A/101-0AB	1.2KW	43L
101-1A/101-1AB	1.6KW	71L
101-2A/101-2AB	2.0KW	136L
101-3A/101-3AB	4KW	225L
Other parameters
manner	Side air ducts force convection
Operating temperature range	RT+10～250℃
Temperature resolution	0.1℃
Temperature fluctuations	±1.0℃
Temperature distribution accuracy	±2.5％
Built-in	B: Stainless steel plate None B: High-strength carbon steel plate
Exterior	Cold-rolled steel plate, surface resistance * quality coating
Insulating materials	Aluminum silicate fiber
Exhaust outlets	Inner diameter 28mm*2, rear, overhead test hole
Temperature control method	Digital tube double row PID
Temperature setting method	Tap the four buttons to set it
Temperature representation	Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
timer	0~9999 minutes (with timed waiting function)
Run the function	Fixed-value operation, timed operation, automatic stop
Program mode	Matching
Additional features	Deviation correction, menu key locking, power failure compensation, power failure memory
sensor	pt100
Safety devices	Overlift alarm
clapboard	2 pcs
Partition shelves	4 pcs
Configurations can be added	Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage

TaiSiTe 101-3A Electric Forced Air Drying OvenSpecifications

LIST	VALUE
Temperature range	RT+10~250℃
Temperature Fluctuation	±1.0℃
Temperature Resolution	0.1℃
Temperature Uniformity	±2.5％
Volume	225L
Interior size	600500750mm
Chamber material	stainless steel plate
Shelf (std.)	2pcs
Shelves (max)	21pcs
Load per shelf	15kg
Timer	0~9999Min (with Timer waiting)
Power supply Voltage	AC220V/18.2A 50/60Hz
Input Power	4Kw
Dimensions	860623985mm
Net Weight	77kg
Enclosure Material	Cold rolled steel plate, surface resistance painting
Thermal Insulation	aluminum silicate fiber
Heating mode	Nickel chromium alloy heating wire
Exhaust Port	Inner diameter 28mm * 2, rear; top test hole
Thermostat	Digital tube double row PID
Temperature setting method	Tap the four-button setting
Temperature representation	Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Operational Features	Fixed value operation, regular operation, automatic stop
Program Mode	optional
Additional features	Deviation correction, menu button lock, power failure compensation, power failure memory
Temperature sensor	pt100
Packing size	10208041102mm
Shelf spacing	25mm
Gross Weight	95Kg
Shelf (std.)	4pcs
Optional accessories	Shelf, RS485 interface, printer, recorder, external communication, remote control, programmed temperature control, wireless SMS alarm, U disk data storage

TaiSiTe 101-3A Electric Forced Air Drying Oven Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
