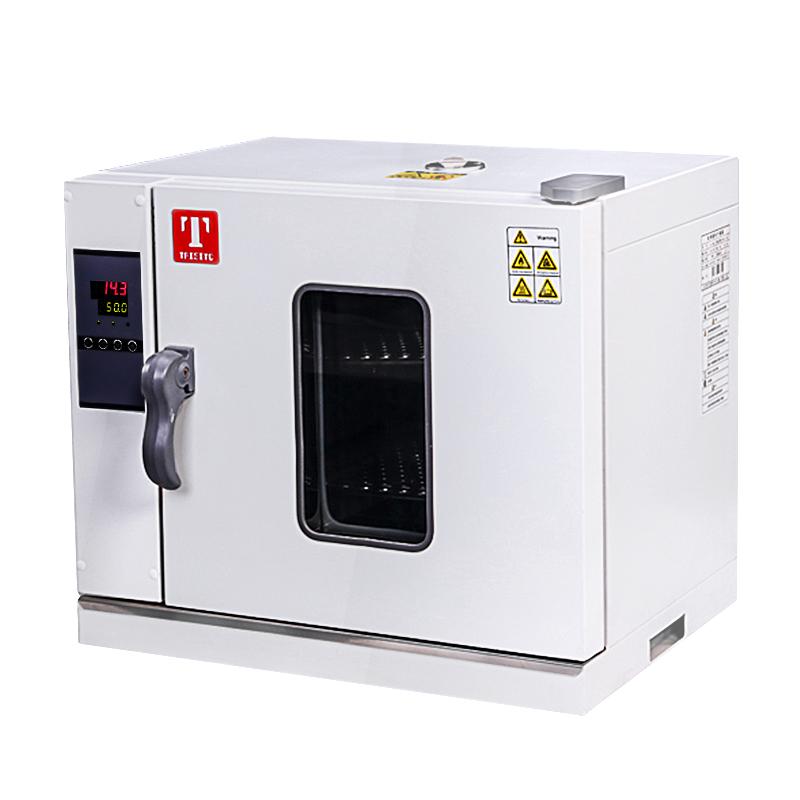

TAISITE 101-1D Electric Forced Air Drying Oven 250 ℃/71L

TAISITE 101-1D Electric Forced Air Drying Oven is a laboratory blast oven made of stainless steel liner, temperature control up to 250 ℃, volume is 71L, 101-1D is equipped with over-rise alarm function, with heating Linear dispersion diagram display, the heating device is stainless steel heating tube.

Brand

SKU: NB029032

TaiSiTe

Model

101-1D

Service

TaiSiTe

Information

Datasheet Catalog Manual

What else did others buy

Genuinegoods

TaiSiTe 101-1D Electric Forced Air Drying OvenOverview
Specifications
Comments
FAQs

101-1D

Electric Forced Air Drying Oven

Features

The transverse air circulation structure is conducive to air mixing, high space utilization, and fast drying rate.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50 °C, and the long-term longevity operation.
Security:Over-lift alarm, menu lock.

Advantages:

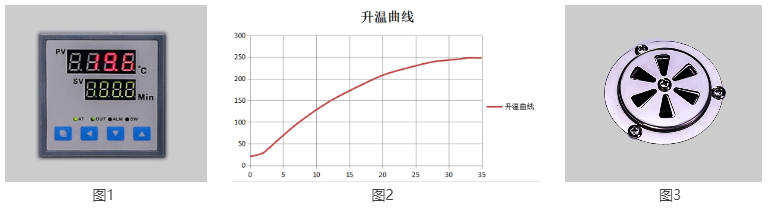

Figure 1:Multi-function control panel

Figure 2:Warming curve. Time is measured in minutes and temperature is measured in °C

Fig. 3: Exhaust holes: Multi-functional exhaust design

Parameter comparison

Model	Rated power	Content volume
101-0D/101-0DB	1.2KW	43L
101-1D/101-1DB	1.6KW	71L
101-2D/101-2DB	2.0KW	136L
101-3D/101-3DB	3KW	225L
Other parameters
Convection mode	Side air ducts force convection
Operating temperature range	RT+10～250℃
Temperature resolution	0.1℃
Temperature fluctuations	±1.0℃
Temperature distribution accuracy	±2.5％
Built-in	B: Stainless steel plate None B: High-strength carbon steel plate
Exterior	Cold-rolled steel plate, surface resistance * quality coating
Insulating materials	Aluminum silicate fiber
heater	Stainless steel heating tubes
Exhaust outlets	Inner diameter 28mm*1, overhead test hole
Temperature control method	Digital tube double row PID
Temperature setting method	Tap the four buttons to set it
Temperature representation	Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
timer	0~9999 minutes (with timed waiting function)
Run the function	Fixed-value operation, timed operation, automatic stop
Program mode	Matching
Additional features	Deviation correction, menu key locking, power failure compensation, power failure memory
sensor	pt100
Safety devices	Overlift alarm

TaiSiTe 101-1D Electric Forced Air Drying OvenSpecifications

LIST	VALUE
Temperature range	RT+10~250℃
Temperature Fluctuation	±1.0℃
Temperature Resolution	0.1℃
Temperature Uniformity	±2.5％
Volume	71L
Interior size	450350450mm
Chamber material	stainless steel plate
Shelf (std.)	2pcs
Shelves (max)	13pcs
Load per shelf	15kg
Timer	0~9999Min (with Timer waiting)
Power supply Voltage	AC220V/7.3A 50/60Hz
Input Power	1.6Kw
Dimensions	730463670mm
Net Weight	45kg
Enclosure Material	Cold rolled steel plate, surface resistance painting
Thermal Insulation	aluminum silicate fiber
Heating mode	Stainless steel heating pipe
Exhaust Port	Should 28mm * 1, top
Thermostat	Digital tube double row PID
Temperature setting method	Tap the four-button setting
Temperature representation	Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Operational Features	Fixed value operation, regular operation, automatic stop
Program Mode	optional
Additional features	Deviation correction, menu button lock, power failure compensation, power failure memory
Temperature sensor	pt100
Packing size	878598840mm
Shelf spacing	25mm
Gross Weight	50Kg
Safety Devices	Over-rise alarm

TaiSiTe 101-1D Electric Forced Air Drying Oven Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
