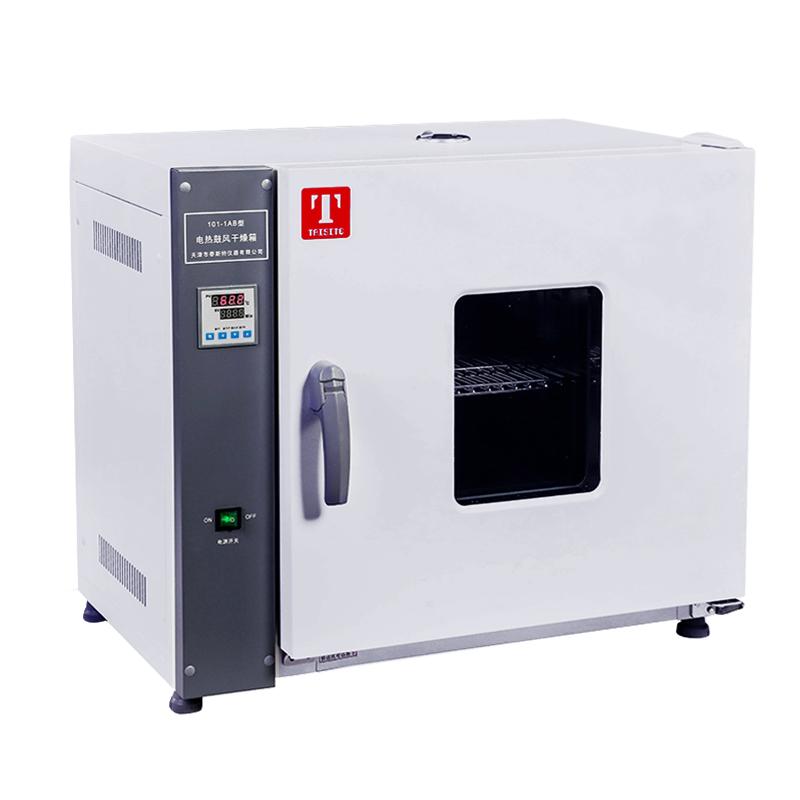

TAISITE 202-1AB horizontal thermostatic Drying Oven
TaiSiTe
202-1AB
-
Kenton DHG-9230C Precision digital display thermostatic drying oven 230L
$ 764.00 -
YIHENG GRX-9123A Desktop Dry Heat Sterilizer Power is 1550W
$ 808.00 -
RONGHUA DZF-6020 Vacuum Oven 25L
$ 509.00 -
Kenton KH-120C digital display industrial air drying oven galvanized liner with timing
$ 1101.00 -
HUITAI DHG-9055A high temperature blast oven volume 50L temperature control 300 ℃ with test hole 50mm
$ 480.00
Features
1. The shell is formed by good cold-rolled steel plateThe surface is treated by a spraying process and used in the studioStainless steel or cold-rolled steel plate is processed and formed, and it is guardedRotting process treatment
2. The intelligent thermostat adopts P|D control programDual digital display, with timing function, temperature control fineTrue.
3. The middle of the door is equipped with double-layer tempered glass for observationwindow, which allows you to observe the heated items in the studio at any timesituation
4. The door is sealed with silicone rubber strips, and the sealing effect is good.
Classic natural convection drying.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Security –Over-lift alarm, menu lock.
apply
For drying, baking, and heat treatment
Serial models
| Model | Rated power | Content volume | Number of partition layers |
| 202-0A/AB | 1.2KW | 43L | 9 floors |
| 202-1A/AB | 1.6KW | 71L | 13 floors |
| 202-2A/AB | 2.0KW | 136L | 17 floors |
| 202-3A/AB | 4KW | 225L | 21 floors |
| Other parameters | |||
| manner | Natural convection | ||
| Operating temperature range | RT+10～250℃ | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | ±1.0℃ | ||
| Temperature distribution accuracy | ±3.5％ | ||
| Built-in | B: Stainless steel plate None B: High-strength carbon steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| heater | Nichrome heating wire OCr27A17Mo2 | ||
| Exhaust outlets | Inner diameter 28mm*2, rear, overhead test hole | ||
| Temperature control method | Digital tube double row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Matching | ||
| Additional features | Deviation correction, menu key locking, power failure compensation, power failure memory | ||
| sensor | pt100 | ||
| Safety devices | Overlift alarm | ||
| power supply | AC 220V | ||
| clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | ||
| Configurations can be added | Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||
TaiSiTe 202-1AB Electric thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Convection mode | Natural convection |
| Temperature range | RT+10~250°C |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Uniformity | ±3.5％ |
| Chamber material | stainless steel plate |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Nickel-chromium alloy heating wire OCr27A17Mo2 |
| Input Power | 1.6Kw |
| Exhaust port | Inner diameter 28mm * 2, rear; overhead test hole |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display |
| Timer | 0~9999Min (with Timer waiting) |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Temperature sensor | pt100 |
| Safety Devices | Overrise alarm |
| Interior size | 500*350*450mm |
| Dimensions | 752*520*680mm |
| Packing size | 875*595*812mm |
| Volume | 71L |
| Load per shelf | 15kg |
| Shelf (std.) | 13pcs |
| Shelf spacing | 25mm |
| Power | AC220V/7.3A 50/60Hz rated current |
| Net Weight | 40kg |
| Gross Weight | 50Kg |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe 202-1AB Electric thermostatic Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
