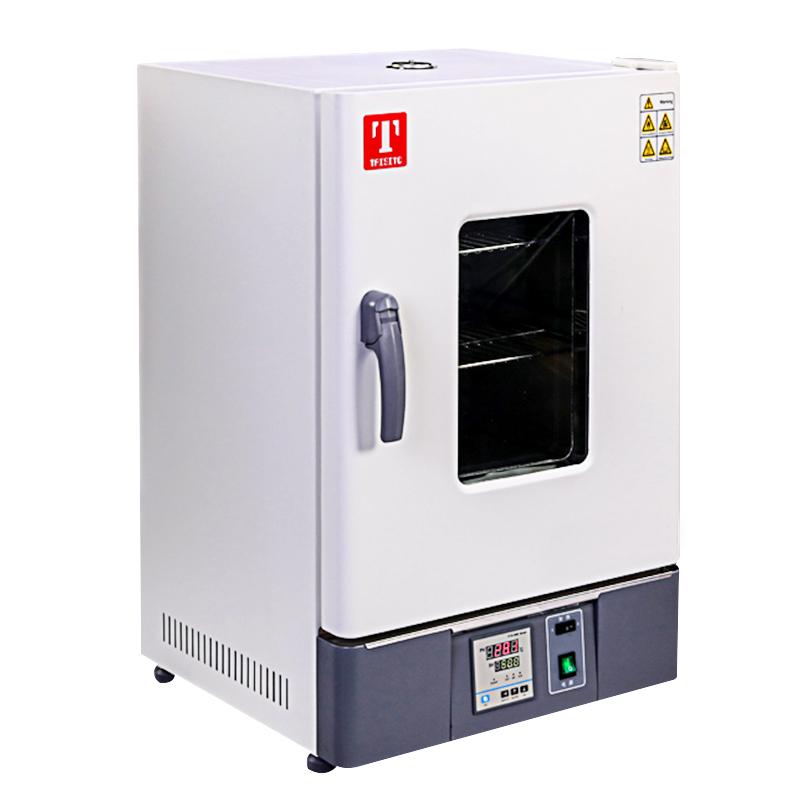

TAISITE WHL-125B Experimental electric thermostatic Drying Oven
TAISITE experimental electric thermostatic Drying Oven WHL-125B has a temperature control of 300 degrees Celsius, an inner volume of 125L, Interior size 500 * 450 * 550mm, WHL-125B can realize over-rise alarm, deviation correction, and menu locking.
TaiSiTe
WHL-125B
-
HUITAI HHG-9078A Laboratory high temperature oven volume 70L with test hole 50mm
$ 734.00 -
YIHENG DZF-6012 Desktop Vacuum Oven Temperature range: RT + 10~200 ℃
$ 456.00 -
BENTING C202-2AB electric thermostatic Drying Oven 250 ℃/136L
Login -
BOZHEN DZF-6050 Vacuum Oven
$ 711.00 -
SANFA DHG-9202-1 Electric thermostatic Drying Oven 300 ℃/70L
$ 377.00
Benefits:
Advantages: High precision, effectiveness, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Detail design advantages
Figure 1, double-layer insulation door design: Menzi adopts double-layer thermal insulation design, which is more comfortable for experiments.
Fig. 2, multi-function control panel: vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Fig. 3, exhaust hole: multi-functional exhaust hole design
Fig. 4, multi-layer space multi-layer partition design: the partition spacing can be adjusted, which is convenient for placing experimental items of different heights.
Parameter comparison
| Model | Rated power | Content volume | |
| WHL-30B/WHLL-30BE | 0.8KW | 30L | |
| WHL-45B/WHLL-45BE | 1.0KW | 45L | |
| WHL-65B/WHLL-65BE | 1.5KW | 65L | |
| WHL-125B/WHLL-125BE | 2.5KW | 125L | |
| Other parameters | |||
| Convection mode | Natural convection | ||
| Operating temperature range | RT+10～300℃ | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | ±1.0℃ | ||
| Temperature distribution accuracy | ±3.5％ | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| heater | Nichrome heating wire OCr27A17Mo2 | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | ||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Matching | ||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| power supply | AC220V/3.6A 50/60Hz | ||
TaiSiTe WHL-125B Electric thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300°C |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±3.5％ |
| Volume | 125L |
| Interior size | 500*450*550mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 13pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/11.4A 50/60Hz |
| Input Power | 2.5Kw |
| Dimensions | 636*580*930mm |
| Net Weight | 60kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Nickel-chromium alloy heating wire OCr27A17Mo2 |
| Exhaust port | Inner diameter 28mm * 2, top |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Temperature sensor | pt100 |
| Packing size | 760*700*1060mm |
| Shelf spacing | 35mm |
| Gross Weight | 66Kg |
| Safety Devices | Overrise alarm |
| Convection mode | Natural convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe WHL-125B Electric thermostatic Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
