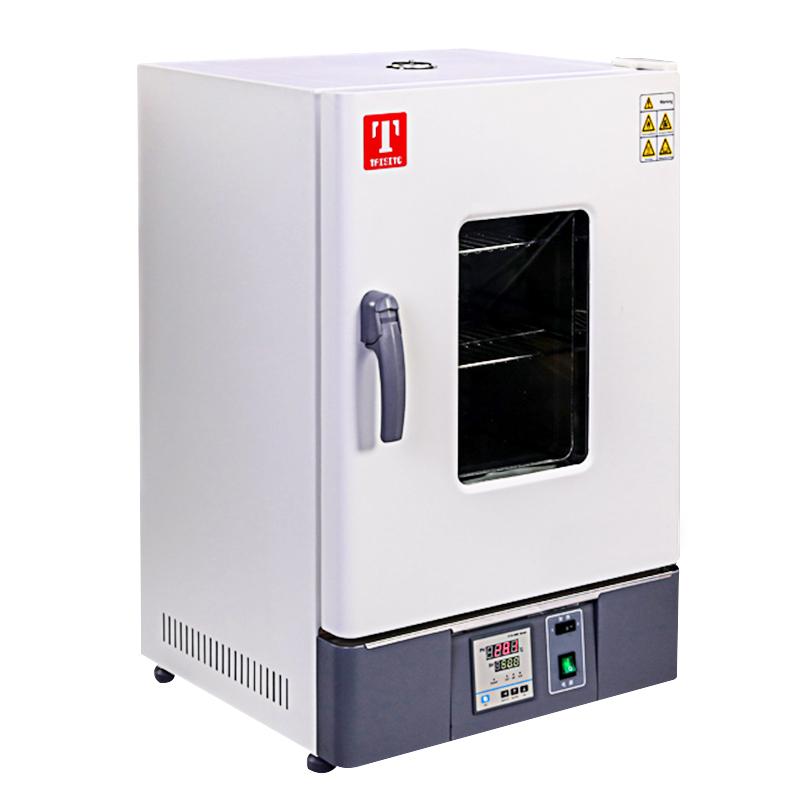

TAISITE WHLL-65BE Vertical electric thermostatic Drying Oven functional type
TAISITE thermostatic Drying Oven WHLL-65BE is 65L liner volume, material is stainless steel, heating device for nickel-chromium alloy heating wire, WHLL-65BE has over-rise prevention device, using liquid crystal dual-column PID temperature control, is a high temperature thermostatic Drying Oven.
TaiSiTe
WHLL-65BE
-
BOZHEN DHG-9030A vertical Forced Air Drying Oven
$ 371.00 -
HUITAI HHG-9148A High temperature electric blast dryer, volume 140L with test hole 50mm
$ 1139.00 -
HUITAI DZF-6050 Vacuum Oven 2 stencils, volume 50L with inert gas intake valve
$ 725.00 -
YIHENG DZF-6055 Vacuum Oven
$ 874.00 -
YIHENG BPZ-6033LCB Vacuum Oven imported Vacuumpump
$ 3174.00
Benefits:
Advantages: High precision, effectiveness, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Design advantages
Figure 1, double-layer insulation door design: Menzi adopts double-layer thermal insulation design, which is more comfortable for experiments.
Fig. 2, multi-function control panel: vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Fig. 3, exhaust hole: multi-functional exhaust hole design
Fig. 4, multi-layer space multi-layer partition design: the partition spacing can be adjusted, which is convenient for placing experimental items of different heights.
Parameter comparison
| Model | Rated power | Content volume | |
| WHL-30B/WHLL-30BE | 0.8KW | 30L | |
| WHL-45B/WHLL-45BE | 1.0KW | 45L | |
| WHL-65B/WHLL-65BE | 1.5KW | 65L | |
| WHL-125B/WHLL-125BE | 2.5KW | 125L | |
| Other parameters | |||
| Convection mode | Natural convection | ||
| Operating temperature range | RT+10～300℃ | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | ±1.0℃ | ||
| Temperature distribution accuracy | ±3.5％ | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| heater | Nichrome heating wire OCr27A17Mo2 | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | ||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Matching | ||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| power supply | AC220V/3.6A 50/60Hz | ||
TaiSiTe WHLL-65BE Electric thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300℃ |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±3.5％ |
| Volume | 65L |
| Interior size | 400*360*450mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 9pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power supply Voltage | AC220V/6.8A 50/60Hz |
| Input Power | 1.5Kw |
| Dimensions | 535*490*820mm |
| Net Weight | 43kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal Insulation | aluminum silicate fiber |
| Heating mode | Nickel chromium alloy heating wire OCr27A17Mo2 |
| Exhaust Port | Should 28mm * 1, top |
| Thermostat | LCD dual row PID |
| Temperature setting method | Tap the four-button setting |
| Temperature representation | Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display |
| Operational Features | Fixed value operation, regular operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, over-rise preventer |
| Temperature sensor | pt100 |
| Packing size | 670*620*960mm |
| Shelf spacing | 35mm |
| Gross Weight | 49Kg |
| Safety Devices | Over-rise alarm, over-rise preventer |
| Convection mode | Natural convection |
| Shelf (std.) | 2pcs |
| Shelf | 4 pieces |
TaiSiTe WHLL-65BE Electric thermostatic Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
