TAISITE DH209L Electric heated incubators of constant temperature 65 ℃/209L

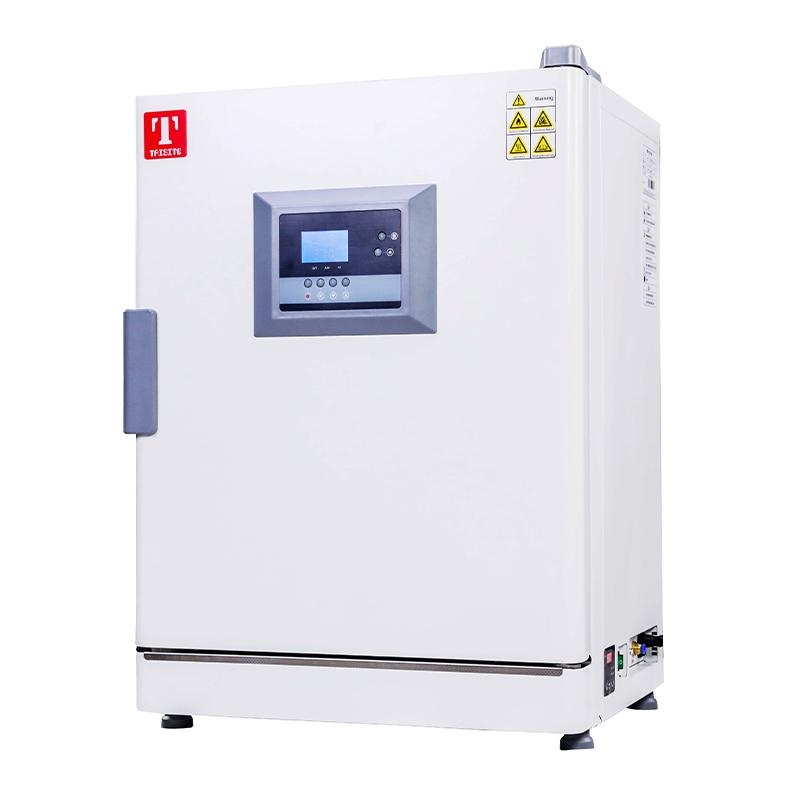

TAISITE Electric heated incubators of constant temperature DH209L is a high-end incubator with a studio volume of 209L and a size of 600 * 580 * 600mm. DH209L has designed a Glass inner door structure, which is standard with ultraviolet sterilization and anti-excessive rise function.
TaiSiTe
DH209L
-
YIHENG LRH-150CA Refrigerated Incubator 150L/1700W
$ 2737.00 -
RONGHUA DNP-9082-1 electrothermal Thermostatic Incubator
$ 361.00 -
SANFA LHP-400E Constant Temperature and Humidity Incubator 400L
$ 2662.00 -
YIHENG MGC-100P experimental light chamber programmable 150L/single-sided lighting
$ 1967.00 -
SANFA MHP-500E Mold Incubator touch 500L
$ 3422.00
product advantages
Using the Heating Plate heating method, the temperature distribution is more uniform.
Mirror stainless steel liner, easy to clean and maintain.
Highly equipped with lighting, ultraviolet sterilization, overheating prevention, air filling port and other equipment to meet various needs of customers.
The outer door is sprayed with carbon steel plate, and the inner door is tempered glass, which is convenient for checking the experimental status at any time.
Convenient operation, fixed value operation, timing operation, automatic stop.
Dedicated function keys for temperature setting.
Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
Pull-out partition for easy access to samples.
Patented glass inner door structure, easy to open and close, comfortable to touch.
Safety: over-temperature alarm, overheating preventer.
Advantages of detailed design
Figure 1. Safety glass observation door: a glass door with independent switch is set for easy observation
Figure 2. Heating curve: time unit: minute, temperature unit: ℃
Figure 3. Multi-function control panel
DH series
| model | rated power | Internal volume |
| DH43D/L | 0.25KW | 43L |
| DH49D/L | 0.25KW | 49L |
| DH124D/L | 0.5KW | 124L |
| DH209D/L | 0.6KW | 209L |
| Other parameters | ||
| Way | Natural convection | |
| Operating temperature range | RT+5～65℃ | |
| temperature resolution | 0.1°C | |
| temperature fluctuation | ±0.5℃ | |
| Temperature distribution accuracy | ±1℃ | |
| Interior | mirror stainless steel | |
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | |
| Insulation material | rubber sponge | |
| heater | Heating pipe | |
| exhaust vent | Inner diameter 28mm*1, top | |
| temperature control method | PIDs | |
| temperature setting method | Touch four buttons to set | |
| Temperature representation | D type: measured temperature display: 4-digit upper display; set temperature display: 4-digit lower display | |
| L type: measured temperature display: liquid crystal display; set temperature display: liquid crystal display | ||
| timer | 0~9999 minutes (or hours) | |
| running function | Fixed value operation, timing operation, automatic stop | |
| program mode | D: None; L: Optional | |
| Additional features | Deviation correction, menu key lock, power failure memory | |
| sensor | pt100 | |
| safety devices | Over-temperature alarm, overheating preventer | |
| Partition | 2 pieces | |
| shelf | 4 pieces | |
| Standard configuration | L: Sterilization, lighting, overheating prevention, 485 interface, inflation interface | |
| configuration can be added | L: partition, USB interface, printer, Recorder, external communication, remote control, program temperature controller, wireless SMS alarm | |
TaiSiTe DH209L Electric heated incubators of constant temperatureSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+5~65℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±1℃ |
| Volume | 209L |
| Liner size | 600*580*600mm |
| Liner material | Mirror stainless steel |
| Shelf (std.) | 2pcs |
| Shelf (max.) | 14pcs |
| Load per shelf | 15kg |
| Timer | 0 ~ 9999min （ h ） |
| Power | AC 220V/2.7A 50/60Hz |
| Input Power | 0.6kw |
| Dimensions | 750*705*865mm |
| Net Weight | 62kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal Insulation | Rubber sponge |
| Heating device | Heating pipe |
| Exhaust Port | Inner diameter 28mm * 1, top |
| Temperature control mode | PID |
| Temperature setting | Tap the four-button setting |
| Temperature representation | Measuring temperature display: liquid crystal display, setting temperature display: liquid crystal display |
| Operational Features | Fixed value operation, regular operation, automatic stop |
| Program control function | optional |
| Additional features | Deviation correction, menu button lock, power failure memory |
| Temperature transducer | pt100 |
| Packing size | 955*855*1080mm |
| Shelf spacing | 35mm |
| Gross Weight | 67kg |
| Safety Devices | Over-temperature alarm, over-rise preventer |
| Thermostatic mode | Natural convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe DH209L Electric heated incubators of constant temperature Packing list
Host X1, operation manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
